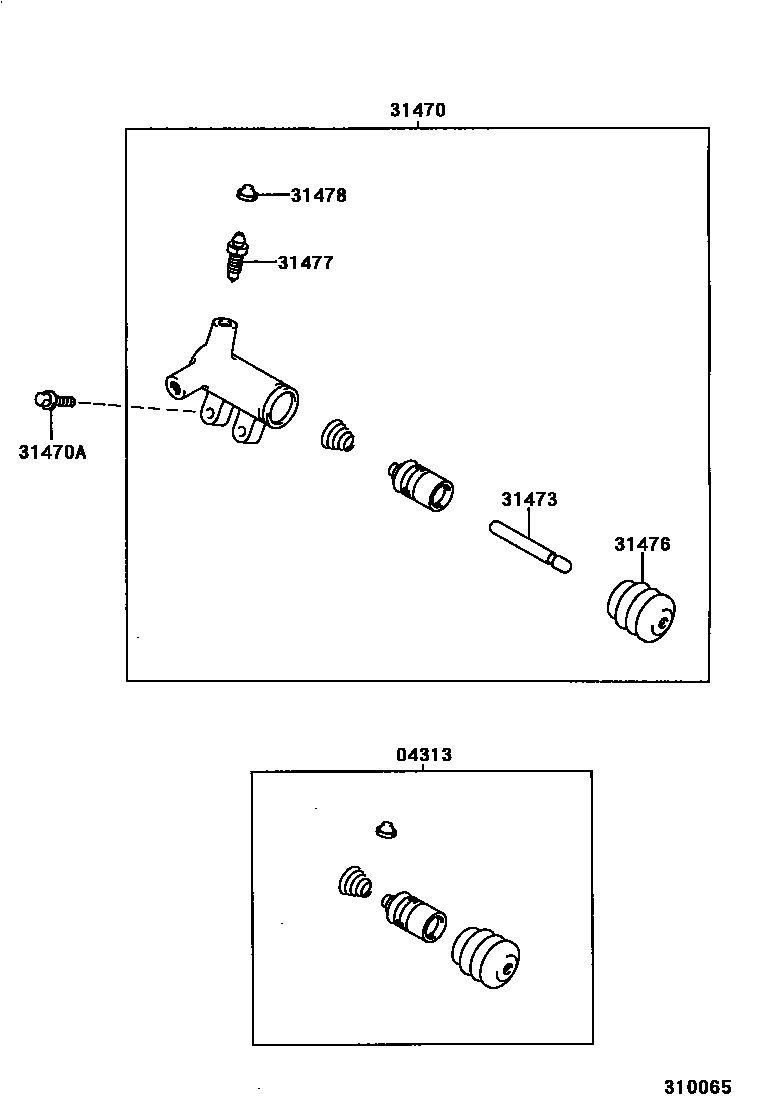

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCT210,211,215..5F199608-200112

main04313-17020iST215..5F199608-200112

main04313-22030iAT21#..MTM199608-200112

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12093iAT21#..MTM199608-200112

main31470-20210iST215..5F199608-200112

main31470-32022iCT210,211,215..5F199608-200112

sub31470-32023

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT21#,CT215..MTM199608-200112

main91611-60825iCT210,211,ST215..5F199608-200108

sub91611-B0825

main91611-B0825iCT211,ST215..5F200108-200112

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCT210,211,215,ST215..5F199608-200112

main31473-32010iAT21#..MTM199608-200112

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT21#,CT210,211,215,ST215..MTM199608-200112

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAT21#,CT210,211,215,ST215..MTM199608-200112

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iAT21#..MTM199608-200112

main31478-30010iAT21#..MTM199608-200112

7 parts on this diagram · 3 diagrams in section
