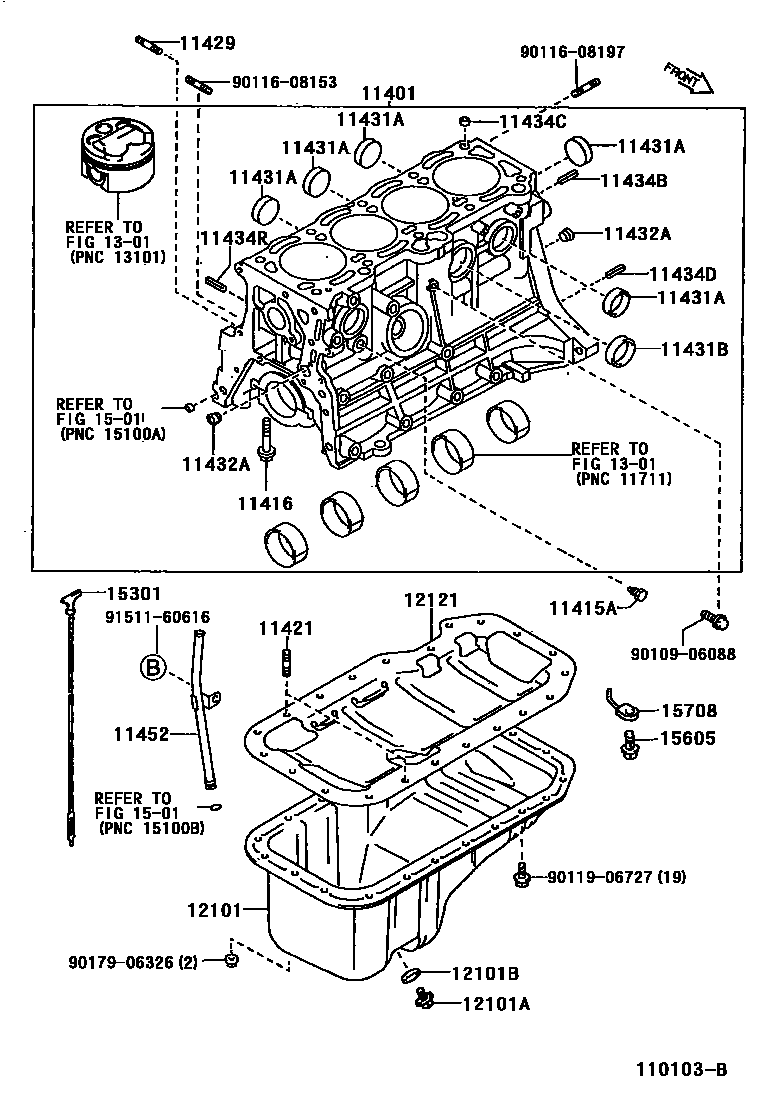

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09180i5AFE..AT212199811

main11401-19685i5AFE..AT212199608-199811

main11401-19725i7AFE..AT211199608

main11401-69615i2CT..CT210199608-199704

main11401-69616i2CT..CT210199704-199808

sub11401-69617

sub11381-64020

sub11701-27011

main11401-69685i2CT..CT215199608-199704

main11401-69686i2CT..CT215199704-199808

sub11401-69687

sub11381-64020

sub11701-27011

main11401-69735i3CTE..CT216199808-199812

sub11381-64020

sub11701-27011

main11401-69736i3CTE..CT216199812-199908

main11401-69737i3CTE..CT216199908-200011

main11401-69738i3CTE..CT216200011

main11401-69795i3CTE..CT211199808-199812

sub11381-64020

sub11701-27011

main11401-69796i3CTE..CT211199812-199908

main11401-69797i3CTE..CT211199908-200011

main11401-69798i3CTE..CT211200011

main11401-79795i3SFE..ST215199608-199709

main11401-80001i4AGE..AT210199608

main11401-80015i3SFE..ST215199709

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i3SFE..ST215199805

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE..ST215199608-199805

main90345-52003i4AGE,5AFE,7AFE..AT21#199608

main90910-09087i3SFE..ST215199805

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i4AGE,5AFE,7AFE..AT21#199608

main90105-10028×10i3SFE..ST215199608

main90910-02061×10i2CT,3CTE..CT21#199608-199812

main90910-02135×10i3CTE..CT21#199812

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i3SFE..ST215199608-199709

main92122-60610×2i3SFE..ST215199709

11429BOLT, STUD(FOR ALTERNATOR BRACKET)

main90116-08170i4AGE..AT210199608

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i2CT..CT21#199608-199703

main96411-63500×4i2CT,3CTE..CT21#199703

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×4i2CT..CT21#199608-199703

main96411-44000i3SFE..ST215199608

main96411-63000×4i2CT,3CTE..CT21#199703

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53006×2i4AGE,5AFE,7AFE..AT21#199608

main90345-52003i2CT,3CTE..CT21#199608

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i3SFE..ST215199608

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i4AGE,5AFE,7AFE..AT21#199608

main90253-14002×2i2CT..CT21#199608-199708

main90253-14004×2i2CT,3CTE..CT21#199708

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i3SFE..ST215199608

main90250-06068×2i2CT,3CTE..CT21#199608

11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)

main90250-06003×2i4AGE..AT210199608

11452GUIDE, OIL LEVEL GAGE

main11452-15030i5AFE,7AFE..AT211,212199608

main11452-16040i4AGE..AT210199608

main11452-64030i2CT,3CTE..CT21#199608

main11452-74031i3SFE..ST215199608

12101PAN SUB-ASSY, OIL

main12101-16100i4AGE,5AFE..AT210,212199608

main12101-64101i2CT,3CTE..CT215,216199608

main12101-64140i2CT..CT210199608-199801

main12101-64141i2CT,3CTE..CT210,211199801

main12101-74050i3SFE..ST215199608-199805

main12101-74150i3SFE..ST215199805

sub12101-74160

sub12129-54010

sub91651-60614

main12111-16120i7AFE..AT211199608

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i3SFE..ST215199608

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3SFE..ST215199608

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-16040i7AFE..AT211199608

main12122-16031i4AGE..AT210199608

main12123-74040i3SFE..ST215199608

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15051i5AFE..AT212199608

main15301-16070i4AGE..AT210199608

main15301-16091i7AFE..AT211199608

main15301-64090i2CT,3CTE..CT21#199608

main15301-74010i3SFE..ST215199608

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2CT,3CTE..CT21#199608-199810

main15703-16010×4i4AGE..AT210199608

main15703-27010i3CTE..CT21#199810

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-16010×3i4AGE..AT210199608

NO.1,2,4

main15708-16020i4AGE..AT210199608

main15790-64021×4i2CT,3CTE..CT21#199608

sub15790-64030

sub90110-06034

9010906088

main90109-06088

9011608153

main90116-08153

9011608197

main90116-08197

9011906727

main90119-06727

9017906326

main90179-06326

9151160616

main91511-60616

29 parts on this diagram · 6 diagrams in section
