ENGINE OVERHAUL GASKET KIT

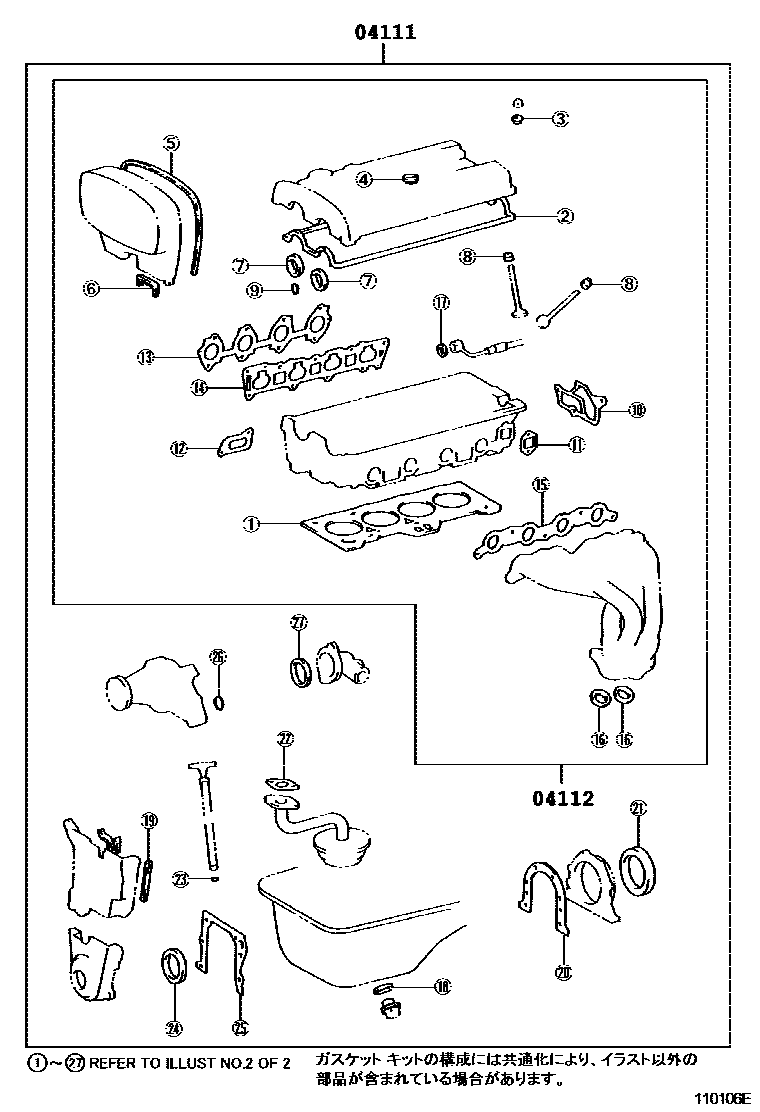

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-16221i¥27,600199608

main04111-16330i¥35,900199608

main04111-16350i¥37,500199608

main04111-64280i¥41,500199608-199708

sub04111-64281¥34,400

sub11115-64140¥7,100

main04111-64282i¥34,500199708-199805

sub04111-64283¥34,500

main04111-64283i¥34,500199805-199808

sub04111-64284¥34,500

main04111-64362i¥37,100199808-199811

sub04111-64363¥37,100

main04111-64363i¥37,100199811-199906

sub04111-64364¥37,100

main04111-64364i¥37,100199906

main04111-74591i¥38,600199608-199612

sub04111-74592¥38,700

main04111-74592i¥38,700199612

04112GASKET KIT, ENGINE VALVE GRIND

main04112-16220i¥23,700199608

main04112-16330i¥30,600199608

main04112-16350i¥24,300199608

main04112-64210i¥26,500199608-199708

sub04112-64211¥19,200

sub11115-64140¥7,100

main04112-64212i¥19,500199708-199808

sub04112-64213¥19,500

main04112-64271i¥27,800199808-199906

sub04112-64272¥27,800

main04112-64272i¥27,800199906

main04112-74561i¥25,300199608-199612

sub04112-74562¥25,300

main04112-74562i¥25,300199612

2 parts on this diagram · 10 diagrams in section
