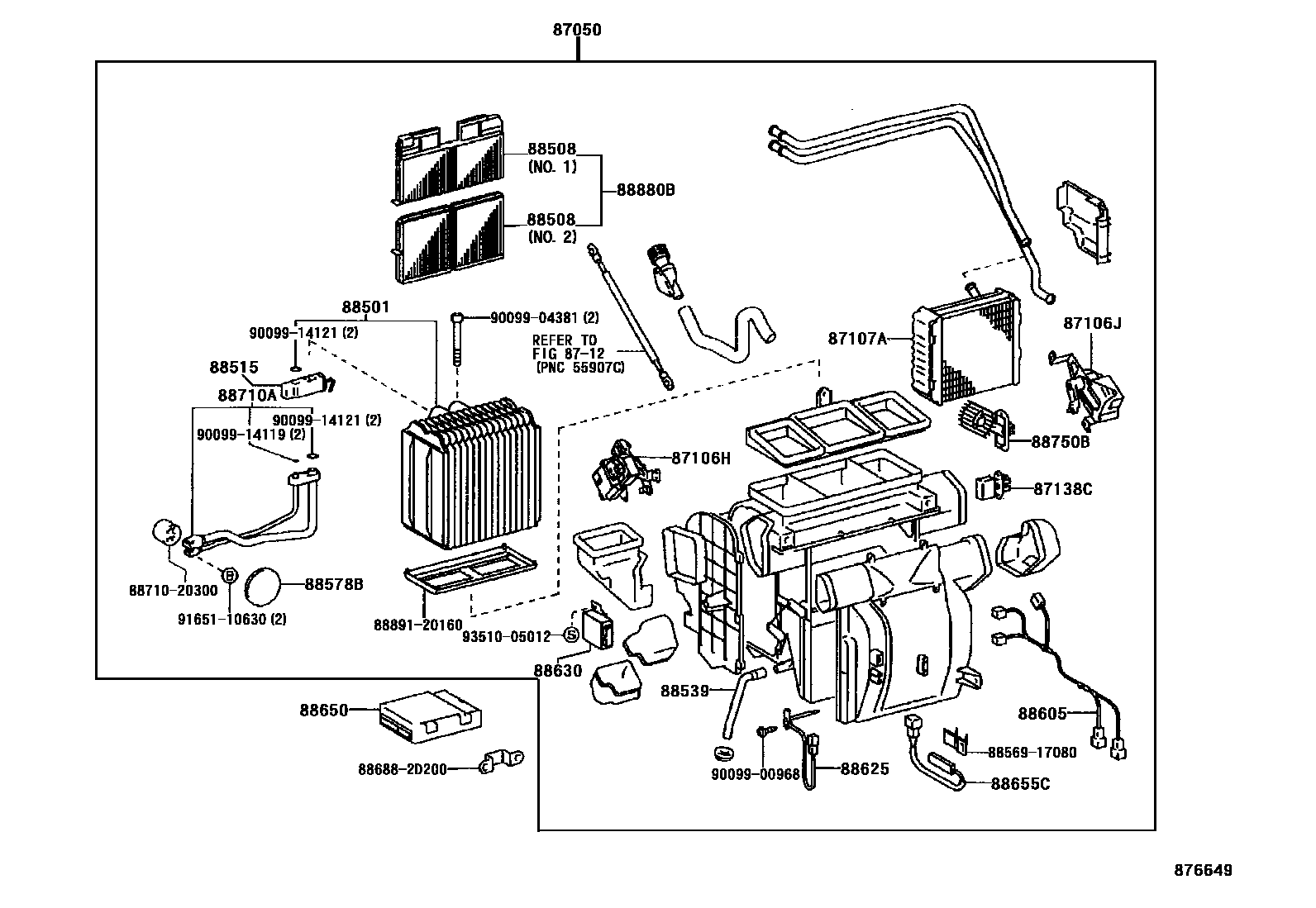

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-20290iAT19#,CT19#,ST195..SG,SGI199208-199608

main87050-20300iAT19#,CT19#,ST195..SG,SGI199208-199608

main87050-20310iAT19#,CT19#,ST195..SG,SGI199208-199608

main87050-20320iAT19#,CT19#,ST195..SG,SGI199208-199608

main87050-20330iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main87050-20340iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main87050-20350iAT190..M;AT191,192,ST19#..SX,SXI199208-199608

main87050-20360iAT190..M;AT191,192,ST19#..SX,SXI199208-199608

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-20200iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-20210iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-20570iAT19#,CT19#,ST19#199208-199608

main87107-20600iAT19#,CT19#,ST19#199208-199608

8712

87138CRESISTOR, BLOWER

main87138-20230iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main87138-20240iAT19#,CT19#,ST195..SG,SGI199208-199608

sub87138-20320

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20290iAT19#,CT19#,ST19#199208-199411

main88501-20291iAT19#,CT19#,ST195199411-199608

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20020iAT19#,CT19#,ST19#199208-199608

sub88508-20060

main88508-20030iAT19#,CT19#,ST19#199208-199608

sub88508-20070

88515VALVE, COOLER EXPANSION

main88515-20100iAT19#,CT19#,ST19#199208-199608

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20270iAT19#,CT19#,ST19#199311-199608

88578BPACKING, COOLING UNIT, NO.1

main88578-20490iAT19#,CT19#,ST19#199208-199608

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D180iAT19#,CT19#,ST195..SG,SGI199208-199608

main88605-2D190iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main88605-2D220iAT190..M;AT191,192,ST19#..SX,SXI199208-199608

88625THERMISTOR, COOLER, NO.1

main88625-20390iAT19#,CT19#,ST19#199208-199608

88630RELAY ASSY, COOLER

main88630-20260iAT190..M;AT191,192,ST19#..SX,SXI199208-199608

main88630-20270iAT192,ST19#..SX199208-199408

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-2B170iAT19#..SG,SGI199208-199408

main88650-2B180iST195..SG199208-199408

main88650-2B190iCT19#..SG199208-199408

main88650-2B340iAT19#..SG,SGI199408-199608

main88650-2B350iST195..SG199408-199608

main88650-2B370iCT19#..SG199408-199608

88655CTHERMO SWITCH ASSY

main88655-20010iAT190,CT19#,ST19#..SE,SEEXT,SL,SXI199304-199408

main88655-20020iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199304-199608

88710ATUBE ASSY, AIR CONDITIONER

main88710-20380iAT190,CT19#,ST19#..SE,SEEXT,SL,SXI199208-199306

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-20020iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

88880BFILTER ASSY, CLEAN AIR

main88880-20010iAT19#,CT19#,ST19#199208-199608

sub88880-20050

8856917080CLAMP (FOR COOLER RELAY)

main88569-17080

886882D200BRACKET, COOLER DIAPHRAGM

main88688-2D200

8871020300TUBE ASSY, AIR CONDITIONER

main88710-20300

8889120160PACKING (FOR COOLER)

main88891-20160

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9165110630

main91651-10630

9351005012

main93510-05012

29 parts on this diagram · 1 diagram in section
