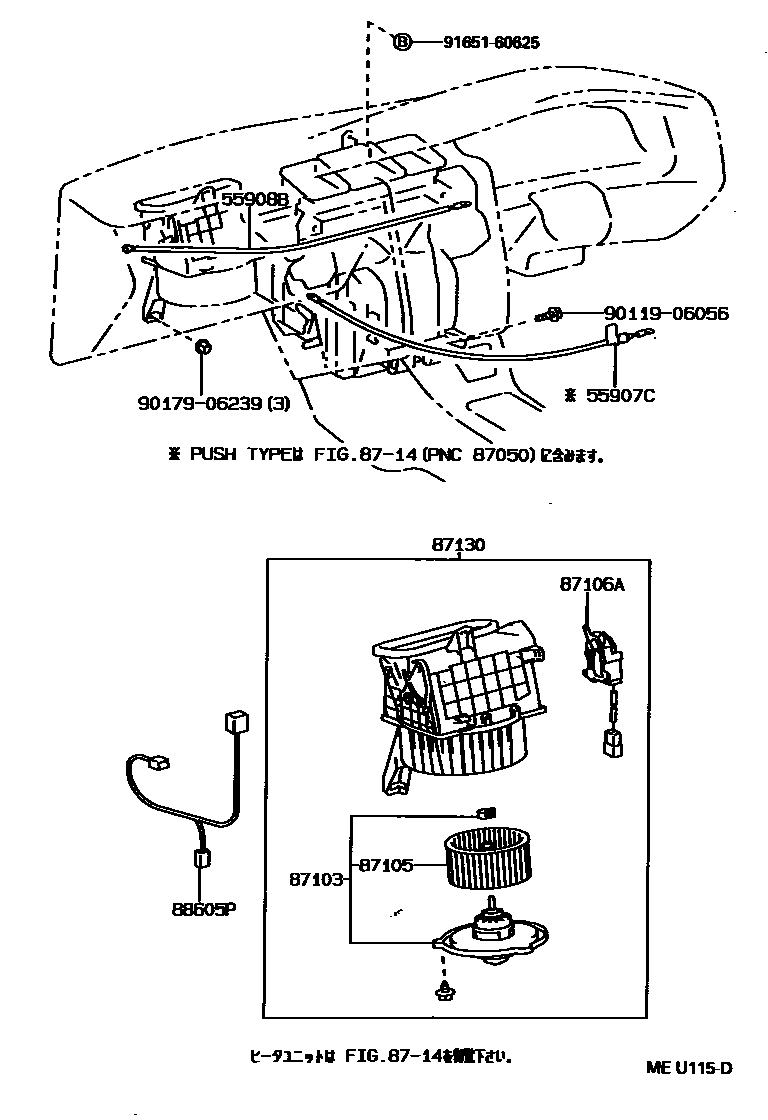

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

55907CCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20320iAT19#,CT19#,ST195..SG,SGI199208-199608

main55907-20330iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

55908BCABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20180iAT19#,CT19#,ST195..SG,SGI199208-199608

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20080iAT19#,CT19#,ST19#199208-199504

main87103-22100iAT19#,CT19#,ST195199504-199608

87105FAN SUB-ASSY, HEATER BLOWER

main87105-33010iAT19#,CT19#,ST19#199208-199504

sub87103-22110

87106ASERVO SUB-ASSY, DAMPER

main87106-20240iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

87130BLOWER ASSY, HEATER, FRONT

main87130-20540iAT19#,CT19#,ST195..SG,SGI199208-199608

main87130-20550iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

main87130-20551iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

8714

88605PHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-2D200iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

main88605-2D210iAT192,ST19#..SX199208-199408

main88605-2D420iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

main88605-2D430iAT19#,ST195..SX,SXI199408-199608

9011906056

main90119-06056

9017906239

main90179-06239

9165160625

main91651-60625

11 parts on this diagram · 1 diagram in section
