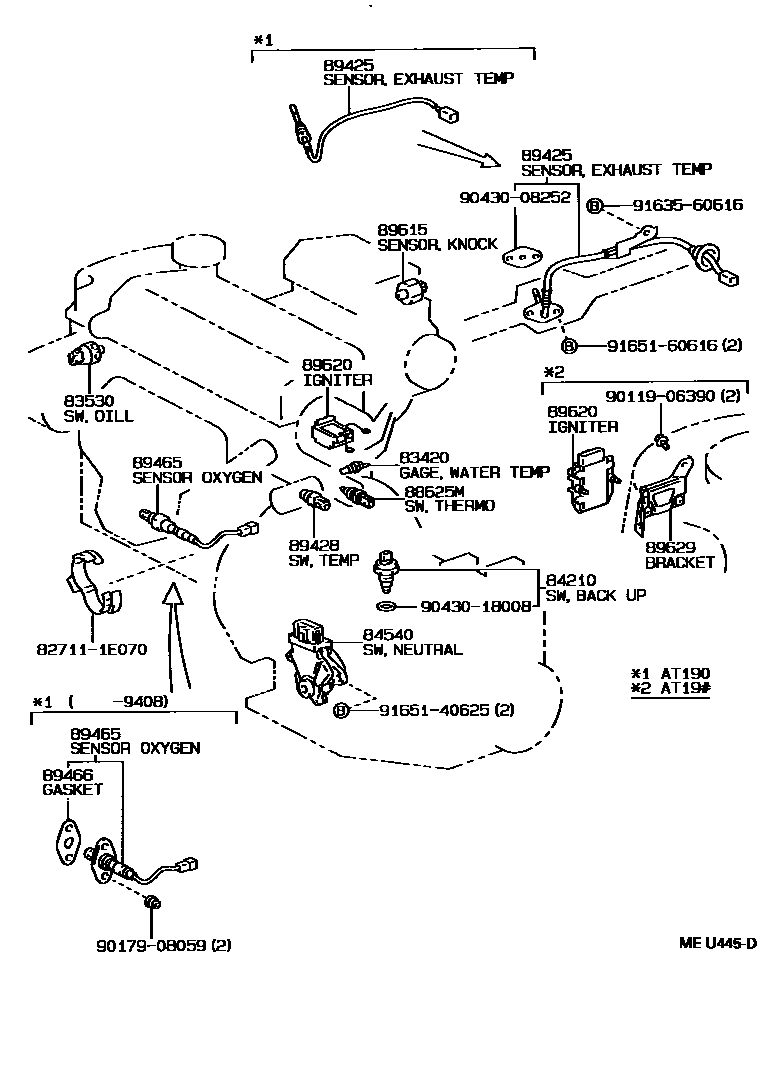

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1COWL 0007 1COMBINATION SWITCH 0008 1ROOF,DOOR,SEAT & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iST19#199208-199608

main83420-16050iAT19#199208-199411

sub83420-20040

main83420-20020iCT19#199208-199608

main83420-20030iST19#199208-199506

sub83420-16040

main83420-20040iAT19#199208-199608

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iST19#199208-199411

sub83530-30090

main83530-30090iAT19#199208-199608

sub83530-60020

main83530-30100iCT19#199208-199608

sub83530-60010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT19#,CT19#,ST19#..MTM199208-199608

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT19#..ATM199408-199608

main84540-12200iAT19#..ATM199208-199408

TOUKAIRIKA

main84540-12210iAT19#..ATM199208-199408

MATUSHITA

main84540-12210iAT19#..ATM199408-199608

main84540-16040iCT190,ST190..ATM199208-199608

main84540-20200iST195..ATM199208-199608

88625MTHERMISTOR, COOLER

main88625-20410iCT19#,ST19#199208-199408

main88625-20430iAT190199208-199408

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20190iAT190199208-199408

sub89425-43010

main89425-20210iST19#199208-199608

sub89425-20290

main89425-29635iAT190,191199408-199608

sub89425-29645

main89425-29655iAT192199208-199608

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12150iAT19#199208-199408

sub89428-12160

main89428-12160iAT19#199208-199408

main89428-12160iAT19#199408-199608

main89428-33010iCT19#,ST19#199208-199608

89465SENSOR, OXYGEN

main89465-10020iAT192199208-199608

main89465-20270iST19#199208-199608

main89465-22180iAT190,191199408-199608

main89465-29615iAT190199208-199408

89466GASKET, OXYGEN SENSOR

main89466-20020iAT190199208-199408

89615SENSOR, KNOCK CONTROL

main89615-12030iAT191,192199208-199608

sub89615-22050

main89615-20030iST19#199208-199608

sub89615-32040

main89615-20040iAT190199208-199608

main89615-33020iST19#199208-199608

sub89615-32030

89620IGNITER ASSY

main89620-12440iAT192199208-199608

main89621-16020iST19#199208-199608

sub89621-26010

main89621-20050iAT190199208-199408

89629BRACKET, IGNITER ASSY

main89629-20140iAT190,191,ST19#199208-199608

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9011906390

main90119-06390

9017908059

main90179-08059

9043008252

main90430-08252

9043018008

main90430-18008

9163560616

main91635-60616

9165140625

main91651-40625

9165160616

main91651-60616

20 parts on this diagram · 8 diagrams in section
