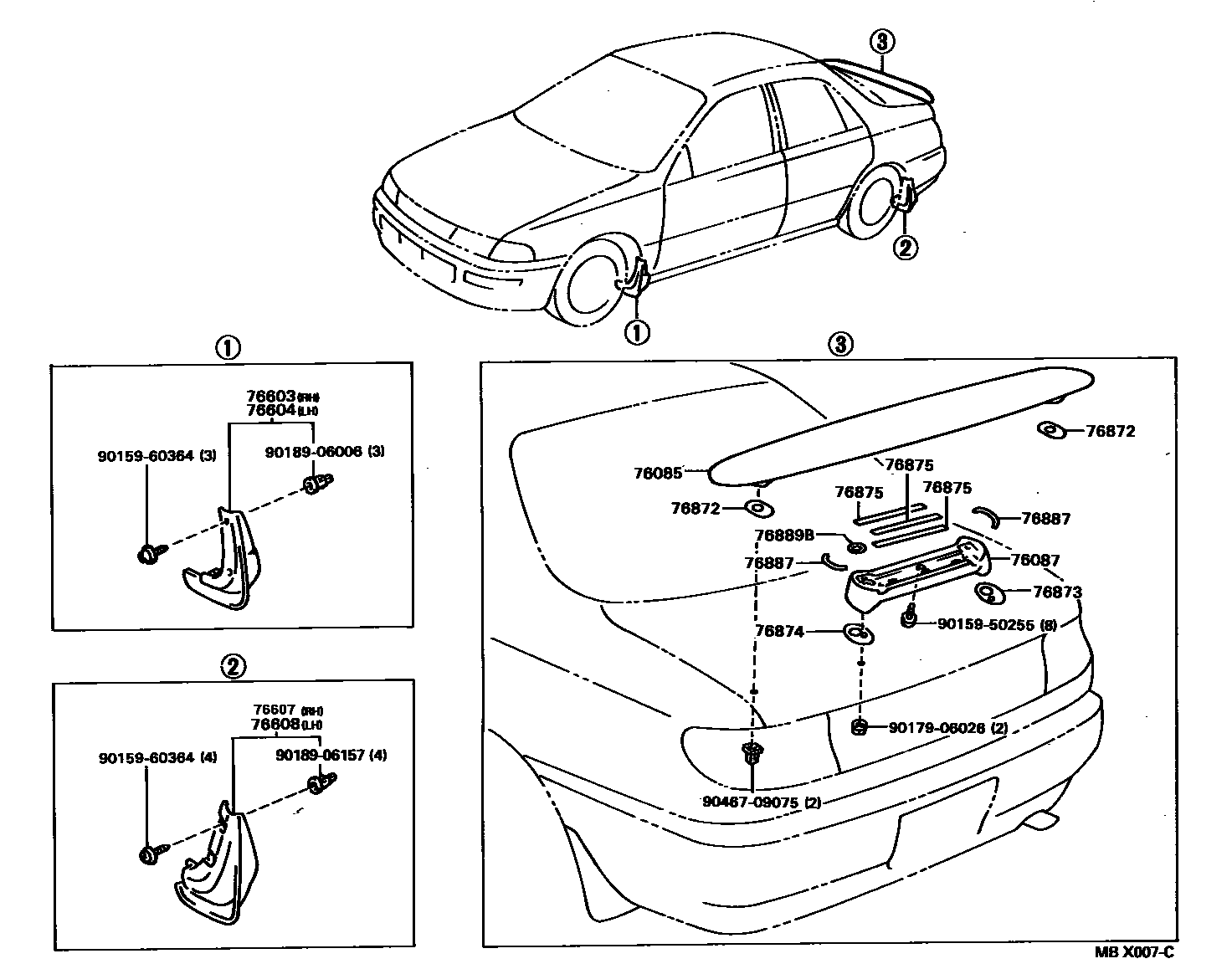

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76871-20908iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

76087SPOILER SUB-ASSY, REAR NO.1

main76891-20906iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29145iCT195,ST195..SG199208-199608

main76621-29155-A0iAT19#..SG,SGI199208-199608

SUPER WHITE 2,040

main76621-29155-A0iCT190..SG;AT192,ST190..SX199305-199307

main76621-29155-A0iAT190..S199309-199312

main76621-29155-B0iST195..SE,SX;AT190,CT19#,ST190..SE,SEEXT,SL,SXI199208-199608

DARK BLUEISH GRAY ME,183

main76621-29155-B0iCT190..SG;AT192,ST190..SX199305-199307

main76621-29155-B0iAT190..S199309-199312

main76621-29155-C0iAT19#,CT190..SG,SGI199408-199608

BLACK ME,205

main76621-29155-D0iAT19#..SG,SGI199208-199608

WINE RED MICA,3J8

main76621-29155-D0iCT190..SG;AT192,ST190..SX199305-199307

main76621-29155-D0iAT190..S199309-199312

main76621-29155-D1iCT190..SG;AT19#,ST190..SX,SXI199208-199408

LIGHT BEIGE ME,3K9

main76621-29155-F0iCT190..SG;AT19#,ST190..SX,SXI199208-199608

PALE YELLOW OPAL,574

main76621-29155-F0iCT190..SG;AT192,ST190..SX199305-199307

main76621-29155-F0iAT190..S199309-199312

main76621-29155-G0iAT19#,CT190,ST190..SG,SGI,SX199208-199408

DK.MOSS GREEN MICA M,6M4

main76621-29155-G1iAT19#,CT190..SG,SGI199604-199608

DARK GREEN MICA,6M1

main76621-29155-H0iST195..SE,SX;CT19#,ST190..SE,SEEXT,SL199208-199408

MEDIUM TORQUOISE ME,749

main76621-29155-J0iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

DK.BLUE MM,8G5

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29145iAT19#,CT190..SG,SGI199208-199608

main76622-29155-A0iAT19#..SG,SGI199208-199608

SUPER WHITE 2,040

main76622-29155-A0iCT190..SG;AT192,ST190..SX199305-199307

main76622-29155-A0iAT190..S199309-199312

main76622-29155-B0iAT19#..SG,SGI199208-199608

DARK BLUEISH GRAY ME,183

main76622-29155-B0iAT190..S199309-199312

main76622-29155-B0iCT190..SG;AT192,ST190..SX199305-199307

main76622-29155-C0iAT19#,CT190..SG,SGI199408-199608

BLACK ME,205

main76622-29155-D0iAT19#..SG,SGI199208-199608

WINE RED MICA,3J8

main76622-29155-D0iCT190..SG;AT192,ST190..SX199305-199307

main76622-29155-D0iAT190..S199309-199312

main76622-29155-D1iST195..SE,SX;CT19#,ST190..SE,SEEXT199208-199408

LIGHT BEIGE ME,3K9

main76622-29155-F0iST195..SE,SX;AT190,CT19#,ST190..SE,SEEXT,SL,SXI199208-199608

PALE YELLOW OPAL,574

main76622-29155-F0iAT190..S199309-199312

main76622-29155-F0iCT190..SG;AT192,ST190..SX199305-199307

main76622-29155-G0iAT19#,CT190,ST190..SG,SGI,SX199208-199408

DK.MOSS GREEN MICA M,6M4

main76622-29155-G1iAT19#,CT190..SG,SGI199604-199608

DARK GREEN MICA,6M1

main76622-29155-H0iST195..SE,SX;AT190,CT19#,ST190..SE,SEEXT,SL,SXI199208-199408

MEDIUM TORQUOISE ME,749

main76622-29155-J0iAT19#,CT190..SG,SGI199408-199608

DK.BLUE MM,8G5

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29135iCT195,ST195..SG199208-199608

main76625-29145-A0iCT190..SG;AT19#,ST190..SX,SXI199208-199608

SUPER WHITE 2,040

main76625-29145-A0iCT190..SG;AT192,ST190..SX199305-199307

main76625-29145-A0iAT190..S199309-199312

main76625-29145-B0iAT19#..SG,SGI199208-199608

DARK BLUEISH GRAY ME,183

main76625-29145-B0iCT190..SG;AT192,ST190..SX199305-199307

main76625-29145-B0iAT190..S199309-199312

main76625-29145-C0iAT19#,CT190..SG,SGI199408-199608

BLACK ME,205

main76625-29145-D0iST195..SE,SX;CT19#,ST190..SE,SEEXT,SL199208-199608

WINE RED MICA,3J8

main76625-29145-D0iCT190..SG;AT192,ST190..SX199305-199307

main76625-29145-D0iAT190..S199309-199312

main76625-29145-D1iAT19#..SG,SGI199208-199408

LIGHT BEIGE ME,3K9

main76625-29145-F0iST195..SE,SX;CT19#,ST190..SE,SEEXT,SL199208-199608

PALE YELLOW OPAL,574

main76625-29145-F0iAT190..S199309-199312

main76625-29145-F0iCT190..SG;AT192,ST190..SX199305-199307

main76625-29145-G0iAT19#..SG,SGI199208-199408

DK.MOSS GREEN MICA M,6M4

main76625-29145-G1iAT19#..SX,SXI199604-199608

DARK GREEN MICA,6M1

main76625-29145-H0iCT190..SG;AT19#,ST190..SX,SXI199208-199408

MEDIUM TORQUOISE ME,749

main76625-29145-J0iAT19#,CT190..SG,SGI199408-199608

DK.BLUE MM,8G5

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29135iCT195,ST195..SG199208-199608

main76626-29145-A0iAT19#,CT190,ST190..SG,SGI,SX199208-199608

SUPER WHITE 2,040

main76626-29145-A0iCT190..SG;AT192,ST190..SX199305-199307

main76626-29145-A0iAT190..S199309-199312

main76626-29145-B0iAT19#,CT190,ST190..SG,SGI,SX199208-199608

DARK BLUEISH GRAY ME,183

main76626-29145-B0iCT190..SG;AT192,ST190..SX199305-199307

main76626-29145-B0iAT190..S199309-199312

main76626-29145-C0iAT19#,CT190..SG,SGI199408-199608

BLACK ME,205

main76626-29145-D0iCT190..SG;AT19#,ST190..SX,SXI199208-199608

WINE RED MICA,3J8

main76626-29145-D0iAT190..S199309-199312

main76626-29145-D0iCT190..SG;AT192,ST190..SX199305-199307

main76626-29145-D1iAT19#,CT190,ST190..SG,SGI,SX199208-199408

LIGHT BEIGE ME,3K9

main76626-29145-F0iCT190..SG;AT19#,ST190..SX,SXI199208-199608

PALE YELLOW OPAL,574

main76626-29145-F0iAT190..S199309-199312

main76626-29145-F0iCT190..SG;AT192,ST190..SX199305-199307

main76626-29145-G0iCT190..SG;AT19#,ST190..SX,SXI199208-199408

DK.MOSS GREEN MICA M,6M4

main76626-29145-G1iAT19#,CT190..SG,SGI199604-199608

DARK GREEN MICA,6M1

main76626-29145-H0iCT190..SG;AT19#,ST190..SX,SXI199208-199408

MEDIUM TORQUOISE ME,749

main76626-29145-J0iAT19#,CT190..SG,SGI199408-199608

DK.BLUE MM,8G5

76872PROTECTOR, REAR SPOILER, NO.1

main76872-20140iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20120iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

76874PROTECTOR, REAR SPOILER, NO.3

main76874-20110iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

sub76873-20120

76875PROTECTOR, REAR SPOILER, NO.4

main76875-20070iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

76887SEAL, REAR SPOILER

main76887-20080iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

76889BSEAL, REAR SPOILER, NO.1

main76889-20050iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

9015950255

main90159-50255

9015960364

main90159-60364

9017906026

main90179-06026

9018906006

main90189-06006

9018906157

main90189-06157

9046709075

main90467-09075

18 parts on this diagram · 1 diagram in section
