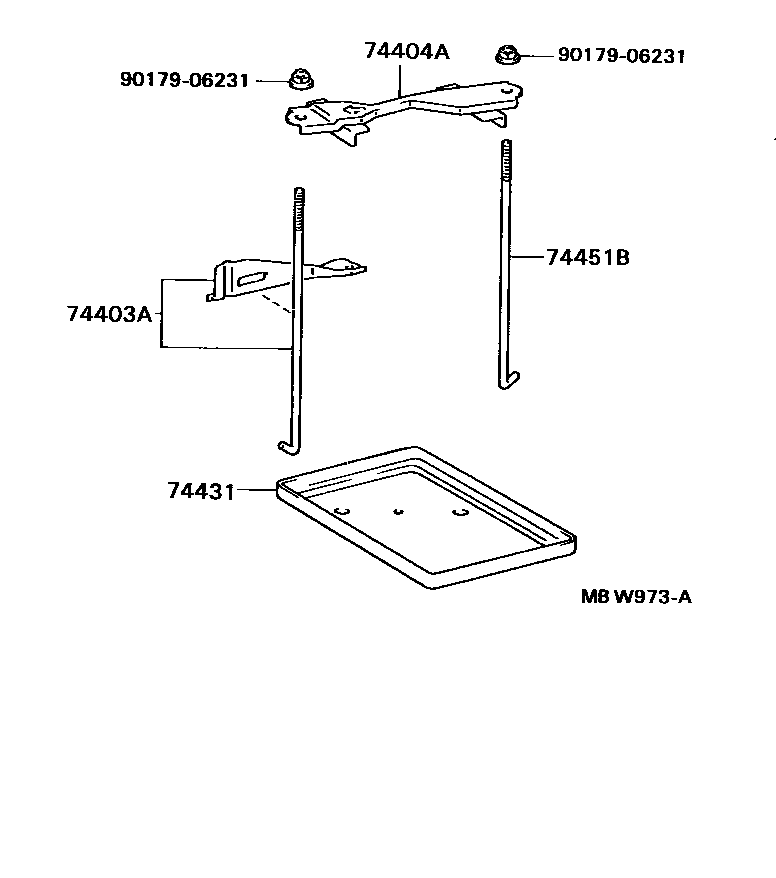

BATTERY CARRIER

0001 1 0002 1

74403ACARRIER SUB-ASSY, BATTERY

main74403-20030iAT19#,ST19#199208-199401

main74403-20050iCT19#199208-199401

74404ACLAMP SUB-ASSY, BATTERY

main74404-20420iAT19#,ST19#199208-199608

main74404-20440iCT19#199208-199608

74431TRAY, BATTERY

main74431-20080iAT19#;ST19#..MTM199208-199608

sub74431-14050

main74431-20090iAT19#;ST19#..MTM199208-199608

main74431-20100iCT19#199208-199608

74451BBOLT, BATTERY CLAMP

main74451-20100iAT19#,CT19#,ST19#199208-199305

main74451-20111iAT19#,ST19#199401-199608

main74451-20121iCT19#199401-199608

9017906231

main90179-06231

5 parts on this diagram · 2 diagrams in section
