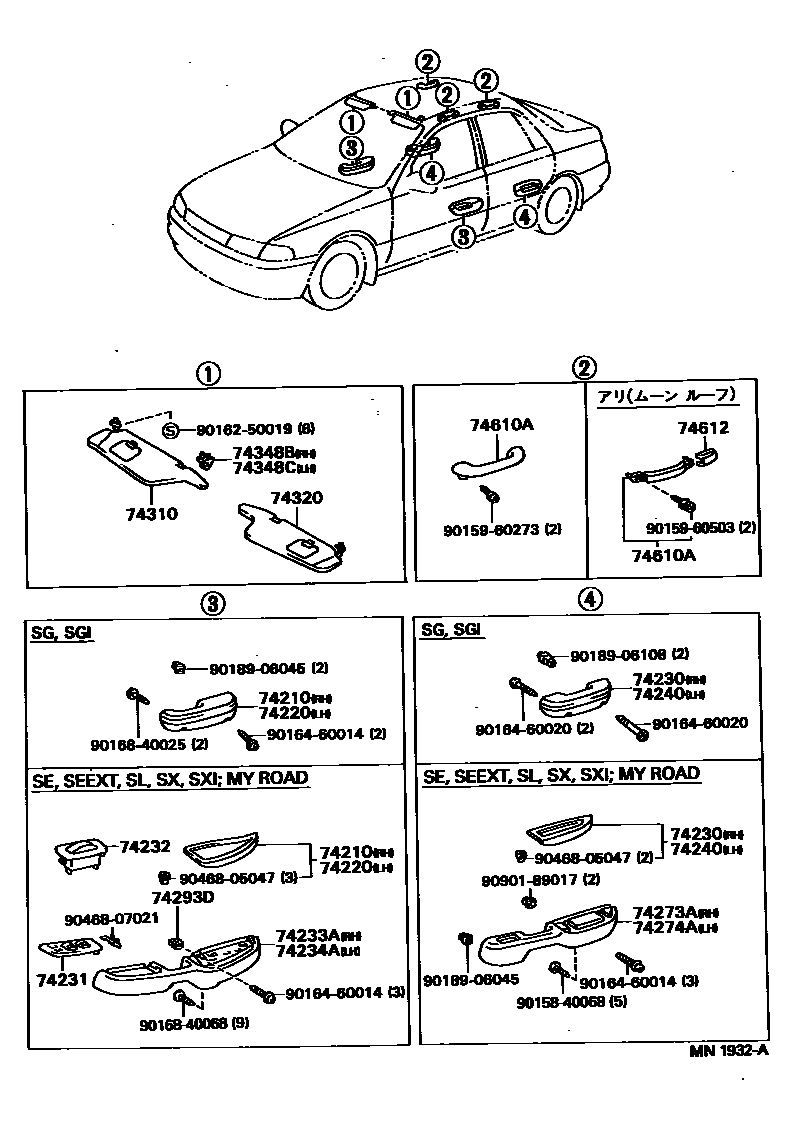

ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-20170-E0iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

sub74210-20170¥3,590

main74210-20170-E1iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

sub74210-20170¥3,590

main74210-20170-P0iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

sub74210-20170¥3,590

main74210-20310-B1iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74210-20310-B1iCT190..SG199308-199408

main74210-20310-E0iCT190..SG199308-199408

main74210-20310-E0iAT19#,CT19#,ST19#..SE,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74210-20310-E1iAT19#,CT19#,ST195..SE,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74210-20320-B0iST190..SEEXT199208-199408

GRAY,TRIM1#

main74210-20320-E0iST190..SEEXT199208-199408

ROSE,TRIM4#

main74210-20321-B1iAT191..SEEXT199408-199608

SHADOW GRAY,TRIM1#

main74210-20321-E1iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-20170-E0iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

sub74220-20170¥3,590

main74220-20170-E1iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

sub74220-20170¥3,590

main74220-20170-P0iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

sub74220-20170¥3,590

main74220-20310-B1iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74220-20310-B1iCT190..SG199308-199408

main74220-20310-E0iCT190..SG199308-199408

main74220-20310-E0iAT19#,CT19#,ST19#..SE,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74220-20310-E1iAT19#,CT19#,ST195..SE,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74220-20320-B0iST190..SEEXT199208-199408

GRAY,TRIM1#

main74220-20320-E0iST190..SEEXT199208-199408

ROSE,TRIM4#

main74220-20321-B1iAT191..SEEXT199408-199608

SHADOW GRAY,TRIM1#

main74220-20321-E1iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-20080-E1iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

sub74250-20080¥4,160

main74250-20080-P0iAT19#,CT19#,ST195..SG,SGI199208-199408

SHADOW GRAY,TRIM1#

sub74250-20080¥4,160

main74250-20210-B1iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74250-20210-B1iCT190..SG199308-199408

main74250-20210-E0iAT19#,CT19#,ST19#..SE,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74250-20210-E0iCT190..SG199308-199408

main74250-20210-E1iAT19#,CT19#,ST195..SE,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74250-20220-B0iST190..SEEXT199208-199408

GRAY,TRIM1#

main74250-20220-E0iST190..SEEXT199208-199408

ROSE,TRIM4#

main74250-20221-B1iAT191..SEEXT199408-199608

SHADOW GRAY,TRIM1#

sub74250-20221

main74250-20221-E1iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

sub74250-20221

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20370-C0iCT190..SG199308-199408

main74231-20370-C0iAT191,ST190..SL199208-199608

BLACK,TRIM1#

main74231-20370-C0iAT191,ST190..SL199208-199608

BLACK,TRIM1#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20240-C0iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199608

BLACK,TRIM1#,4#

main74232-20240-C0iCT190..SG199308-199408

main74232-20240-C0iAT191,ST190..SL199208-199608

BLACK,TRIM1#

74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-20140-B1iCT190..SG199412-199608

main74233-20140-B1iCT190..SG199308-199408

main74233-20140-B1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74233-20140-E0iCT190..SG199308-199408

main74233-20140-E0iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74233-20140-E1iCT190..SG199412-199608

main74233-20140-E1iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-20140-B1iCT190..SG199308-199408

main74234-20140-B1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74234-20140-B1iCT190..SG199412-199608

main74234-20140-E0iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74234-20140-E0iCT190..SG199308-199408

main74234-20140-E1iCT190..SG199412-199608

main74234-20140-E1iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

74240ARMREST ASSY, REAR, LH

main74250-20080-E0iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

sub74250-20080¥4,160

main74250-20080-E1iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

sub74250-20080¥4,160

main74250-20080-P0iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

sub74250-20080¥4,160

main74260-20140-B1iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74260-20140-B1iCT190..SG199308-199408

main74260-20140-E0iCT190..SG199308-199408

main74260-20140-E0iAT19#,CT19#,ST19#..SE,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74260-20140-E1iAT19#,CT19#,ST195..SE,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74260-20150-B0iST190..SEEXT199208-199408

GRAY,TRIM1#

main74260-20150-E0iST190..SEEXT199208-199408

ROSE,TRIM4#

main74260-20151-B1iAT191..SEEXT199408-199608

SHADOW GRAY,TRIM1#

main74260-20151-E1iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-20070-B1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74273-20070-B1iCT190..SG199308-199408

main74273-20070-B1iCT190..SG199412-199608

main74273-20070-E0iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74273-20070-E0iCT190..SG199308-199408

main74273-20070-E1iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74273-20070-E1iCT190..SG199412-199608

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-20060-B1iCT190..SG199412-199608

main74274-20060-B1iCT190..SG199308-199408

main74274-20060-B1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main74274-20060-E0iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74274-20060-E0iCT190..SG199308-199408

main74274-20060-E1iCT190..SG199412-199608

main74274-20060-E1iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

74293DPLATE, FRONT DOOR ARMREST, NO.1

main74293-32010iCT190..SG¥170199308-199408

main74293-32010iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI¥170199208-199608

main74293-32010iCT190..SG¥170199412-199608

74310VISOR ASSY, RH

main74310-2B350-B1iAT19#,CT19#,ST19#..SG,SGI,SX,SXI199208-199408

LIGHT GRAY,LIGHT GRAY,TRIM1#

sub74310-2B600¥3,330

sub74310-2B350¥2,820

main74310-2B350-B1iAT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI199208-199608

LIGHT GRAY,TRIM1#

sub74310-2B600¥3,330

sub74310-2B350¥2,820

main74310-2B350-E1iAT19#,CT19#,ST19#..SG,SGI,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

sub74310-2B600¥3,330

sub74310-2B350¥2,820

main74310-2B350-E6iAT19#,CT19#,ST195..SG,SGI,SX,SXI199408-199608

LT.ANTELOPE,TRIM4#

sub74310-2B600¥3,330

sub74310-2B350¥2,820

main74310-2B360-B1iCT19#,ST19#..SE,SL199208-199308

LIGHT GRAY,TRIM1#

sub74310-2B600¥3,330

main74310-2B360-B1iCT190..SG;AT192,ST190..SX199305-199307

sub74310-2B600¥3,330

main74310-2B360-E1iCT19#,ST19#..SE199208-199308

LIGHT ROSE,TRIM4#

sub74310-2B600¥3,330

main74310-2B360-E1iCT190..SG;AT192,ST190..SX199305-199307

sub74310-2B600¥3,330

main74310-2B370-B3iAT190..S199208-199308

sub74310-2B620¥3,330

main74310-2B370-E2iAT190..S199208-199308

sub74310-2B620¥3,330

main74310-2B370-E2iCT19#,ST19#..SE,SX199208-199308

sub74310-2B620¥3,330

main74310-2B380-B1iST190..SEEXT199208-199308

LIGHT GRAY,TRIM1#

sub74310-2B610¥3,330

main74310-2B380-E1iST190..SEEXT199208-199308

LIGHT ROSE,TRIM4#

sub74310-2B610¥3,330

main74310-2B390-B1iST190..SEEXT199208-199308

sub74310-2B630¥3,330

main74310-2B390-E1iST190..SEEXT199208-199308

sub74310-2B630¥3,330

main74310-2B600-B0iCT190..SG;AT19#,ST190..SX,SXI199309-199408

sub74310-2B600¥3,330

main74310-2B600-B0iST190..SE,SL;AT191,CT19#,ST195..SE,SEEXT,SL199308-199608

LIGHT GRAY,TRIM1#

sub74310-2B600¥3,330

main74310-2B600-B0iCT190..SG;AT192,ST190..SX199308-199309

sub74310-2B600¥3,330

main74310-2B600-B0iAT19#,CT190..SG,SGI,SX,SXI199412-199608

sub74310-2B600¥3,330

main74310-2B600-E0iCT19#,ST19#..SE199308-199408

LIGHT ROSE,TRIM4#

sub74310-2B600¥3,330

main74310-2B600-E0iCT190..SG;AT192,ST190..SX199308-199309

sub74310-2B600¥3,330

main74310-2B600-E0iCT190..SG;AT19#,ST190..SX,SXI199309-199408

sub74310-2B600¥3,330

main74310-2B600-E1iAT19#,CT190..SG,SGI199412-199608

sub74310-2B600¥3,330

main74310-2B600-E1iAT191,CT19#,ST195..SE,SEEXT199408-199608

LT. ANTELOPE,TRIM4#

sub74310-2B600¥3,330

main74310-2B610-B0iST190..SEEXT199308-199408

LIGHT GRAY,TRIM1#

main74310-2B610-E0iST190..SEEXT199308-199408

LIGHT ROSE,TRIM4#

main74310-2B620-B0iAT190..S199308-199309

main74310-2B620-B0iCT19#,ST19#..SE,SL,SX199308-199309

main74310-2B620-B0iST190..SE,SL,SX;AT190,191,CT19#,ST195..SE,SEEXT,SL,SX,SXI199309-199608

main74310-2B620-E0iAT190,CT19#,ST19#..SE,SX,SXI199308-199408

main74310-2B620-E0iCT19#,ST19#..SE,SX199308-199309

main74310-2B620-E1iAT190,191,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

main74310-2B630-B0iST190..SEEXT199308-199408

main74310-2B630-E0iST190..SEEXT199308-199408

74320VISOR ASSY, LH

main74320-2B190-B1iAT19#,CT19#,ST19#..SG,SGI,SX,SXI199208-199608

LIGHT GRAY,TRIM1#

sub74320-2B430¥4,180

sub74320-2B190¥2,820

main74320-2B190-E1iAT19#,CT19#,ST19#..SG,SGI,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

sub74320-2B430¥4,180

sub74320-2B190¥2,820

main74320-2B190-E6iAT19#,CT19#,ST195..SG,SGI,SX,SXI199408-199608

LT.ANTELOPE,TRIM4#

sub74320-2B430¥4,180

sub74320-2B190¥2,820

main74320-2B200-B1iCT19#,ST19#..SE,SL199208-199308

LIGHT GRAY,TRIM1#

sub74320-2B430¥4,180

main74320-2B200-B1iCT190..SG;AT192,ST190..SX199305-199307

sub74320-2B430¥4,180

main74320-2B200-E1iCT190..SG;AT192,ST190..SX199305-199307

sub74320-2B430¥4,180

main74320-2B200-E1iCT19#,ST19#..SE199208-199308

LIGHT ROSE,TRIM4#

sub74320-2B430¥4,180

main74320-2B210-B3iAT190,CT19#,ST19#..SE,SL,SX,SXI199208-199308

sub74320-2B450¥4,160

main74320-2B210-E3iAT190,CT19#,ST19#..SE,SX,SXI199208-199308

sub74320-2B450¥4,160

main74320-2B220-B1iST190..SEEXT199208-199308

LIGHT GRAY,TRIM1#

sub74320-2B440¥13,000

main74320-2B220-E1iST190..SEEXT199208-199308

LIGHT ROSE,TRIM4#

sub74320-2B440¥13,000

main74320-2B230-B1iST190..SEEXT199208-199308

main74320-2B230-E1iST190..SEEXT199208-199308

main74320-2B430-B0iCT190..SG;AT192,ST190..SX199308-199309

sub74320-2B430¥4,180

main74320-2B430-B0iST190..SE,SL;AT191,CT19#,ST195..SE,SEEXT,SL199308-199608

LIGHT GRAY,TRIM1#

sub74320-2B430¥4,180

main74320-2B430-B0iAT19#,CT190..SG,SGI,SX,SXI199412-199608

sub74320-2B430¥4,180

main74320-2B430-B0iCT190..SG;AT19#,ST190..SX,SXI199309-199408

sub74320-2B430¥4,180

main74320-2B430-E0iCT190..SG;AT192,ST190..SX199308-199309

sub74320-2B430¥4,180

main74320-2B430-E0iCT190..SG;AT19#,ST190..SX,SXI199309-199408

sub74320-2B430¥4,180

main74320-2B430-E0iCT19#,ST19#..SE199308-199408

LIGHT ROSE,TRIM4#

sub74320-2B430¥4,180

main74320-2B430-E1iAT19#,CT190..SG,SGI199412-199608

sub74320-2B430¥4,180

main74320-2B430-E1iAT191,CT19#,ST195..SE,SEEXT199408-199608

LT. ANTELOPE,TRIM4#

sub74320-2B430¥4,180

main74320-2B440-B0iST190..SEEXT199308-199408

LIGHT GRAY,TRIM1#

main74320-2B440-E0iST190..SEEXT199308-199408

LIGHT ROSE,TRIM4#

main74320-2B450-B0iST190..SE,SL,SX;AT190,191,CT19#,ST195..SE,SEEXT,SL,SX,SXI199308-199608

main74320-2B450-E0iAT190,CT19#,ST19#..SE,SX,SXI199308-199408

main74320-2B450-E1iAT190,191,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

main74320-2B460-B0iST190..SEEXT199308-199408

main74320-2B460-E0iST190..SEEXT199308-199408

74348BHOLDER, VISOR, RH

main74348-33020-B0iAT19#,CT19#,ST19#199208-199608

LIGHT GRAY,TRIM1#

sub74348-33020¥910

sub74348-33030¥820

main74348-33020-E1iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

sub74348-33020¥910

sub74348-33030¥820

main74348-33020-E2iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

LT.ANTELOPE,TRIM4#

sub74348-33020¥910

sub74348-33030¥820

74348CHOLDER, VISOR, LH

main74348-33020-B0iAT19#,CT19#,ST19#199208-199608

LIGHT GRAY,TRIM1#

sub74348-33020¥910

sub74348-33030¥820

main74348-33020-E1iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

sub74348-33020¥910

sub74348-33030¥820

main74348-33020-E2iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

LT.ANTELOPE,TRIM4#

sub74348-33020¥910

sub74348-33030¥820

74610AGRIP SUB-ASSY, ASSIST

main74610-12090-B0iAT19#,CT19#,ST19#199208-199308

LIGHT GRAY,TRIM1#

sub74611-20030¥2,230

main74610-12090-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199308

LIGHT ROSE,TRIM4#

sub74611-20030¥2,230

main74610-22050-E0iAT190,191,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

sub74610-22050¥1,790

sub74610-17020¥2,130

main74610-22050-E1iAT190,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

sub74610-22050¥1,790

sub74610-17020¥2,130

main74610-22050-S3iAT190,191,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

sub74610-22050¥1,790

sub74610-17020¥2,130

main74611-20030-B0iAT19#,CT19#,ST19#199308-199608

LIGHT GRAY,TRIM1#

sub74611-20030¥2,230

sub74610-12090¥2,360

main74611-20030-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199308-199408

LIGHT ROSE,TRIM4#

sub74611-20030¥2,230

sub74610-12090¥2,360

main74611-20030-E2iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

LT.ANTELOPE,TRIM4#

sub74611-20030¥2,230

sub74610-12090¥2,360

74612COVER, ASSIST GRIP

main74612-22050-E1iAT190,191,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

LI. ANTELOPE,TRIM4#

sub74612-22050¥160

sub74612-20050¥270

main74612-22050-E3iAT190,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

sub74612-22050¥160

sub74612-20050¥270

main74612-22050-S3iAT190,191,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

LT. GRAY,TRIM1#

sub74612-22050¥160

sub74612-20050¥270

9015840068

main90158-40068

9015960273

main90159-60273¥130

9015960503

main90159-60503¥120

9016250019

main90162-50019¥120

9016460014

main90164-60014¥100

9016460020

main90164-60020¥120

9016840025

main90168-40025¥70

9016840068

main90168-40068¥120

9018906045

main90189-06045¥200

9018906108

main90189-06108¥130

9046805047

main90468-05047¥90

9046807021

main90468-07021¥240

9090189017

main90901-89017¥140

30 parts on this diagram · 1 diagram in section
