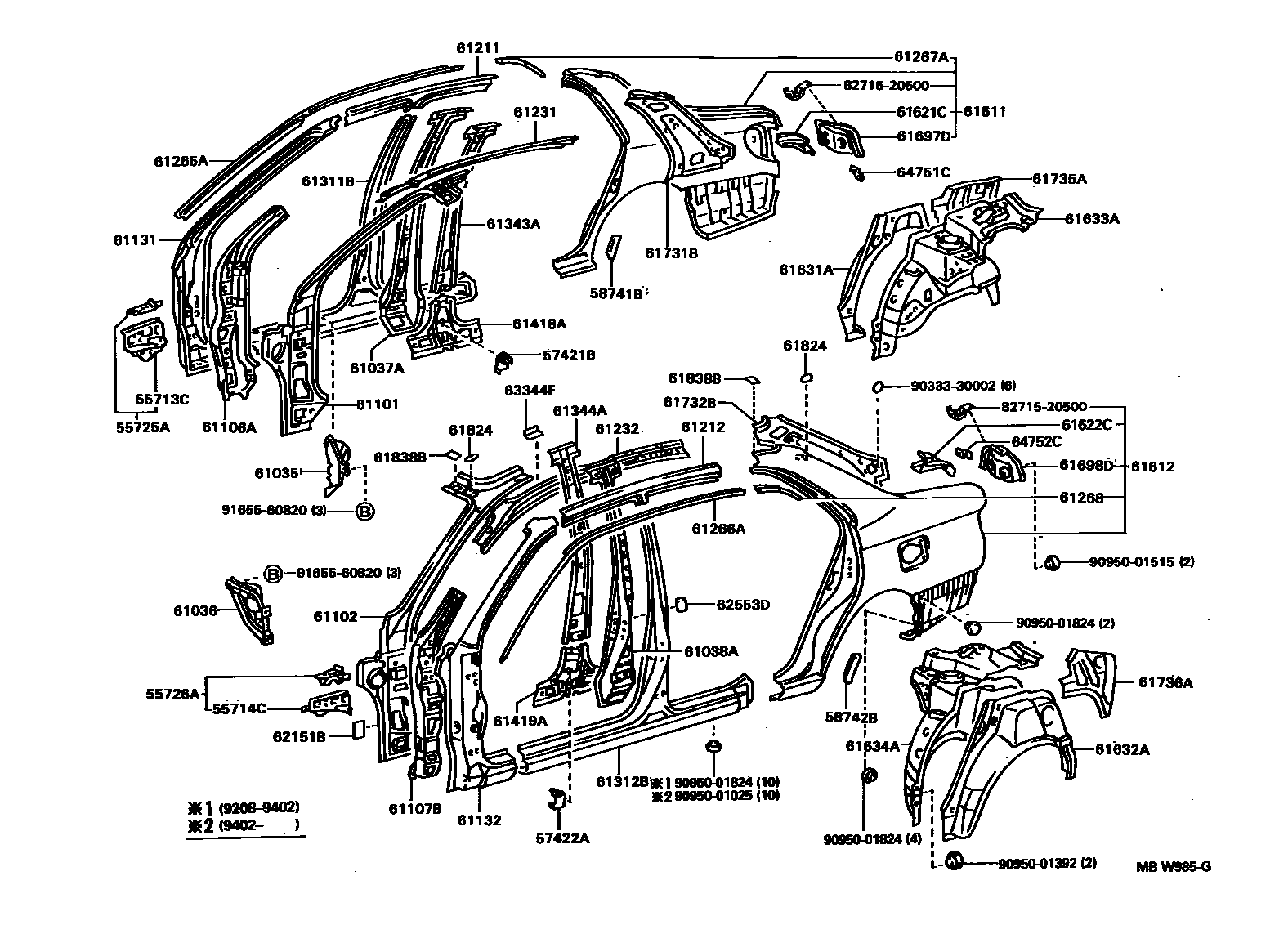

SIDE MEMBER

55713CPANEL, COWL TOP SIDE, RH

main55713-20130iAT19#,CT19#,ST19#199208-199608

55714CPANEL, COWL TOP SIDE, LH

main55714-20140iAT19#,CT19#,ST19#199208-199608

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-20901iAT19#,CT19#,ST19#199208-199608

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-20901iAT19#,CT19#,ST19#199208-199608

57421BPLATE, FLOOR SIDE RAIL, RH

main57421-20040iAT19#,CT19#,ST19#199208-199608

57422APLATE, FLOOR SIDE RAIL, LH

main57421-20040iAT19#,CT19#,ST19#199208-199608

58741BPROTECTOR, QUARTER PANEL, RH

main58741-20130iAT19#,CT19#,ST19#199208-199608

58742BPROTECTOR, QUARTER PANEL, LH

main58742-20120iAT19#,CT19#,ST19#199208-199608

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main55774-20090iAT19#,CT19#,ST19#199208-199608

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main55775-20070iAT19#,CT19#,ST19#199208-199608

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-20020iAT19#,CT19#,ST19#199208-199608

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-20020iAT19#,CT19#,ST19#199208-199608

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-20903iAT19#,CT19#,ST19#199208-199608

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-20903iAT19#,CT19#,ST19#199208-199608

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-20220iAT19#,CT19#,ST19#199208-199608

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-20210iAT19#,CT19#,ST19#199208-199608

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-20430iAT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI199208-199608

main61131-20440iAT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL199208-199608

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-20380iAT19#,CT19#,ST19#199208-199608

61211RAIL, ROOF SIDE, OUTER RH

main61211-20250iAT19#,CT19#,ST19#199208-199608

61212RAIL, ROOF SIDE, OUTER LH

main61212-20250iAT19#,CT19#,ST19#199208-199608

61231RAIL, ROOF SIDE, INNER RH

main61231-20380iAT19#,CT19#,ST19#199208-199608

61232RAIL, ROOF SIDE, INNER LH

main61232-20370iAT19#,CT19#,ST19#199208-199608

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-20080iAT19#,CT19#,ST19#199208-199608

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-20080iAT19#,CT19#,ST19#199208-199608

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-20080iAT19#,CT19#,ST19#199208-199608

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-20080iAT19#,CT19#,ST19#199208-199608

61311BPILLAR, CENTER BODY, OUTER RH

main61311-20250iAT19#,CT19#,ST19#199208-199608

61312BPILLAR, CENTER BODY, OUTER LH

main61312-20320iAT19#,CT19#,ST19#199208-199608

61343APILLAR, CENTER BODY, INNER RH

main61343-20120iAT19#,CT19#,ST19#199208-199608

61344APILLAR, CENTER BODY, INNER LH

main61344-20120iAT19#,CT19#,ST19#199208-199608

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-20130iAT19#,CT19#,ST19#199208-199608

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-20110iAT19#,CT19#,ST19#199208-199608

61611PANEL, QUARTER, RH

main61601-2B750iAT19#,CT19#,ST19#199208-199608

sub61601-2B916

61612PANEL, QUARTER, LH

main61602-2D200iAT19#,CT19#,ST19#199208-199608

sub61602-2D916

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20190iAT19#,CT19#,ST19#199208-199608

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20190iAT19#,CT19#,ST19#199208-199608

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20270iAT19#,CT19#,ST19#199208-199608

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20250iAT19#,CT19#,ST19#199208-199608

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-2B903iAT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI199208-199608

main61603-2B904iAT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL199208-199608

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-2B903iAT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI199208-199608

main61604-2B904iAT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL199208-199608

61697DHOUSING, QUARTER PANEL END, RH

main61697-20050iAT19#,CT19#,ST19#199208-199608

61698DHOUSING, QUARTER PANEL END, LH

main61698-20050iAT19#,CT19#,ST19#199208-199608

61731BPANEL, ROOF SIDE, INNER RH

main61731-20290iAT19#,CT19#,ST19#199208-199608

61732BPANEL, ROOF SIDE, INNER LH

main61732-20290iAT19#,CT19#,ST19#199208-199608

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20200iAT19#,CT19#,ST19#199208-199608

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20190iAT19#,CT19#,ST19#199208-199608

61824PLATE, NOISE CONTROL, NO.1

main61824-20120×4iAT19#,CT19#,ST19#199208-199305

61838BPLATE, NOISE CONTROL, NO.5

main61838-20050×4iAT19#,CT19#,ST19#199208-199608

62151BPAD, COWL SIDE SILENCER

main62939-32020×2iAT19#,CT19#,ST19#199208-199608

62553DPAD, PILLAR, NO.3

main62553-20040×2iAT19#,CT19#,ST19#199208-199302

63344FPAD, ROOF SILENCER, NO.4

main63344-20100×4iAT19#,CT19#,ST19#199208-199408

64751CBRACKET, LUGGAGE COMPARTMENT COVER, NO.1, RH

main64751-20030iAT19#,CT19#,ST19#199208-199401

64752CBRACKET, LUGGAGE COMPARTMENT COVER, NO.1, LH

main64751-20030iAT19#,CT19#,ST19#199208-199401

8271520500BRACKET,WIRING HARNESS CLAMP

main82715-20500

9033330002

main90333-30002

9095001025

main90950-01025

9095001392

main90950-01392

9095001515

main90950-01515

9095001824

main90950-01824

9165560820

main91655-60820

60 parts on this diagram · 1 diagram in section
