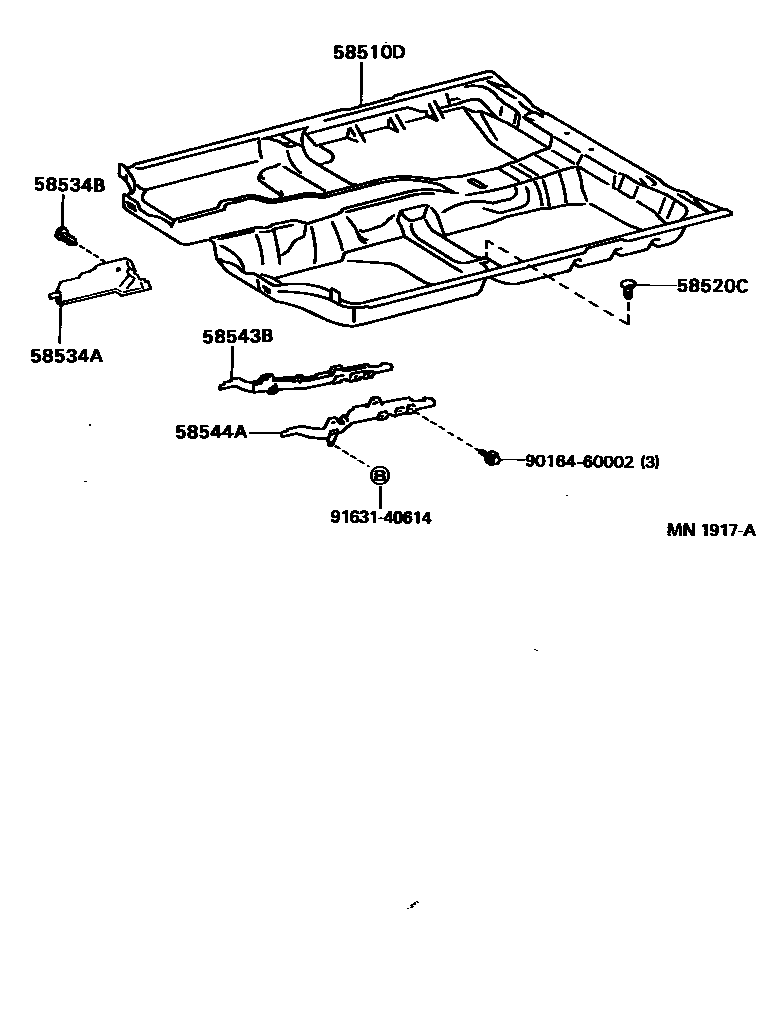

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-2D500-B0iAT19#,CT19#,ST19#199208-199401

GRAY,TRIM1#

sub58510-2D500

main58510-2D500-B1iAT19#,CT19#,ST19#199401-199408

SHADOW GRAY,TRIM1#

sub58510-2D500

main58510-2D500-B2iAT19#,CT19#,ST195199408-199608

SHADOW GRAY,TRIM1#

sub58510-2D500

main58510-2D500-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

ROSE,TRIM4#

sub58510-2D500

main58510-2D500-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub58510-2D500

main58510-2D510-B0iAT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI199208-199401

sub58510-2D510

main58510-2D510-B1iAT19#,CT19#,ST19#199401-199408

sub58510-2D510

main58510-2D510-B2iAT19#,CT19#,ST195199408-199608

sub58510-2D510

main58510-2D510-E0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

sub58510-2D510

main58510-2D510-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

sub58510-2D510

main58510-2D520-B0iST190..SEEXT199208-199306

GRAY,TRIM1#

main58510-2D520-E0iST190..SEEXT199208-199306

ROSE,TRIM4#

main58510-2D530-B0iST190..SEEXT199208-199306

main58510-2D530-E0iST190..SEEXT199208-199306

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P0iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199208-199608

GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-P0iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

GRAY,TRIM1#,4#

sub90467-06016

sub90467-07049

58534AMAT, TRANSMISSION COVER

main58534-20010iAT19#,ST195..SG,SGI199208-199608

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07042-C0iAT19#,ST195..SG,SGI199208-199608

BLACK,TRIM1#,4#

sub90467-07042

sub90467-06175

58543BBRACKET, FLOOR CARPET, RH

main58543-20050iAT19#,CT19#,ST19#199208-199608

58544ABRACKET, FLOOR CARPET, LH

main58544-20050iAT19#,CT19#,ST19#199208-199608

9016460002

main90164-60002

9163140614

main91631-40614

8 parts on this diagram · 1 diagram in section
