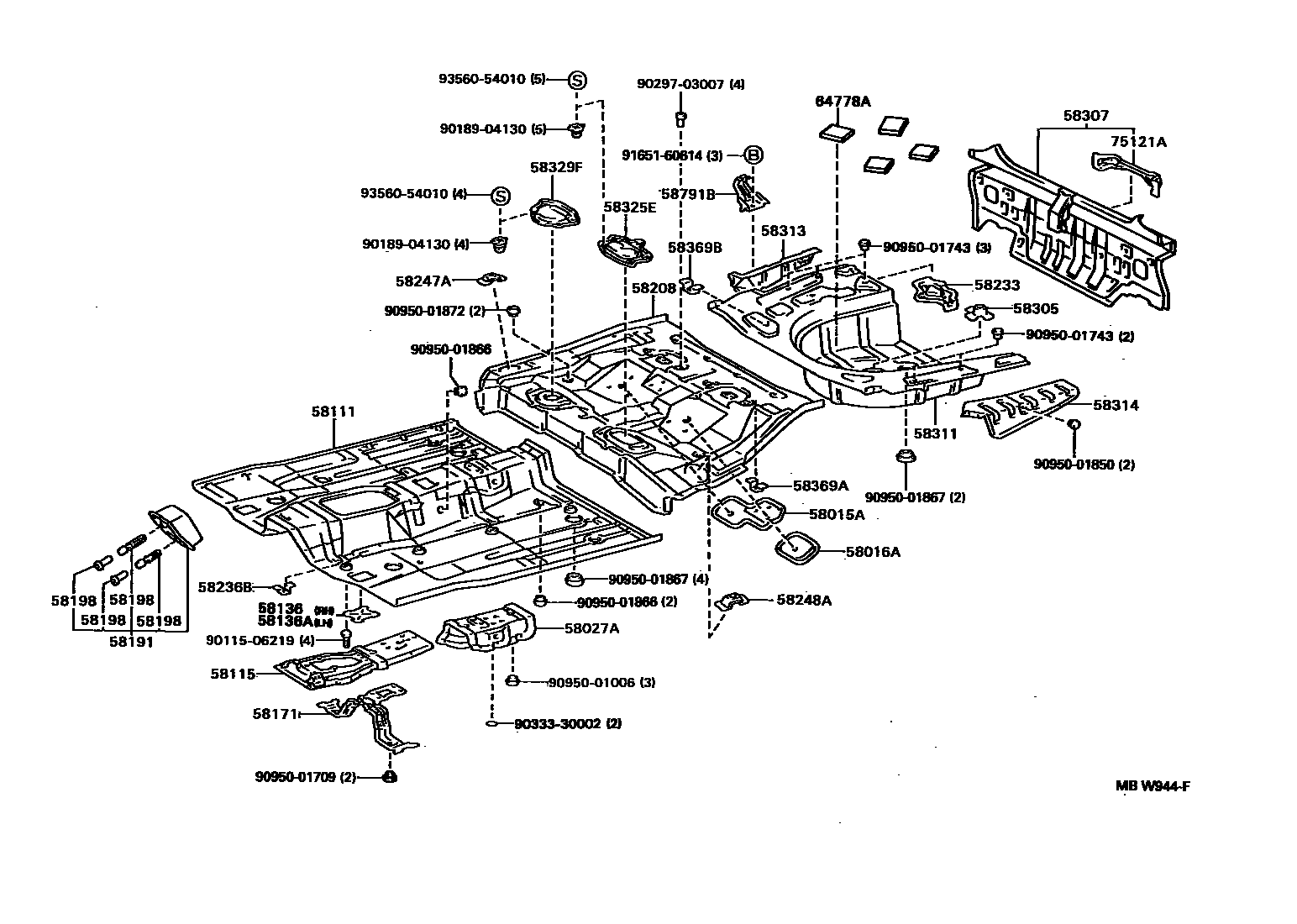

FLOOR PAN & LOWER BACK PANEL

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32040iAT19#,CT19#,ST19#199208-199608

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20070iAT19#,CT19#,ST19#199305-199501

main58016-20071iAT19#,CT19#,ST195199501-199608

sub58016-32031

main58016-32030iAT19#,CT19#,ST19#199208-199305

sub58016-32031

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20100iAT19#,CT190,ST190199208-199505

main58027-20110iCT195,ST195199208-199505

main58027-20120iAT19#,CT190199505-199506

main58027-20130iCT195,ST195199505-199506

main58027-20160iAT19#,CT190199506-199608

main58027-20170iCT195,ST195199506-199608

58111PAN, FRONT FLOOR

main58111-20160iAT19#,CT19#,ST19#199208-199505

main58111-20190iAT19#,CT19#,ST195199505-199608

sub58111-20191

sub58103-20042

sub58103-20052

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58103-20040iAT19#,CT19#,ST19#199208-199504

main58103-20041iAT19#,CT19#,ST195199504-199608

sub58103-20042

58136COVER, FRONT FLOOR HOLE

main58136-20020iAT19#,CT19#,ST19#199208-199608

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20030iAT19#,CT19#,ST19#199208-199608

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20090iAT19#,CT19#,ST19#199208-199608

58191FOOTREST, FRONT FLOOR

main58191-20050iAT19#,CT19#,ST19#199208-199608

58198CLIP, FOOTREST

main58198-20130iAT19#,CT19#,ST19#199208-199608

main58198-20140iAT19#,CT19#,ST19#199208-199608

L=84.5

main58198-32020×2iAT19#,CT19#,ST19#199208-199608

L=28.5

58208PAN, CENTER FLOOR

main58211-20320iAT190..M;AT190..SGI;AT191,192,CT190,ST190..SG,SGI,SX,SXI199208-199608

main58211-20330iAT190..S;AT191,CT190,ST190..SE,SEEXT,SL199208-199608

main58211-20340iCT195,ST195..SG,SX199208-199608

main58211-20350iCT195,ST195..SE199208-199608

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-20070iAT19#,CT19#,ST19#199208-199608

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58266-14050×2iAT19#,CT190,ST190199208-199608

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-20030iAT19#,CT19#,ST19#199208-199608

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-20020iAT19#,CT19#,ST19#199208-199608

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-20040iAT19#,CT19#,ST19#199208-199608

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-2B070iAT19#,CT19#,ST195..SG,SGI199208-199408

main58307-2B080iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

main58307-2B090iCT19#,ST19#..SE,SL199208-199408

58311PAN, REAR FLOOR

main58311-20320iAT19#,CT19#,ST19#199208-199608

sub58311-21060

58313PANEL, REAR FLOOR SIDE, RH

main58305-20030iAT19#,CT19#,ST19#199208-199608

58314PANEL, REAR FLOOR SIDE, LH

main58314-20320iAT19#,CT19#,ST19#199208-199608

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32030iAT19#,CT19#,ST19#199208-199608

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-32010iCT195,ST195199208-199608

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010×4iAT19#,CT19#,ST19#199208-199608

58369BBRACKET, FUEL TUBE, NO.3

main58369-20020×2iAT19#,CT19#,ST195199601-199608

main58369-32010×2iAT19#,CT19#,ST19#199208-199601

58791BCARRIER, JACK

main58791-20090iAT19#,CT19#,ST19#199208-199608

64778APROTECTOR, SPARE WHEEL

main64778-14020×4iCT195199208-199505

75121ABRACKET, REAR LICENSE PLATE

main75121-12030iAT19#,CT19#,ST19#199208-199608

9011506219

main90115-06219

9018904130

main90189-04130

9029703007

main90297-03007

9033330002

main90333-30002

9095001006

main90950-01006

9095001709

main90950-01709

9095001743

main90950-01743

9095001850

main90950-01850

9095001866

main90950-01866

9095001867

main90950-01867

9095001872

main90950-01872

9165160614

main91651-60614

9356054010

main93560-54010

40 parts on this diagram · 1 diagram in section
