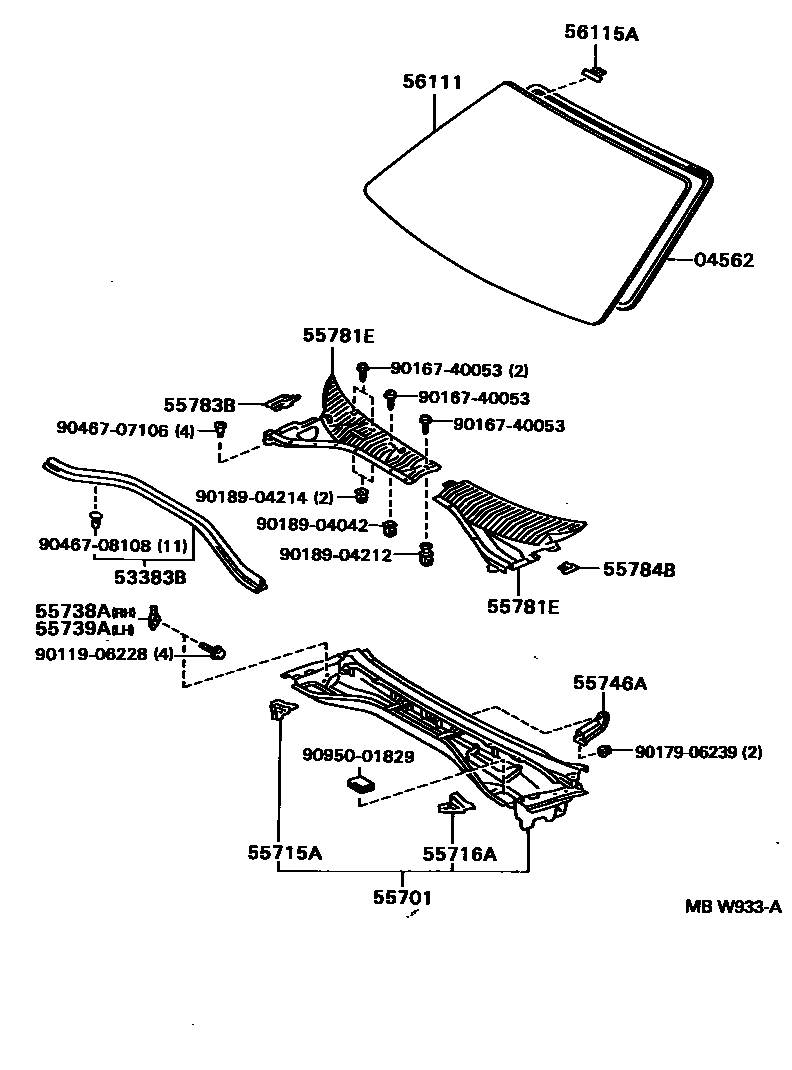

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAT19#,CT19#,ST19#199208-199608

53383BSEAL, HOOD TO COWL TOP

main53383-20160iAT19#,CT19#,ST19#199208-199608

55701PANEL SUB-ASSY, COWL

main55700-2B010iAT190,191,ST19#199208-199608

main55700-2B030iAT192,CT19#199208-199608

55715ABRACE, COWL TOP TO APRON, RH

main55715-20120iAT19#,CT19#,ST19#199208-199608

55716ABRACE, COWL TOP TO APRON, LH

main55716-20090iAT19#,CT19#,ST19#199208-199608

55738ASTOPPER, HOOD, RH

main55738-20060iAT19#,CT19#,ST19#199208-199608

55739ASTOPPER, HOOD, LH

main55739-20060iAT19#,CT19#,ST19#199208-199608

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-20100iAT19#,CT19#,ST19#199208-199608

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20170iAT19#,CT19#,ST19#199208-199608

main55708-20180iAT19#,CT19#,ST19#199208-199608

main55709-20090iAT19#,CT19#,ST19#199208-199608

main55709-20100iAT19#,CT19#,ST19#199208-199608

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20160iAT19#,CT19#,ST19#199208-199608

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20090iAT19#,CT19#,ST19#199208-199608

56111GLASS, WINDSHIELD

main56111-2B210iAT192..SG199304-199408

main56111-2B210iAT19#..SX,SXI199504-199608

main56111-2B220iAT192..SG199304-199307

sub56111-2B450

main56111-2B220iAT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI199208-199404

sub56111-2B450

main56111-2B230iAT192..SG199304-199307

main56111-2B230iAT19#,CT19#,ST195199208-199608

main56111-2B240iAT19#,ST19#..SL,SX,SXI199208-199404

sub56111-2B470

main56111-2B240iCT190..SG199308-199404

sub56111-2B470

main56111-2B250iAT19#,ST19#..SL,SX,SXI199208-199608

main56111-2B250iCT190..SG199308-199408

main56111-2B260iCT19#,ST19#..SE,SEEXT199208-199404

sub56111-2B480

main56111-2B270iCT19#,ST19#..SE,SEEXT199208-199408

main56111-2B280iAT19#,CT19#,ST195..SG,SGI199304-199408

main56111-2B280iAT19#..SX,SXI199504-199608

main56111-2B330iCT19#,ST19#..SE,SEEXT199208-199408

main56111-2B340iCT19#,ST19#..SE,SEEXT199208-199404

sub56111-2B460

main56111-2B450iAT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI199404-199411

sub56111-2B520

main56111-2B460iCT19#,ST19#..SE,SEEXT199404-199408

main56111-2B470iCT190..SG199404-199408

sub56111-2B540

main56111-2B470iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199411

sub56111-2B540

main56111-2B480iCT19#,ST19#..SE,SEEXT199404-199408

main56111-2B520iAT19#,CT19#,ST195199411-199608

main56111-2B540iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199411-199608

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20040iAT19#,CT19#,ST19#199208-199608

9011906228

main90119-06228

9016740053

main90167-40053

9017906239

main90179-06239

9018904042

main90189-04042

9018904212

main90189-04212

9018904214

main90189-04214

9046707106

main90467-07106

9046708108

main90467-08108

9095001829

main90950-01829

22 parts on this diagram · 1 diagram in section
