INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-20080-B1iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

main55300-20080-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

main55300-20080-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main55300-20090-B1iST190..SEEXT,SL199208-199303

main55300-20090-E0iST190..SEEXT199208-199408

main55300-20090-E1iAT191..SEEXT199408-199608

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55351-20190iAT19#,CT19#,ST19#199208-199608

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20190iAT19#,CT19#,ST19#199208-199608

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-20100iAT19#,CT19#,ST19#199208-199608

55328PIN, INSTRUMENT PANEL, NO.1

main55328-20080iAT19#,CT19#,ST19#199208-199608

CENTER

main55329-20040×2iAT19#,CT19#,ST19#199208-199608

RH,LH

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20170iAT19#,CT19#,ST19#199208-199608

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-20050×2iAT19#,CT19#,ST19#199208-199608

55346ACLIP, INSTRUMENT PANEL, NO.2

main90468-04160×2iAT19#,CT19#,ST19#199208-199608

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20660-B1iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

main55401-20660-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

main55401-20660-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20120iAT19#,CT19#,ST195..SG,SGI199208-199608

main55405-20170iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-20080-B1iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

main55408-20080-E0iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

main55408-20080-E1iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-20650iAT19#,CT19#,ST19#199208-199608

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20290-B1iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

main55432-20290-E0iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

main55432-20290-E1iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

main55432-20300-B1iCT190..SG199308-199408

main55432-20300-E0iCT190..SG199308-199408

main55432-20300-E1iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

55440CBOX ASSY, INSTRUMENT PANEL

main55440-20130-B1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main55440-20130-E0iCT190..SG199308-199408

main55440-20130-E1iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

55444ASPRING, INSTRUMENT PANEL BOX

main55444-20070×2iCT190..SG199412-199608

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iAT19#,CT19#,ST19#199208-199608

55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

main55049-20010-B1iST190..SEEXT,SL199208-199305

SHADOW GRAY,TRIM1#

main55049-20010-E0iST190..SEEXT199208-199408

DK.ROSE,TRIM4#

main55049-20010-E1iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20240-B1iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

main55650-20240-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

main55650-20240-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

9011906056

main90119-06056

9011906106

main90119-06106

9011906520

main90119-06520

9016350010

main90163-50010

9017906026

main90179-06026

9017906129

main90179-06129

9018305045

main90183-05045

9018305103

main90183-05103

9046708165

main90467-08165

9046708166

main90467-08166

9046708167

main90467-08167

9046708171

main90467-08171

9046708172

main90467-08172

9046708173

main90467-08173

9046715020

main90467-15020

9046804152

main90468-04152

9046804160

main90468-04160

9046805096

main90468-05096

9054103078

main90541-03078

9165160816

main91651-60816

9354013008

main93540-13008

9356755016

main93567-55016

9356815014

main93568-15014

9356815016

main93568-15016

9356855014

main93568-55014

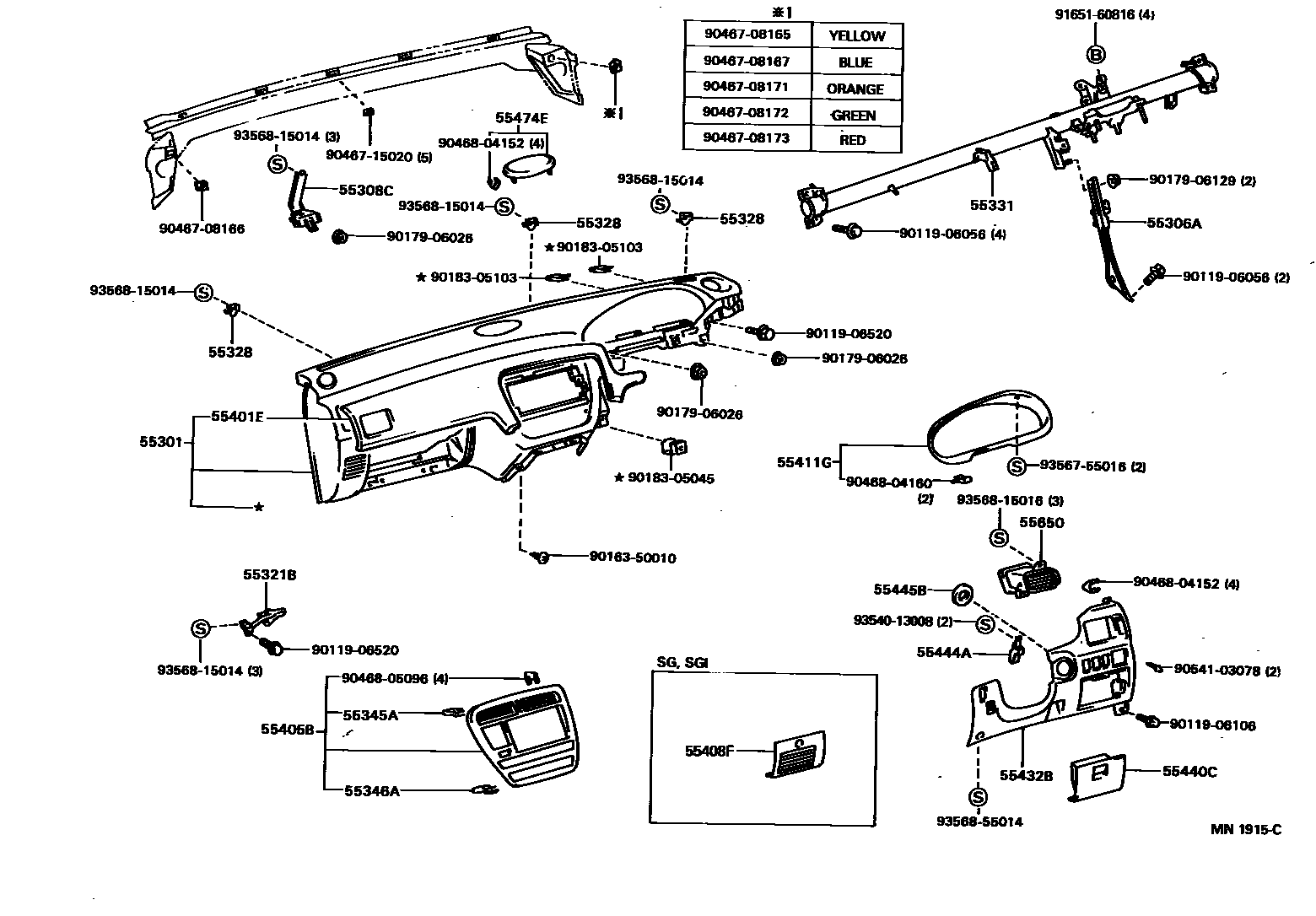

43 parts on this diagram · 2 diagrams in section
