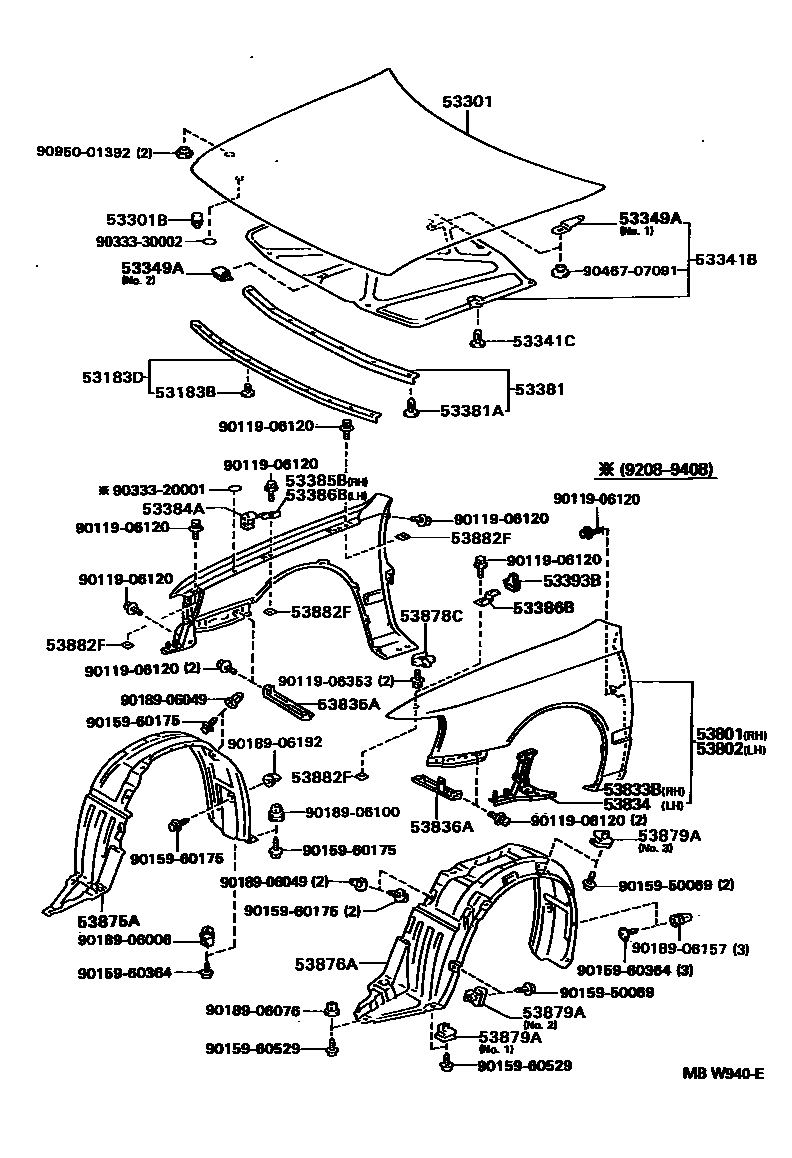

HOOD & FRONT FENDER
53183BCLIP(FOR HEADLAMP COVER SEAL)
53183DSEAL, HEADLAMP COVER TO HOOD
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882FSEAL, FRONT FENDER
9011906120
main90119-06120
9011906353
main90119-06353
9015950069
main90159-50069
9015960175
main90159-60175
9015960364
main90159-60364
9015960529
main90159-60529
9018906006
main90189-06006
9018906049
main90189-06049
9018906076
main90189-06076
9018906100
main90189-06100
9018906157
main90189-06157
9018906192
main90189-06192
9033320001
main90333-20001
9033330002
main90333-30002
9046707091
main90467-07091
9095001392
main90950-01392
40 parts on this diagram · 1 diagram in section
