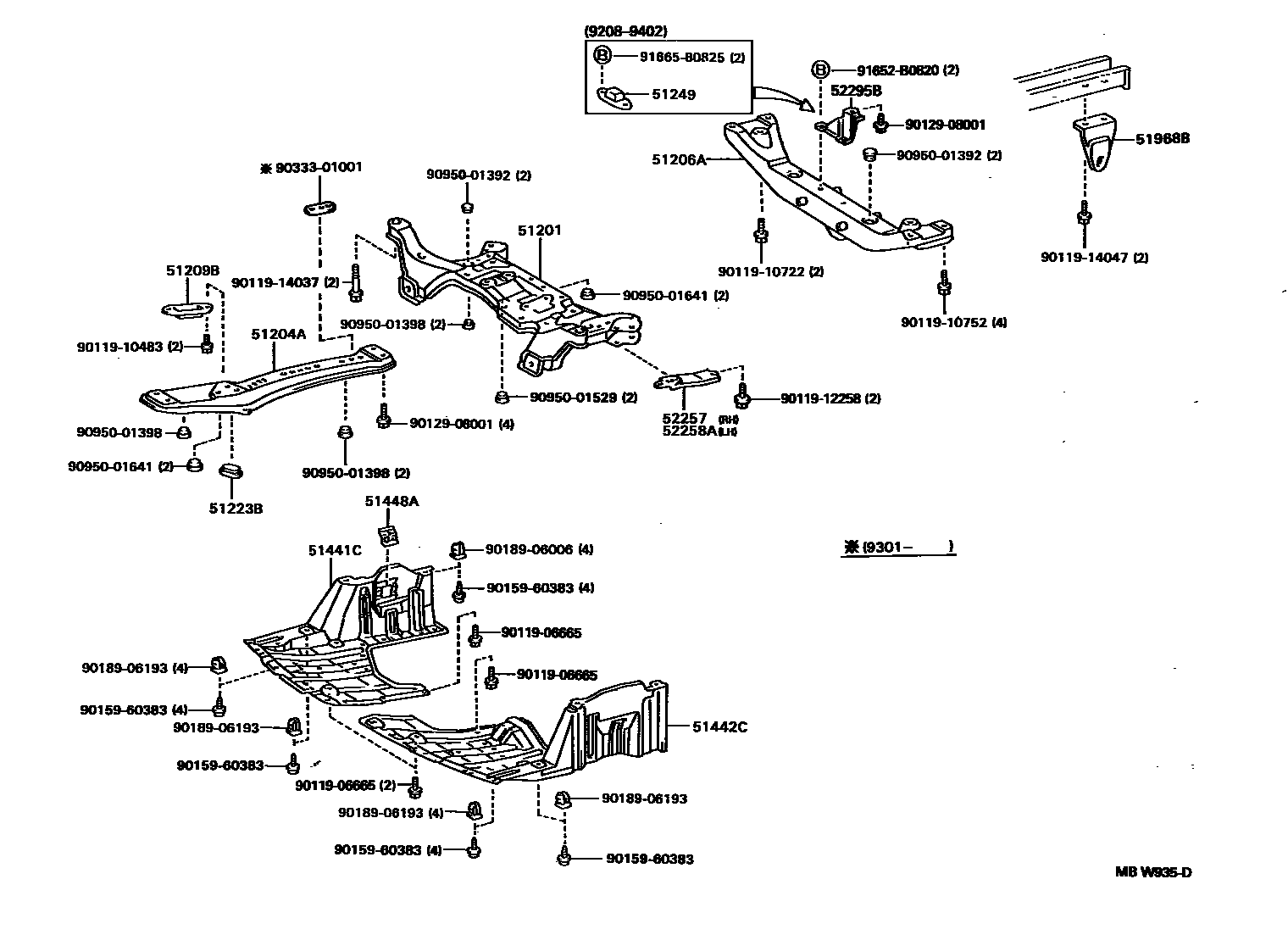

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20250iAT19#,CT190,ST190199208-199210

main51201-20251iAT19#,CT190,ST190199210-199402

main51201-20252iAT19#,CT190,ST190199402-199601

main51201-20290iCT195,ST195199208-199608

main51201-20320iAT19#,CT190199601-199608

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT19#,CT190,ST190199208-199608

sub51204-20111

main51204-20120iCT195,ST195199208-199410

main51204-20121iCT195,ST195199410-199608

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20050iAT19#,CT190,ST190199208-199608

main51206-20060iCT195,ST195199208-199608

sub51206-21050

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iST190..ATM;CT19#,ST195199208-199608

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT19#,CT19#,ST19#199208-199608

51249DAMPER, REAR SUSPENSION MEMBER

main51249-20020iAT19#,CT190,ST190199208-199402

51441CCOVER, ENGINE UNDER, RH

main51441-20310iAT19#,CT190,ST19#199208-199312

main51441-20311iAT19#,CT190,ST19#199312-199405

main51441-20312iAT19#,CT190,ST19#199405-199512

main51441-20313iAT19#,CT190,ST195199512-199608

main51441-20350iCT195199208-199312

main51441-20351iCT195199312-199405

main51441-20352iCT195199405-199512

main51441-20353iCT195199512-199608

51442CCOVER, ENGINE UNDER, LH

main51442-20370iAT19#,CT190,ST19#..MTM199208-199512

main51442-20371iAT19#,CT190,ST195..MTM199512-199608

main51442-20380iAT19#,CT190,ST190..ATM199208-199512

main51442-20381iAT19#,CT190..ATM199512-199608

main51442-20390iST195..ATM199208-199512

main51442-20391iST195..ATM199512-199608

main51442-20430iCT195199208-199512

main51442-20431iCT195199512-199608

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT19#,CT19#,ST19#199208-199608

51968BHOOK, TRANSPORT, REAR LH

main51968-20100iAT19#,CT19#,ST19#199208-199608

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT19#,CT190,ST190199208-199608

main52257-20020iCT195,ST195199208-199608

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT19#,CT190,ST190199208-199608

main52258-20020iCT195,ST195199208-199608

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-32010iCT195,ST195199208-199608

sub52295-33010

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20020iAT19#,CT190,ST190199402-199608

9011906665

main90119-06665

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912258

main90119-12258

9011914037

main90119-14037

9011914047

main90119-14047

9012908001

main90129-08001

9015960383

main90159-60383

9018906006

main90189-06006

9018906193

main90189-06193

9033301001

main90333-01001

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

91652B0820

main91652-B0820

91665B0825

main91665-B0825

32 parts on this diagram · 2 diagrams in section
