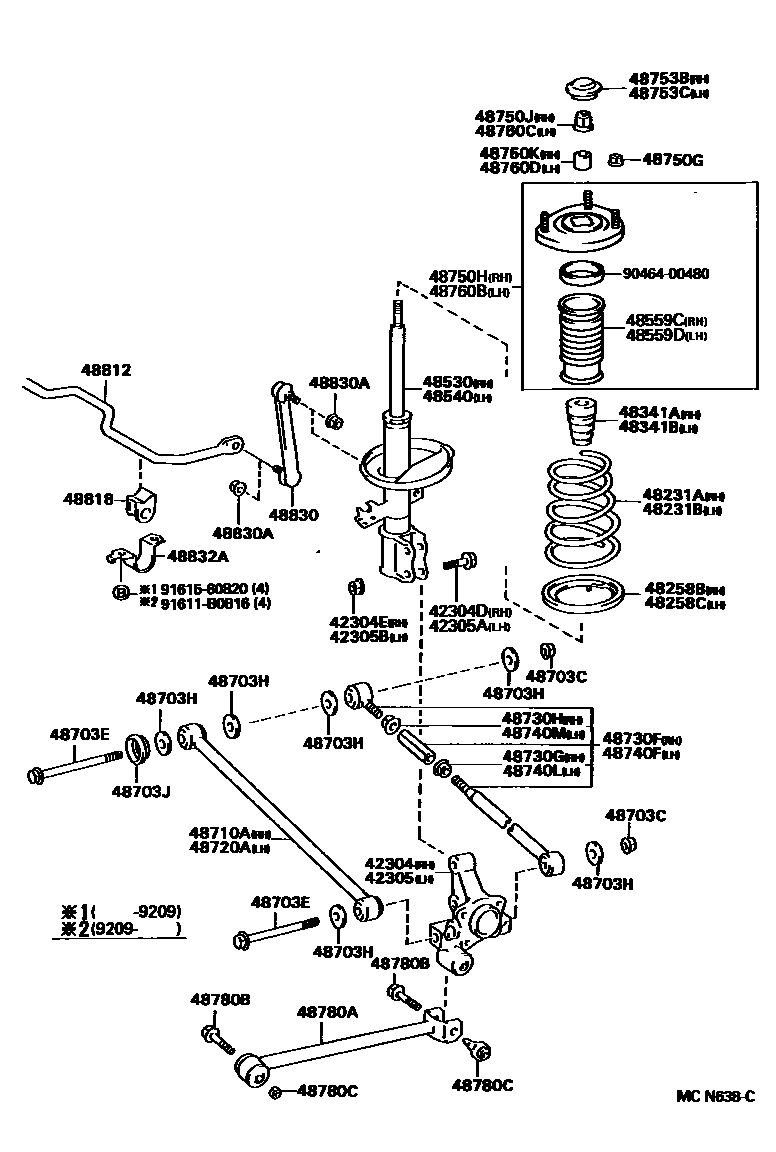

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20140iAT19#..SG,SGI199408-199601

175/70R14,5.5JJ

main42304-20160iCT190;AT19#,ST190..SE,SEEXT,SX,SXI199208-199601

main42304-20180iAT191,ST190..SL199208-199601

main42304-20190iAT191,ST190..SL199208-199601

main42304-20200iCT195,ST195199208-199608

main42304-20210iCT195,ST195199208-199608

main42304-20220iAT19#..SG,SGI199208-199601

main42304-20221iAT19#..SG,SGI199601-199608

main42304-20230iAT19#..SG,SGI199408-199601

main42304-20231iAT19#..SG,SGI199601-199608

main42304-20240iAT191..SL199601-199608

main42304-20300iCT190;AT19#..SEEXT,SX,SXI199601-199608

main42304-20320iCT190;AT19#..SEEXT,SX,SXI199601-199608

175/70R14,5.5JJ

main42304-20380iAT191..SL199601-199608

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001×2iAT19#,CT19#,ST19#199208-199608

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001×2iAT19#,CT19#,ST19#199208-199608

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20140iCT190;AT19#,ST190..SE,SEEXT,SX,SXI199208-199601

main42305-20160iAT19#..SG,SGI199408-199601

main42305-20180iAT191,ST190..SL199208-199601

sub42305-20240

main42305-20190iAT191,ST190..SL199208-199601

main42305-20200iCT195,ST195199208-199608

main42305-20210iCT195,ST195199208-199608

main42305-20220iAT19#..SG,SGI199208-199601

main42305-20221iAT19#..SG,SGI199601-199608

main42305-20230iAT19#..SG,SGI199408-199601

main42305-20231iAT19#..SG,SGI199601-199608

main42305-20300iCT190;AT19#..SEEXT,SX,SXI199601-199608

main42305-20320iCT190;AT19#..SEEXT,SX,SXI199601-199608

175/70R14,5.5JJ

main42305-20380iAT191..SL199601-199608

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001×2iAT19#,CT19#,ST19#199208-199608

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001×2iAT19#,CT19#,ST19#199208-199608

48231ASPRING, COIL, REAR RH

main48231-2D690iAT19#..MTM..(SG,SGI)199208-199408

main48231-2D820iCT195;AT19#..SX,SXI199208-199408

main48231-2D830iST195199208-199408

sub48231-2B810

main48231-2D860iAT192..ATM..SG;AT190,191..SGI,SL199408-199608

main48231-2D890iAT19#..ATM..(SG,SGI)199208-199408

sub48231-2B201

main48231-2G060iCT195,ST195199408-199608

main48231-2G230iAT192..MTM..SG199408-199608

48231BSPRING, COIL, REAR LH

main48231-2D690iAT19#..ATM..(SG,SGI)199208-199408

main48231-2D820iCT195;AT19#..SX,SXI199208-199408

main48231-2D830iST195199208-199408

sub48231-2B810

main48231-2D860iCT190,ST190199208-199408

main48231-2D890iAT19#..ATM..(SG,SGI)199208-199408

sub48231-2B201

main48231-2G060iCT195,ST195199408-199608

main48231-2G230iAT192..MTM..SG199408-199608

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32010iAT19#,CT19#,ST19#199208-199608

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32010iAT19#,CT19#,ST19#199208-199608

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-20190iAT19#..SEEXT,SG,SGI,SX,SXI199208-199608

main48341-20210iCT190,ST190..SE,SEEXT,SG,SX199208-199608

main48341-32051iST190..SL199208-199212

main48341-32052iAT191,ST190..SL199212-199608

main48341-32070iCT195,ST195199208-199210

main48341-32071iCT195,ST195199210-199608

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-20190iAT19#..SEEXT,SG,SGI,SX,SXI199208-199608

main48341-20210iCT190,ST190..SE,SEEXT,SG,SX199208-199608

main48341-32051iST190..SL199208-199212

main48341-32052iAT191,ST190..SL199212-199608

main48341-32070iCT195,ST195199208-199210

main48341-32071iCT195,ST195199210-199608

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20860iCT195,ST195199208-199402

main48530-29375iCT190199408-199608

main48530-29395iCT195,ST195199402-199608

sub48530-29715

main48530-29445iAT19#..SEEXT,SG,SGI,SX,SXI199408-199608

sub48530-29505

main48530-29455iAT191..SL199408-199608

sub48530-29765

main48530-2B150iST190..SL199208-199408

sub48530-20820

main48530-2B170iCT190199208-199408

main48530-2B210iAT19#199208-199408

main48530-2B230iST190..SE,SEEXT,SX199208-199408

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20860iCT195,ST195199208-199402

main48540-29075iCT190199408-199608

main48540-29095iCT195,ST195199402-199608

sub48540-29275

main48540-29145iAT19#..SEEXT,SG,SGI,SX,SXI199408-199608

sub48540-29185

main48540-29155iAT191..SL199408-199608

sub48540-29315

main48540-2B150iST190..SL199208-199408

sub48540-20820

main48540-2B170iCT190199208-199408

main48540-2B210iAT19#199208-199408

main48540-2B230iST190..SE,SEEXT,SX199208-199408

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-20060iAT19#,CT19#,ST19#199208-199608

sub48559-20040

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-20060iAT19#,CT19#,ST19#199208-199608

sub48559-20040

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12100×2iCT195,ST195199208-199608

main90179-14019×4iAT19#,CT190,ST190199208-199608

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12126×2iCT195,ST195199208-199608

main90901-09001×2iAT19#,CT190,ST190199208-199608

main90901-19001×2iAT19#,CT190,ST190199208-199608

main90901-19002×4iCT195,ST195199208-199608

main90901-19003×2iCT195,ST195199208-199608

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×6iAT19#,CT190,ST190199208-199608

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-20030×2iAT19#,CT190199601-199608

main48715-32010×2iAT19#,CT190,ST190199208-199601

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20190iAT191,CT190..SE,SG,SL199408-199608

main48710-20230iAT19#..SEEXT,SG,SGI,SX,SXI199408-199608

main48710-20270iCT195,ST195199208-199608

main48710-20280iAT19#,CT190,ST190199208-199408

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20190iAT191,CT190..SE,SG,SL199408-199608

main48710-20230iAT19#..SEEXT,SG,SGI,SX,SXI199408-199608

main48710-20270iCT195,ST195199208-199608

main48710-20280iAT19#,CT190,ST190199208-199408

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-20160iAT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI199208-199608

main48730-20170iAT191,ST190..SL199208-199608

sub48730-20210

main48730-20180iCT195,ST195199208-199608

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAT19#,CT190,ST190199208-199608

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAT19#,CT190,ST190199208-199608

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-20180iCT195,ST195199208-199608

main48740-20050iAT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI199208-199608

main48740-20060iAT191,ST190..SL199208-199608

sub48730-20210

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAT19#,CT190,ST190199208-199608

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAT19#,CT190,ST190199208-199608

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122×6iAT19#,CT19#,ST19#199208-199608

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-20100iAT19#,CT19#,ST195199408-199608

sub48750-21020

main48750-20140iAT19#,CT19#,ST19#199208-199408

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAT19#,CT19#,ST19#199208-199506

main94184-61400iAT19#,CT19#,ST195199506-199608

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15012iAT19#,CT19#,ST19#199208-199408

main90387-15027iAT19#,CT19#,ST195199408-199608

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iAT19#,CT19#,ST19#199208-199608

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iAT19#,CT19#,ST19#199208-199608

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-20100iAT19#,CT19#,ST195199408-199608

sub48750-21020

main48750-20140iAT19#,CT19#,ST19#199208-199408

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAT19#,CT19#,ST19#199208-199506

main94184-61400iAT19#,CT19#,ST195199506-199608

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15012iAT19#,CT19#,ST19#199208-199408

main90387-15027iAT19#,CT19#,ST195199408-199608

48780AROD ASSY, STRUT, REAR

main48780-12010×2iCT195,ST195199208-199605

main48780-20080×2iAT19#,CT190,ST190199208-199608

main48780-32060×2iCT195,ST195199605-199608

48780BBOLT(FOR STRUT ROD)

main90119-12131×4iAT19#,CT19#,ST19#199208-199608

48780CNUT(FOR STRUT ROD)

main90179-12062×2iAT19#,CT19#,ST19#199208-199408

main90179-12091×2iAT19#,CT19#,ST195199408-199608

main90179-12114×2iAT19#,CT19#,ST19#199208-199608

48812BAR, STABILIZER, REAR

main48812-20700iAT191..SL199408-199608

main48812-20720iST190..SL199208-199408

main48812-20740iCT195,ST195199408-199608

main48812-20770iST190..SE,SEEXT,SX199208-199408

main48812-20810iST195199208-199408

48818BUSH, STABILIZER, REAR

main48818-20260×2iAT191..SL199408-199608

main48818-20270×2iST190..SL199208-199408

main48818-20290×2iCT195,ST195199408-199608

main48818-20310×2iST190..SE,SEEXT,SX199208-199408

main48818-32090×2iST195199208-199408

48830LINK ASSY, REAR STABILIZER

main48830-20010×2iAT191,ST190..SL199208-199608

main48830-32010×2iST190..SE,SEEXT,SX199208-199408

main48830-32040×2iST195199208-199408

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4iAT191,CT195,ST195..SE,SG,SL,SX199408-199608

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20080×2iST190;AT191..SL199208-199608

main48832-32050iST195199208-199408

main48832-32070iST195199208-199408

9046400480

main90464-00480

91611B0816

main91611-B0816

9161560820

main91615-60820

48 parts on this diagram · 4 diagrams in section
