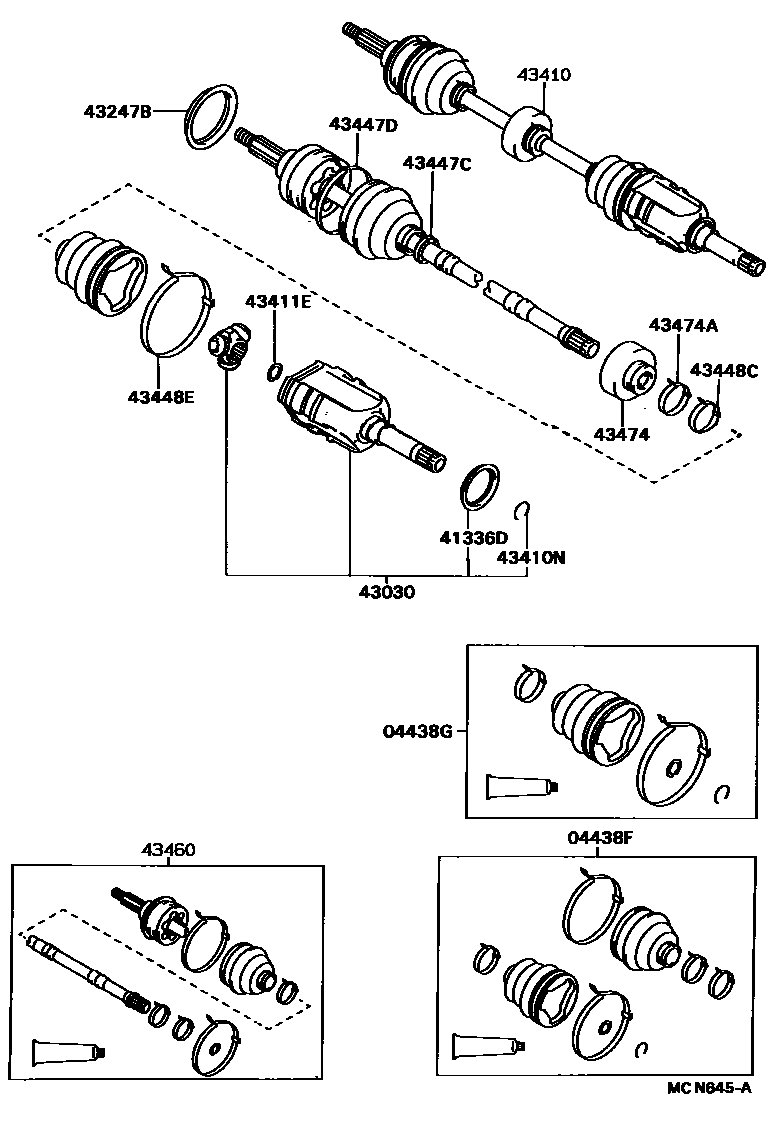

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
sub04428-12270
sub04438-12290
sub04438-20131
sub04438-12301
sub04438-12300
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
sub04438-12410
sub04438-12420
sub04438-12260
sub04438-12840
sub04438-20121
sub04438-32230
sub04438-32231
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
175/70R14,5.5JJ
43410SHAFT ASSY, FRONT DRIVE, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
sub43470-19306
43474DAMPER, DRIVE SHAFT
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
15 parts on this diagram · 5 diagrams in section
