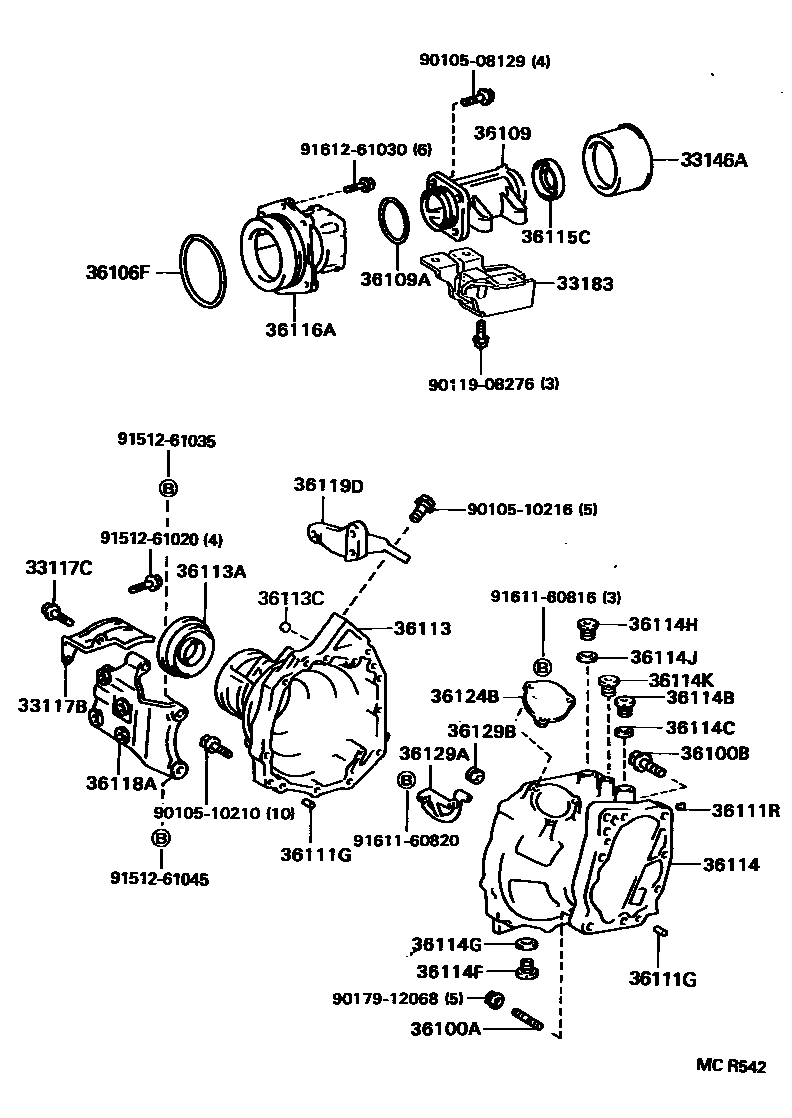

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1

33117BPROTECTOR, TRANSFER CASE

main33117-32030iST195199208-199608

33117CBOLT(FOR TRANSFER CASE PROTECTOR)

main90105-08040×2iST195199208-199608

sub91641-H0820

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30010iCT195,ST195199402-199408

main33146-30020iST195..ATM199208-199402

33183DAMPER, TRANSFER DYNAMIC

main33183-20030iST195199208-199608

sub33183-21030

main33183-20040iCT195199208-199608

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12018×3iCT195,ST195..MTM199208-199608

main90116-12027iST195..ATM199208-199608

main90116-12028×2iCT195,ST195199208-199608

main90116-12029×2iST195..ATM199208-199608

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12137iST195..ATM199208-199608

main90105-12161iST195..ATM199208-199608

main90105-12162iST195..ATM199208-199608

36106FRING, O (FOR TRANSFER PINION BEARING CAGE)

main90301-94001iST195..ATM199208-199608

main90301-99049iCT195,ST195..MTM199208-199608

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-20012iCT195,ST195..MTM199208-199608

main36109-32010iST195..ATM199208-199608

36109ARING, O (FOR TRANSFER EXTENSION HOUSING)

main90301-63005iCT195,ST195199208-199608

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×2iCT195,ST195..MTM199208-199608

main90250-12005×2iCT195,ST195199208-199608

main90254-10003×2iST195..ATM199208-199608

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-08002iCT195,ST195..MTM199208-199608

36113CASE, TRANSFER, RH

main36113-12030iCT195199208-199509

main36113-12050iCT195199509-199608

main36113-20030iST195..MTM199208-199509

main36113-20040iST195..MTM199509-199608

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-47003iCT195,ST195..MTM199208-199608

36113CPLUG (FOR TRANSFER CASE)

main90331-14004iCT195,ST195..MTM199402-199608

main90341-08001iST195..ATM199208-199608

36114CASE, TRANSFER, LH

main36114-12030iCT195,ST195..MTM199208-199509

main36114-12050iCT195,ST195..MTM199509-199608

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-22001iCT195,ST195..MTM199208-199608

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-22002iCT195,ST195..MTM199208-199608

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18006iCT195,ST195..MTM199208-199608

main90341-18021iST195..ATM199208-199608

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iCT195,ST195199208-199608

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iCT195,ST195..MTM199208-199608

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main90430-18008iCT195,ST195..MTM199208-199608

36114KPLUG, TRANSFER SHIFT DETENT BALL

main90341-12004iCT195,ST195..MTM199208-199509

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38032iCT195,ST195199208-199608

36116ACAGE, TRANSFER PINION BEARING

main36116-12010iCT195,ST195..MTM199208-199608

36118APLATE, TRANSFER STIFFENER, RH

main36118-12060iCT195199208-199608

main36118-32011iST195..MTM199208-199608

main36118-32020iST195..ATM199208-199608

36119DPLATE, TRANSFER STIFFENER, CENTER

main36119-12020iCT195199208-199608

main36119-32010iST195..MTM199208-199608

main36119-32020iST195..ATM199208-199402

main36119-32021iST195..ATM199402-199608

36124BCOVER, TRANSFER INSPECTION HOLE

main36124-12010iCT195,ST195..MTM199208-199608

main36124-32010iST195..ATM199208-199608

36129ATUBE, TRANSFER OIL

main36129-20010iCT195,ST195..MTM199208-199608

36129BCUSHION (FOR TRANSFER OIL TUBE)

main90540-06027iCT195,ST195..MTM199208-199608

9010508129

main90105-08129

9010510210

main90105-10210

9010510216

main90105-10216

9011908276

main90119-08276

9017912068

main90179-12068

9151261020

main91512-61020

9151261035

main91512-61035

9151261045

main91512-61045

9161160816

main91611-60816

9161160820

main91611-60820

9161261030

main91612-61030

40 parts on this diagram · 3 diagrams in section
