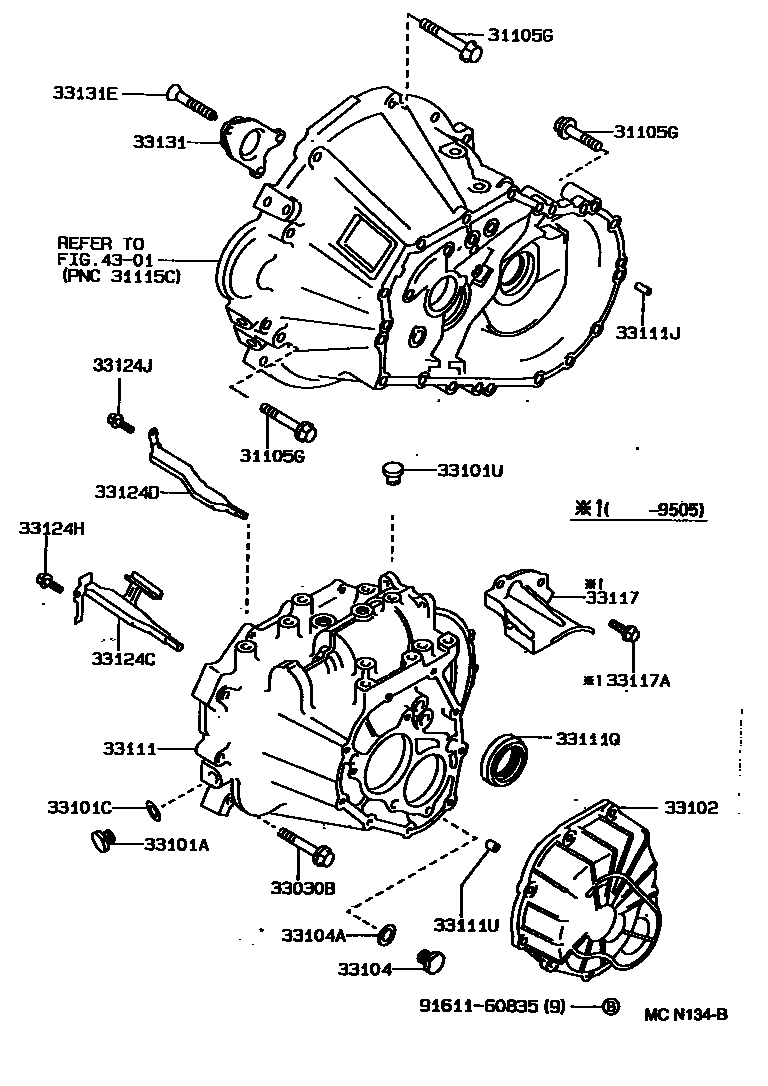

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C51 0002 1S50 0003 1E56F,E57F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT19#,ST19#..MTM199208-199608

sub91641-H0820

main90105-10077iAT19#,CT19#,ST19#..MTM199208-199608

main90119-12042iAT19#..MTM199208-199608

main90119-12168iCT19#,ST19#..MTM199208-199608

main91651-41022iCT195,ST195..MTM199208-199608

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCT190,ST190..MTM199208-199608

sub90105-08430

main90105-08064iAT19#..MTM199208-199608

sub90105-08353

main90105-08086iAT19#..MTM199208-199608

main90105-08126iCT195,ST195..MTM199208-199608

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT19#..MTM199208-199608

main90341-18033iCT195,ST195..MTM199208-199608

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT19#,CT19#,ST19#..MTM199208-199608

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03111iCT195,ST195..MTM199208-199608

sub90930-03148

main90930-03133iAT19#,CT190,ST190..MTM199208-199608

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT19#..MTM199208-199608

main33102-12022iAT19#..MTM199405-199408

main33102-12041iCT195,ST195..MTM199208-199608

sub33102-12042

main33102-33020iCT190,ST190..MTM199208-199608

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT19#,CT19#,ST19#..MTM199208-199608

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT19#,CT19#,ST19#..MTM199208-199608

33111CASE, MANUAL TRANSMISSION

main33101-12170iCT195,ST195..MTM199208-199608

sub33101-12171

main33111-16040iAT19#..MTM199208-199405

sub33111-16070

sub90109-12073

main33111-16060iAT19#..MTM199405-199505

sub33111-16070

sub90109-12073

main33111-16061iAT19#..MTM199505-199608

sub33111-16062

sub90109-12073

main33111-33030iCT190,ST190..MTM199208-199411

sub33111-33040

main33111-33031iCT190..MTM199411-199608

sub33111-32030

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCT190,ST190..MTM199208-199608

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34017iAT19#..MTM199208-199608

sub90311-34028

main90311-44003iCT195,ST195..MTM199208-199608

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT19#..MTM199208-199608

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iAT19#..MTM199208-199505

main33117-20020iCT195,ST195..MTM199208-199608

main33117-32011iCT190,ST190..MTM199208-199608

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT19#,CT19#,ST19#..MTM199208-199608

sub91641-H0820

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT19#..MTM199208-199503

main33124-12012iAT19#..MTM199503-199608

sub33124-20050

main33124-12030iCT195,ST195..MTM199208-199608

main33124-33010iCT190,ST190..MTM199208-199608

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT19#..MTM199208-199405

main33124-12021iAT19#..MTM199405-199608

main33124-12041iCT195,ST195..MTM199208-199608

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iCT195,ST195..MTM199208-199608

sub90119-08830

main91611-60820iAT19#..MTM199208-199608

sub91611-G0820

main91651-60618iCT190,ST190..MTM199208-199608

33124JBOLT, W/WASHER

main91611-60820iAT19#..MTM199208-199608

sub91611-G0820

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT19#..MTM199208-199607

sub33131-12080

main33131-12080iAT19#..MTM199607-199608

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT19#..MTM199208-199608

4301

9161160835

main91611-60835

22 parts on this diagram · 3 diagrams in section
