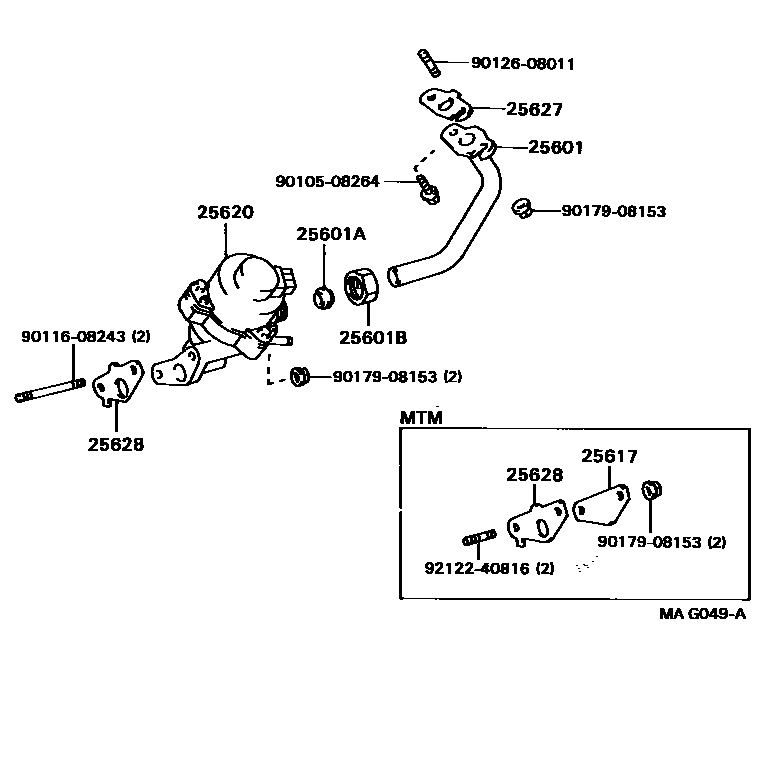

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-16060i4AFE..AT190..ATM199208-199408

main25601-64030i2C..CT19#199208-199608

sub25601-64031

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i4AFE..AT190..ATM199208-199408

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22005i4AFE..AT190..ATM199208-199408

25617PLATE, EGR HOLE COVER

main25617-16020i4AFE..AT190..MTM199208-199408

25620VALVE ASSY, EGR

main25620-16230i4AFE..AT190..ATM199208-199408

main25620-64080i2C..CT19#199208-199408

main25620-64150i2C..CT19#..MTM199408-199608

25627GASKET, EGR VALVE

main25627-16040i4AFE..AT190..ATM199208-199408

main25627-64030i2C..CT19#199208-199608

25628GASKET, EGR INLET

main25628-16030i4AFE..AT190199208-199408

main25628-64030i2C..CT19#199208-199608

9010508264

main90105-08264

9011608243

main90116-08243

9012608011

main90126-08011

9017908153

main90179-08153

9212240816

main92122-40816

12 parts on this diagram · 2 diagrams in section
