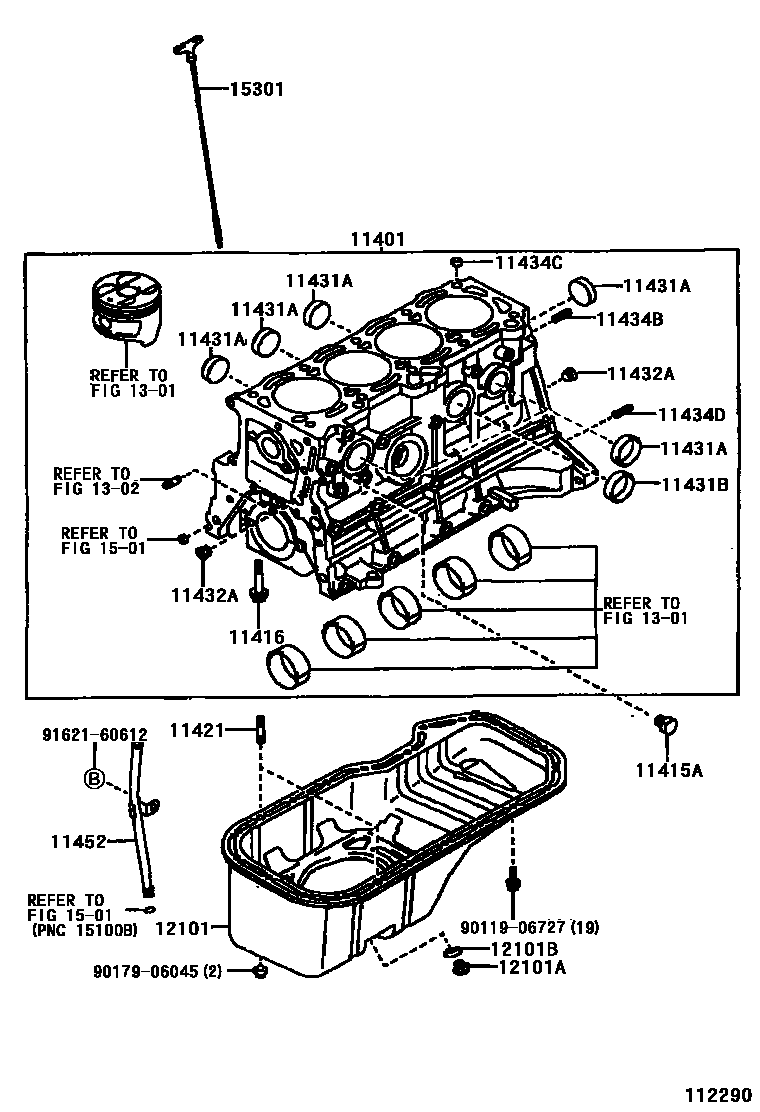

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19685i5AFE..AT192199208-199608

main11401-19695i4AFE..AT190199208-199608

main11401-19725i7AFE..AT191199408-199608

main11401-69465i2C..CT190199208-199209

sub11401-69467

sub11115-64122

main11401-69466i2C..CT190199209-199504

sub11401-69468

sub11115-64122

main11401-69475i2C..CT195199208-199209

sub11401-69477

sub11115-64122

main11401-69476i2C..CT195199209-199504

sub11401-69478

sub11115-64122

main11401-69625i2C..CT190199504-199509

sub11701-64071

main11401-69626i2C..CT190199509-199608

sub11401-69627

sub11115-64170

main11401-69635i2C..CT195199504-199509

sub11701-64071

main11401-69636i2C..CT195199509-199608

sub11401-69637

main11401-79515i3SFE..ST195199208-199408

sub11401-79516

main11401-79525i3SFE..ST195199408-199508

main11401-79526i3SFE..ST195199508-199608

main11401-79595i4SFE..ST190199208-199408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2C..CT19#199208-199212

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE,4SFE..ST19#199208-199608

main90345-52003i4AFE,5AFE,7AFE..AT19#199212-199608

main90910-09087i2C..CT19#199208-199212

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i4AFE,5AFE,7AFE..AT19#199208-199608

main90105-10028×10i3SFE,4SFE..ST19#199208-199608

main90910-02061×10i2C..CT19#199208-199608

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i3SFE,4SFE..ST19#199208-199608

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i4AFE,7AFE..AT190,191199208-199608

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×4i2C..CT19#199208-199608

main96411-44000i4AFE,5AFE,7AFE..AT19#199208-199608

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008×2i4AFE,5AFE,7AFE..AT19#199208-199608

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i4AFE,5AFE,7AFE..AT19#199208-199608

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i4AFE,5AFE,7AFE..AT19#199208-199608

main90253-14002×2i2C..CT19#199208-199608

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i4AFE,5AFE,7AFE..AT19#199208-199608

main90250-06068×2i2C..CT19#199208-199608

11452GUIDE, OIL LEVEL GAGE

main11452-15030i4AFE,5AFE,7AFE..AT19#199208-199608

main11452-64030i2C..CT19#199208-199608

main11452-74030i3SFE,4SFE..ST19#199208-199404

main11452-74031i3SFE,4SFE..ST19#199404-199608

12101PAN SUB-ASSY, OIL

main12101-16100i4AFE,5AFE..AT190,192199208-199608

main12101-64100i2C..CT195199208-199302

main12101-64101i2C..CT195199302-199608

main12101-64130i2C..CT190199208-199302

main12101-64131i2C..CT190199302-199608

main12101-74050i3SFE,4SFE..ST19#..SE,SG,SL,SX199208-199608

main12101-74120i3SFE,4SFE..ST19#..SE,SL199208-199408

sub12101-74160

main12111-16120i7AFE..AT191199409-199608

main12111-16130i7AFE..AT191199408-199409

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i2C..CT19#199208-199409

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i3SFE,4SFE..ST19#199304-199312

main90430-12031i2C..CT19#199304-199312

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15050i4AFE,5AFE..AT19#199208-199402

main15301-15051i4AFE,5AFE..AT190,192199402-199608

main15301-16091i7AFE..AT191199408-199608

main15301-64042i2C..CT19#199208-199608

main15301-74010i3SFE,4SFE..ST19#199208-199608

9011906727

main90119-06727

9017906045

main90179-06045

9162160612

main91621-60612

22 parts on this diagram · 5 diagrams in section
