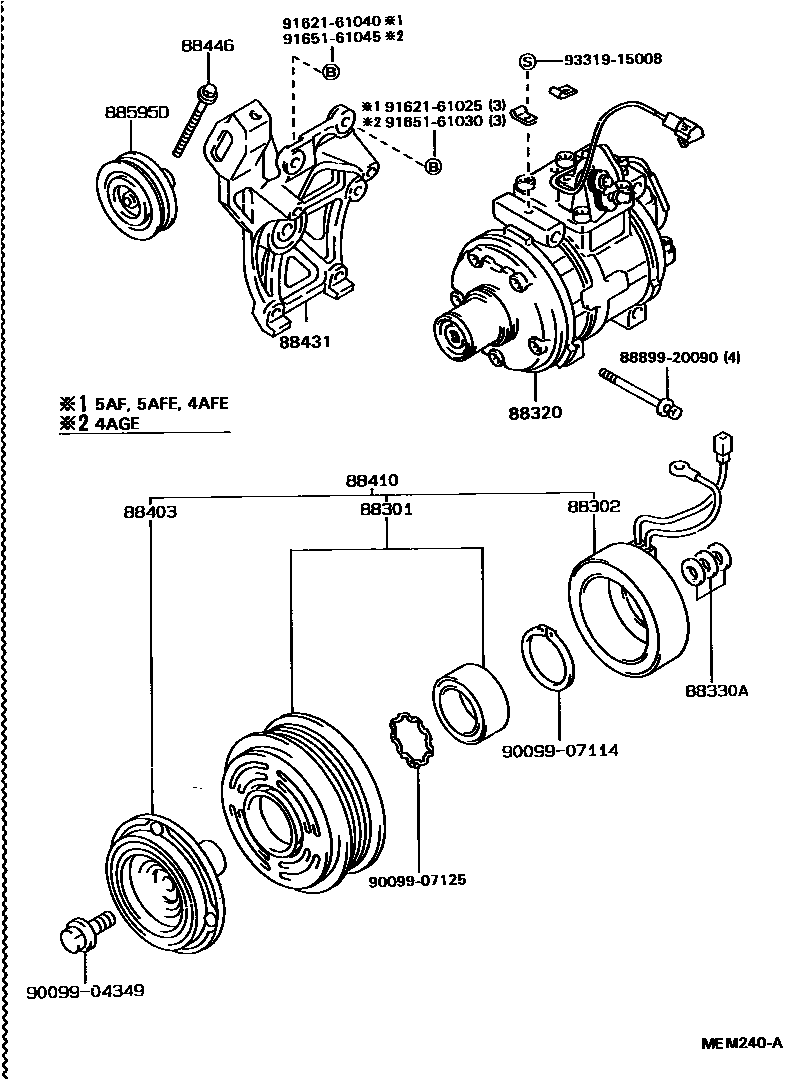

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iCT17#198805-199211

sub88412-2B030

main88412-20100iST170199005-199211

sub88412-2B020

main88412-20110iET176198805-199211

main88412-20120iAT170,175198805-199211

main88412-20140iST170198805-199005

main88412-20150iAT171..GLIM198805-199211

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-20140iCT17#198805-199005

sub88411-2B040

main88411-20150iAT170,175198805-199005

main88411-20160iET176,ST170198805-199005

sub88411-20230

main88411-20220iAT171..EFIS199005-199211

88320COMPRESSOR ASSY, COOLER

main88320-20630iAT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR198805-199211

main88320-20640iST170..SGEXT,SX198901-199005

sub88320-20641

main88320-20640iST170198805-198901

sub88320-20641

main88320-20650iCT170..SE198805-199005

main88320-20650iCT170..SG198805-199005

main88320-20660iCT176..5F..DX198805-199005

main88320-20670iET176198805-199005

main88320-20680iET176198805-199005

main88320-20690iAT171..GLIM198805-199005

main88320-20820iST170..SED199005-199211

main88320-20840iET176199005-199211

main88320-20850iET176199005-199211

main88320-20860iCT170..SE199005-199011

sub88320-20861

main88320-20860iCT170..5F..SG199011-199208

sub88320-20861

main88320-20861iCT170..5F..SG199011-199211

main88320-20861iCT170..5F..SV199005-199011

main88320-20861iCT176..SG;CT170..4FC..SG199011-199012

main88320-20861iCT170..SE199011-199211

main88320-20861iCT170..5F..SV199011-199211

main88320-20870iCT176..5F..DX199005-199011

sub88320-20871

main88320-20870iCT170..4FC..SV199005-199211

sub88320-20871

main88320-20871iCT170..5F..SV199011-199211

main88320-20880iCT170..4FC..SV199005-199211

main88320-20880iCT170..4FC..SV199005-199211

main88320-20890iCT170..4FC..SV198805-199211

main88320-2B060iAT171..EFI199005-199208

main88320-60310iST170..SED198901-199005

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAT17#,CT17#,ET176,ST170198805-199211

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCT17#..DX,SG198805-199211

88410CLUTCH ASSY, MAGNET

main88410-20230iAT170..MTM..SGEXT199005-199208

sub88410-20430

main88410-20250iCT17#..DX,SG198805-199005

sub88410-20440

main88410-20260iET176198805-199005

main88410-20270iAT170..4F..SG198805-199005

main88410-20290iST170..SGEXT,SX198901-199005

sub88410-20470

main88410-20290iST170198805-198901

sub88410-20470

main88410-20310iAT171..GLIM198805-199005

sub88410-20420

main88410-20400iCT170..SG198805-199211

main88410-20450iAT170,171..S,SV;AT170..MTM..SGEXT199005-199211

main88410-20490iST170..SED198901-199005

main88410-20550iST170..SGEXT,SX199005-199211

main88410-20560iET176199005-199211

main88410-20570iET176199005-199211

main88410-2B020iAT171..EFI199005-199208

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12460iCT170..SE,SV198805-199211

main88431-20310iET176198805-199211

main88431-20330iAT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR198805-199211

main88431-20340iAT171..EFI199005-199208

main88431-20350iAT171..EFIS199005-199208

88446BOLT, IDLE PULLEY

main88446-12020iCT176..4FC198805-199211

main88446-12030iAT175,ET176;AT170..SED..EFI;AT170..(DX,SE,SV)..CBR198805-199211

main88446-35010iAT171..GLIM198805-199208

88595DPULLEY ASSY, IDLE

main88440-12100iCT170..SV199005-199211

main88440-12100iCT176..4FC198805-199005

NO.1

main88440-12170iCT176..5F..DX198805-199211

main88440-12190iCT176..DX199005-199211

main88440-12190iCT176..4FC198805-199005

NO.2

main88440-17010iAT170,175..SED..EFI;AT170..(DX,SE,SV)..CBR198805-199211

main88440-32030iAT171..GLIM198805-199208

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9162161025

main91621-61025

9162161040

main91621-61040

9165161030

main91651-61030

9165161045

main91651-61045

9331915008

main93319-15008
