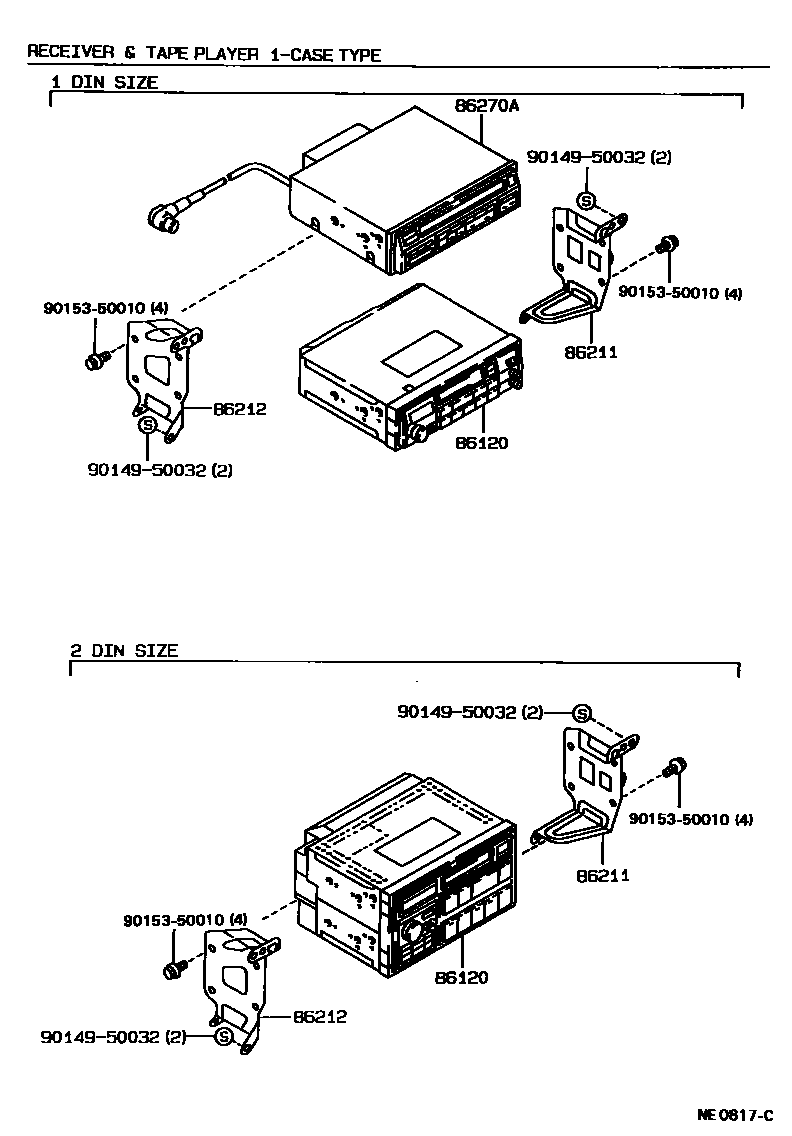

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-16530iAT175..SG;CT176,ET176;AT170,CT170..DX,SV198805-199211

sub86120-35080

sub86120-35110

sub86120-37010

main86120-20640iAT170,171,CT170..GLIM,S,SE198805-199005

main86120-20650iAT170..DX,SV;AT175,CT176,ET176..DX,SG198805-199005

main86120-20660iAT175..SGEXT198805-199005

main86120-20890iCT170..SG;AT170,ST170..SGEXT199108-199208

main86120-21010iST170..SX199005-199211

main86120-22650iST170..SE198805-199005

main86120-2A160iAT170,CT170..DX,SV;CT176,ET176..DX,SG199009-199211

main86120-2B010iAT170,CT170..DX,SV;CT176,ET176..DX,SG199005-199009

main86120-2B020iCT170,ST170..SE199005-199208

main86120-2B020iAT175..SE199005-199208

main86120-2B030iAT17#,ST170..S,SGEXT,SX199108-199211

AM/FM MPX ETR W/CASSETTE,2DIN

main86120-2B030iAT17#,ST170..S,SGEXT,SX199005-199012

AM/FM MPX ETR W/CASSETTE,2-DIN

main86120-2B030iCT170..SG;AT17#,ST170..S,SGEXT,SX199012-199108

AM/FM MPX ETR W/CA SSETTE,2-DIN

main86120-2B220iAT17#,CT170,ST170..GLIM,SE199005-199211

AM/FM MPX ETR W/CASSETTE & CD PLAYER,2-DIN

main86120-2B280iAT170,175,CT170,ST170..SE199005-199208

AM/FM MPX ETR W/CASSETTE,*AF,2-DIN

86211BRACKET, RADIO, NO.1

main86211-20270iAT170,171,CT170,ST170..GLIM,S,SE198805-199005

main86211-20280iAT17#,CT17#,ET176,ST170198805-199211

86212BRACKET, RADIO, NO.2

main86212-20260iAT170,171,CT170,ST170..GLIM,S,SE198805-199005

main86212-20270iAT17#,CT17#,ET176,ST170198805-199211

86270ADISC PLAYER ASSY

main86270-20030iAT170,171,CT170,ST170..GLIM,S,SE198805-199005

9014950032

main90149-50032

9015350010

main90153-50010

6 parts on this diagram · 3 diagrams in section
