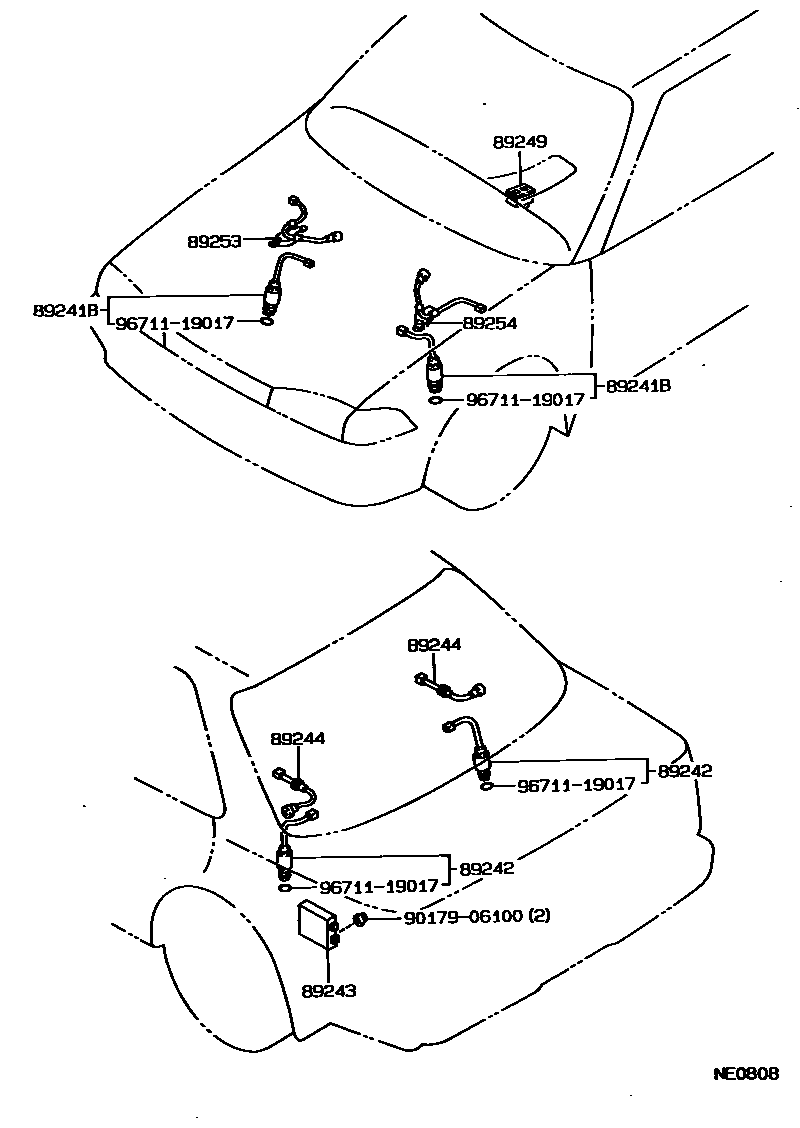

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-20020iAT171..GLIM198805-199208

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-20020iAT171..GLIM198805-199208

89243COMPUTER, ABSORBER CONTROL

main89243-20071iAT171..GLIM198805-199208

89244WIRE, ABSORBER CONTROL, REAR

main89244-20010iAT171..GLIM198909-199005

main89244-32010iAT171..GLIM198805-199208

89249SWITCH, ABSORBER CONTROL

main89249-20020iAT171..GLIM198805-199208

89253WIRE, ABSORBER CONTROL, FRONT RH

main89253-20020iAT171..GLIM198805-199208

89254WIRE, ABSORBER CONTROL, FRONT LH

main89254-20020iAT171..GLIM198805-199208

9017906100

main90179-06100

9671119017

main96711-19017

9 parts on this diagram · 1 diagram in section
