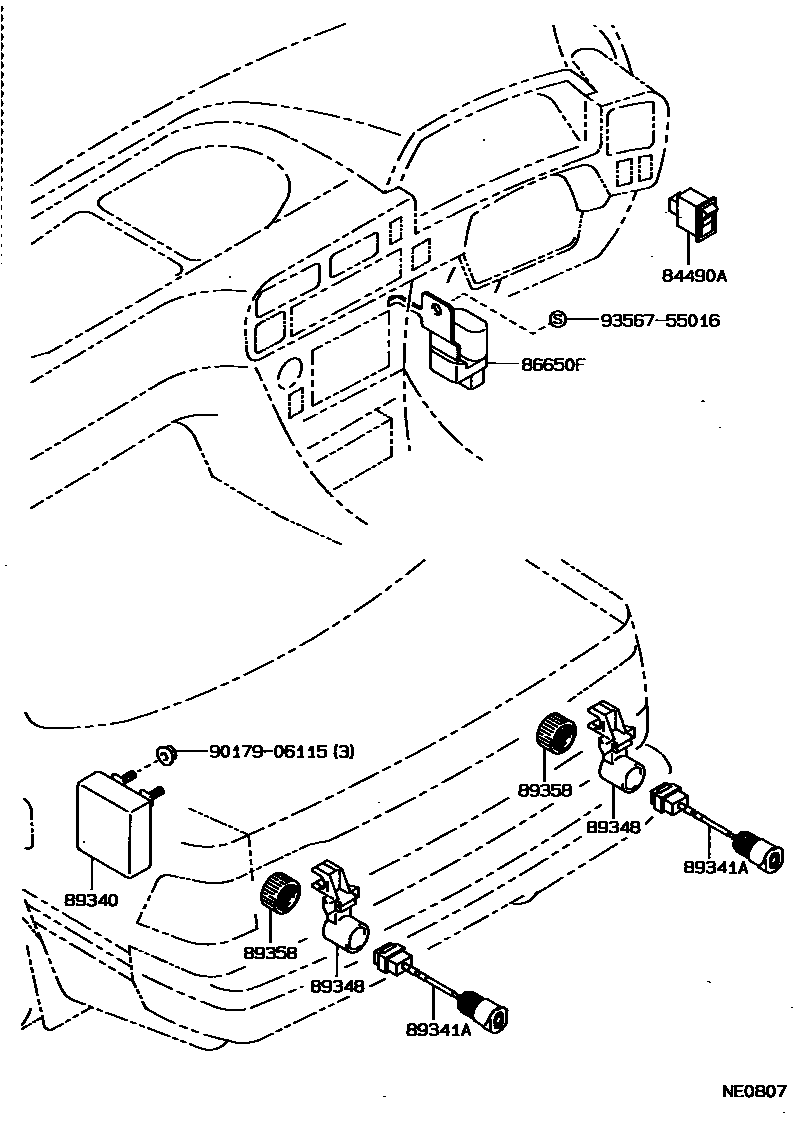

CLEARANCE & BACK SONAR

0001 1���� ��- 0002 1������ ��-

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-20020iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

86650FBUZZER ASSY

main86650-95J05iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-20030iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main89340-20040iAT170..(4FC,5F)..SGEXT199005-199208

main89340-20050iAT170..(4FC,5F)..SGEXT199005-199208

89341ASENSOR, ULTRASONIC, NO.1

main89341-20030-02iAT170..(4FC,5F)..SG198805-199005

main89341-20030-03iAT170..(4FC,5F)..SG198805-199005

main89341-20030-04iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main89341-20030-05iAT170..(4FC,5F)..SG198908-199005

main89341-20030-06iAT170..(4FC,5F)..SG198805-198908

main89341-20030-07iAT170..(4FC,5F)..SG198908-199005

main89341-20030-08iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main89341-20030-12iAT170..(4FC,5F)..SG198805-198908

main89341-20030-13iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main89341-20030-17iAT170..(4FC,5F)..SGEXT199005-199208

main89341-20030-22iAT170..(4FC,5F)..SGEXT199005-199208

main89341-20030-23iAT170..(4FC,5F)..SGEXT199005-199208

main89341-20030-27iAT170..(4FC,5F)..SGEXT199005-199208

main89341-20041-02iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

RED MICA,3J9,FRONT

sub89341-20042

main89341-20041-03iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

DARK GRAY MICA,175,FRONT

sub89341-20042

main89341-20041-04iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

DARK BLUE MICA,8E9,FRONT

sub89341-20042

main89341-20041-07iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

DARK TURCUOISE,742,FRONT

sub89341-20042

main89341-20041-08iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

SUPER WHITE 2,040,FRONT

sub89341-20042

main89341-20041-13iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

REDISH SHILVER M.,178,FRONT

sub89341-20042

main89341-20041-17iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

PASTEL AQUA METALLIC,745,FRONT

sub89341-20042

main89341-20042-A0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

SUPER WHITE 2,040,FRONT

main89341-20042-B0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

DARK GRAY MICA,175,FRONT

main89341-20042-B1iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

REDISH SILVER M.,178,FRONT

main89341-20042-D0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

RED MICA,3J9,FRONT

main89341-20042-H0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

DARK TURCUOISE MICA,742,FRONT

main89341-20042-H1iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

PASTEL AQUA M.,745,FRONT

main89341-20042-J0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

DARK BLUE MICA,8E9,FRONT

main89341-20050-02iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

RED MICA,3J9,REAR

sub89341-20052

main89341-20050-03iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

DARK GRAY MICA,175,REAR

sub89341-20052

main89341-20050-04iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

DARK BLUE MICA,8E9,REAR

sub89341-20052

main89341-20050-07iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

DARK TURCU0ISE,742,REAR

sub89341-20052

main89341-20050-08iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

SUPER WHITE 2,040,REAR

sub89341-20052

main89341-20050-13iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

REDISH SILVER M.,178,REAR

sub89341-20052

main89341-20050-17iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199005-199107

PASTEL AQUA METTALIC,745,REAR

sub89341-20052

main89341-20052-A0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

SUPER WHITE 2,040,REAR

main89341-20052-B0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

DARK GRAY MICA,175,REAR

main89341-20052-B1iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

REDISH SILVER M.,178,REAR

main89341-20052-D0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

RED MICA,3J9,REAR

main89341-20052-H0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

DARK TURCUOISE MICA,742,REAR

main89341-20052-H1iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

PASTEL AQUA M.,745,REAR

main89341-20052-J0iAT170..(4FC,5F)..(SE,SGEXT);AT171,175,CT170,ST170..GLIM,S,SE199107-199208

DARK BLUE MICA,8E9,REAR

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-20040iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main89348-22010iAT170..(4FC,5F)..SGEXT199005-199208

89358NUT, ULTRASONIC SENSOR

main89358-20010iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199109

sub89358-28010

main89358-28010iAT170..(4FC,5F)..SGEXT199109-199208

9017906115

main90179-06115

9356755016

main93567-55016

8 parts on this diagram · 2 diagrams in section
