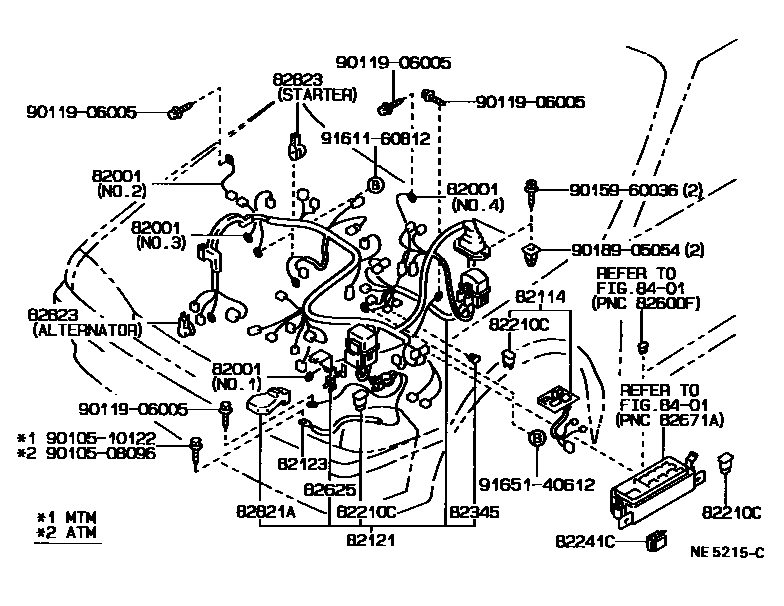

WIRING & CLAMP

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

82001CABLE, BOND, NO.1

main90980-07126iAT175198808-199208

main90980-07206iAT17#,CT17#,ST170198805-199211

main90980-07221iCT17#198805-199211

main90980-07235iAT171..GLIM198805-199208

main90980-07264iAT17#,ET176,ST170198805-199211

main90980-07280iST170198805-199211

main90980-07299iAT17#..DX,S,SE,SG,SGEXT,SV198805-199211

main90980-07302iAT170,171..DX,S,SE,SG,SGEXT,SV198805-199211

main90980-07303iET176198805-199211

main90980-07305iAT171..GLIM198805-199208

main90980-07306iST170198805-199211

82114WIRE, ENGINE ROOM, NO.4

main82114-20030iET176199005-199211

main82114-20030iAT170,ET176198805-199005

J/B NO.5

main82114-20040iCT170..4FC199005-199211

main82114-20040iCT176..4FC198911-199005

J/B NO.5

main82114-20050iST170..SED199202-199208

main82114-20050iAT170,171..GLIM,S,SE,SGEXT199005-199208

R/B NO.6

main82114-20070iST170198805-199005

J/B NO.5

main82114-20070iST170199005-199211

main82114-20080iAT175,CT170..SE,SGEXT199005-199208

R/B NO.6

main82114-20080iCT170..SG199012-199208

main82114-20140iAT170,171198805-199211

J/B NO.5

main82114-20150iCT170..SV;CT17#..(SED,VAN)..5F199005-199211

main82114-20150iCT170;CT176..5F198805-199005

J/B NO.5

main82114-20200iAT175,ST170..SE,SGEXT,SX199202-199211

R/B NO.6

82121WIRE, ENGINE

main82121-2B620iAT170..4FC..SE198805-198807

main82121-2B621iAT170..4FC..SE198807-198809

main82121-2B622iAT170..4FC..SG198809-198903

main82121-2B622iAT170..4FC..SE198809-199005

main82121-2B622iAT170..4FC..SG198903-199005

main82121-2B702iST170..4FC198805-198809

main82121-2B703iST170..4FC198809-199005

main82121-2B712iST170..4FC198805-198809

main82121-2B713iST170..4FC198809-199005

main82121-2B750iAT170..MTM198805-198807

main82121-2B751iAT170..MTM198807-198809

main82121-2B752iAT170..MTM198809-199005

main82121-2B760iAT170..4FC..(DX,SG,SV)198805-198807

main82121-2B761iAT170..4FC..(DX,SG,SV)198807-198809

main82121-2B762iAT170..4FC..(DX,SG,SV)198809-199005

main82121-2B770iST170..5F198805-198809

main82121-2B771iST170..5F198809-199005

main82121-2B780iST170..5F198805-198809

main82121-2B781iST170..5F198809-199005

main82121-2D300iCT170..4FC..SG198805-198911

main82121-2D301iCT170..4FC..SG198911-199005

main82121-2D310iCT170..4FC..SE198805-198911

main82121-2D310iCT170..4FC..SG198903-198911

main82121-2D311iCT170..4FC..SG198911-199005

main82121-2D320iCT17#..5F198805-198911

main82121-2D321iCT170..5F198911-199005

main82121-2D330iET176..MTM198805-198911

main82121-2D340iET176..3FC198805-198911

main82121-2D550iAT171..5F..GLIM198805-198908

main82121-2D560iAT171..4FC..GLIM198805-198908

main82121-2D670iAT171..5F..S198805-199005

main82121-2D680iAT171..4FC..S198805-199005

main82121-2D690iAT175..5F198808-199005

main82121-2D700iAT175..4FC..SG198808-199005

main82121-2D710iAT175..4FC..SGEXT198808-199005

main82121-2D800iAT171..5F..GLIM198908-199005

main82121-2D810iAT171..4FC..GLIM198908-199005

main82121-2D820iAT170..MTM199005-199211

main82121-2D830iAT170..4FC..SGEXT199005-199208

main82121-2D830iAT170..4FC..(DX,SG,SV)199005-199211

main82121-2D840iAT170..4FC..(SE,SGEXT)199005-199208

main82121-2D850iAT175..5F199005-199208

main82121-2D860iAT175..4FC..SG199005-199208

main82121-2D870iAT175..4FC..(SE,SGEXT)199005-199208

main82121-2D880iST170..5F199005-199211

main82121-2G010iST170..4FC199005-199211

main82121-2G060iCT176..5F198911-199107

main82121-2G061iCT176..5F199107-199211

main82121-2G071iCT170..4FC..(SG,SV)199005-199106

main82121-2G080iCT176..4FC198911-199107

main82121-2G081iCT176..4FC199107-199211

main82121-2G091iCT170..4FC..SG199012-199106

main82121-2G091iCT170..4FC..SE199005-199106

main82121-2G100iET176..MTM198911-199211

main82121-2G110iET176..3FC198911-199211

main82121-2G380iAT171..5F..EFIS199005-199103

main82121-2G381iAT171..5F..EFIS199103-199208

main82121-2G390iAT171..4FC..EFIS199005-199103

main82121-2G391iAT171..4FC..EFIS199103-199208

main82121-2G400iAT171..5F..EFI199005-199103

main82121-2G401iAT171..5F..EFI199103-199208

main82121-2G410iAT171..4FC..EFI199005-199103

main82121-2G411iAT171..4FC..EFI199103-199208

main82121-2G811iCT170..5F199106-199107

sub82121-2G812

main82121-2G812iCT170..5F199107-199211

main82121-2G821iCT170..4FC..(SG,SV)199106-199107

sub82121-2G822

main82121-2G822iCT170..4FC..(SG,SV)199107-199211

main82121-2G831iCT170..4FC..SG199106-199107

sub82121-2G832

main82121-2G832iCT170..4FC..SG199107-199208

82123WIRE, ENGINE, NO.3

main82123-20130iAT17#,ET176,ST170198805-199211

main82123-20150iCT17#198805-199211

82210CFUSIBLE LINK

main90982-08188iAT17#,CT17#,ET176,ST170198805-199211

main90982-08190iAT17#,CT17#,ET176,ST170198805-199211

main90982-08202iAT170,171..DX,GLIM,SE,SG,SGEXT,SV198805-199211

main90982-08203iCT17#198805-199211

main90982-08246iST170..4FC198805-199211

main90982-08253iCT170..4FC198805-198912

sub90982-08203

main90982-08253iAT17#,ET176,ST170198805-198912

sub90982-08203

main90982-08259iCT17#198810-199211

82241CWIRE, RELAY

main82241-32020iAT17#,CT17#,ET176,ST170198805-199211

82345DIODE

main82345-12010iAT170..5F..SG198805-199005

sub82345-12020

main82345-20040iAT171..GLIM198805-199211

main82345-20040iET176199005-199211

NO.2

main82345-20050iAT17#..4FC..(DX,S,SE,SG,SGEXT,SV)198805-199211

main82345-20060iCT17#..DX,SG,SV199005-199211

NO.4

main82345-20060iCT17#..DX,SG,SV198805-199211

main82345-32010iCT170..SG198805-199211

main82345-32010iAT170,CT170,ST170..WG..(DSL,EFI)198805-199211

NO.5

82625TERMINAL, FUSIBLE LINK

main82625-20010iAT170198808-199211

82821ACOVER, CONNECTOR

main82821-24010iAT17#,CT17#,ST170..CI,DSL,EFI,EFIS198805-199211

main82821-32030iAT170..4FC..SGEXT199005-199208

main82821-32030iAT170,ET176..CBR;AT170..(DX,SG,SV)..EFI;AT170..MTM..(SE,SGEXT)..EFI198805-199211

82823CAP, TERMINAL, NO.1

main82823-20030iAT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV198805-199005

STARTER

main82823-20030iST170198805-199005

main82823-20040iCT17#198805-198911

main82823-22050iAT171..GLIM198805-199211

main82823-22050iAT17#,ET176..DX,S,SE,SG,SGEXT,STD,SV198805-199005

ALTERNATOR

8401

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9011906006

main90119-06006

9015960036

main90159-60036

9018905054

main90189-05054

9161160812

main91611-60812

9165140612

main91651-40612

19 parts on this diagram · 17 diagrams in section
