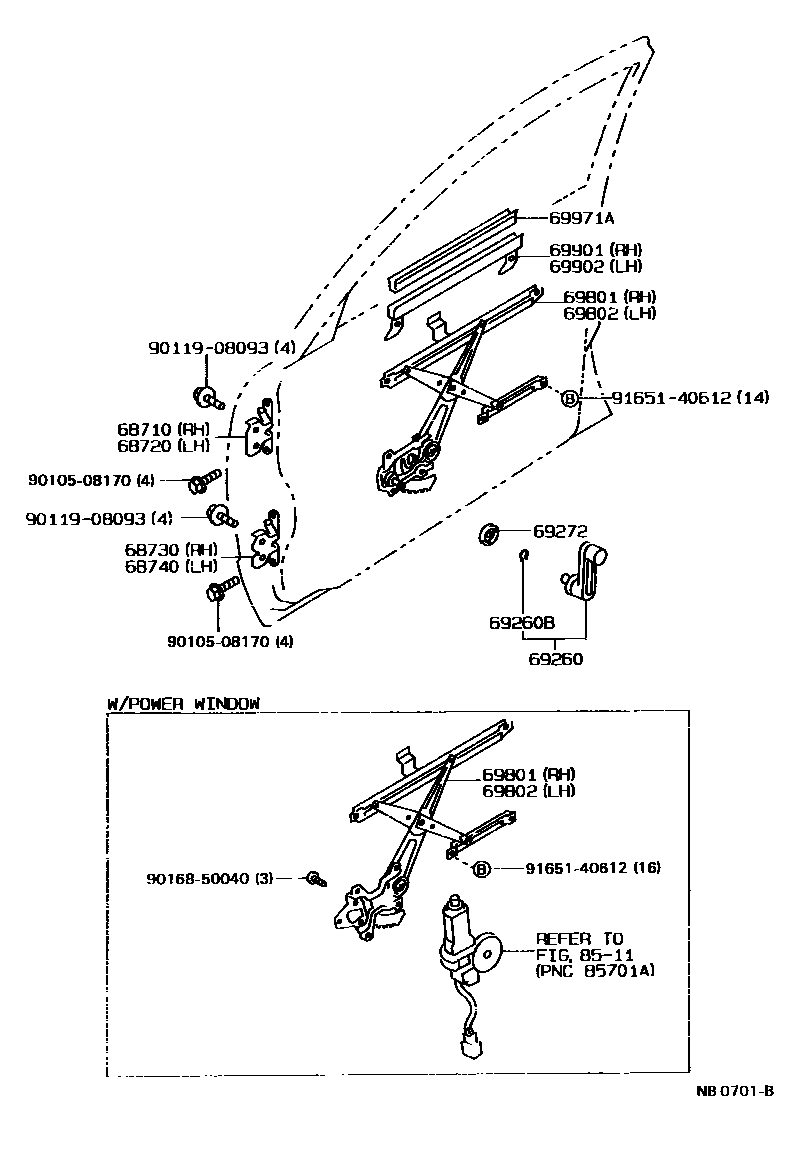

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iAT17#,CT17#,ET176,ST170198805-199211

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iAT17#,CT17#,ET176,ST170198805-199211

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16010iAT17#,CT17#,ET176,ST170198805-199211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16010iAT17#,CT17#,ET176,ST170198805-199211

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-30iAT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX199005-199211

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-33iST170..SGEXT,SX;AT17#,CT17#,ET176..DX,S,SG,STD,SV198805-199005

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-40iAT17#,CT170..S,SG199005-199208

DARK BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-54iST170..SGEXT;AT17#,CT170..S,SG198805-199005

DARK BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-58iAT17#,CT170..S,SG,SV;CT176,ET176,ST170..DX,SG,SGEXT,SX198805-199211

SABLE,TRIM4#

sub69260-14020

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX198805-199211

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iAT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX)198805-199211

NATURAL WHITE,TRIM1#

sub69285-22010

main69285-22010-08iAT170,CT176,ET176,ST170..(VAN,WG)..(DX,SG,SV,SX)198805-199211

NATURAL WHITE,TRIM1#,4#,8#

sub69285-22010

main69285-22010-08iAT170..DX;ET176..STD198805-199211

NATURAL WHITE,TRIM1#,4#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20150iAT171,ST170..S,SX198805-199211

main69801-20150iST170..SE..CI;AT17#,CT170,ST170..(GLIM,SE,SGEXT)..(CBR,DSL,EFI)198805-199208

main69810-20170iST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX198805-199211

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20150iAT170,171,ST170..S,SG,SGEXT198805-199211

main69802-20150iST170..SE..CI;AT17#,CT170,ST170..(GLIM,SE,SGEXT)..(CBR,DSL,EFI)198805-199208

main69820-20170iST170..SGEXT..CI;AT17#,CT17#,ET176,ST170..DX,S,SG,STD,SV,SX198805-199211

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20130iAT17#,CT17#,ET176,ST170198805-199211

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-20060iAT17#,CT17#,ET176,ST170198805-199211

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-20010iAT17#,CT17#,ET176,ST170198805-199211

sub69971-12090

8511

9010508170

main90105-08170

9011908093

main90119-08093

9016850040

main90168-50040

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
