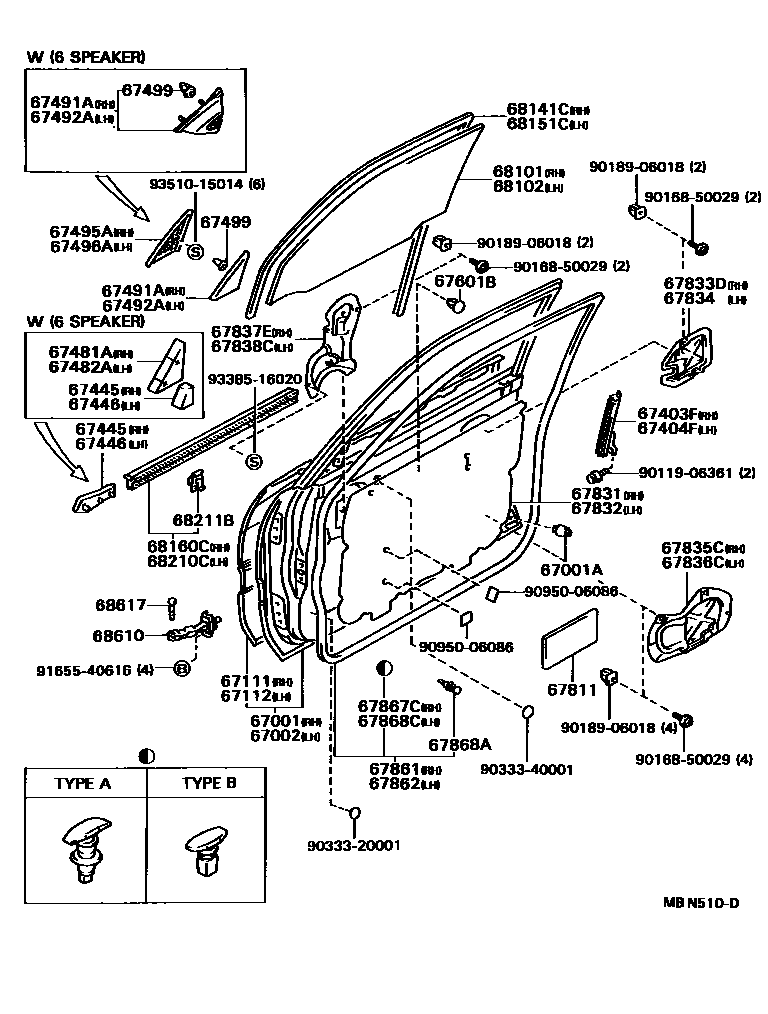

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20800iAT170..(4FC,5F)..SG198805-199211

main67001-20810iST170..SGEXT..CI;AT171,CT170,ST170..S,SG,SX198805-199211

main67001-20840iAT171..EFIS199005-199208

sub67001-20870

main67001-20840iST170..SX199005-199211

sub67001-20870

main67001-20870iAT170,175,CT170,ST170..SE199005-199211

67001ACUSHION, FRONT DOOR PANEL

main90541-09064iAT17#,CT17#,ET176,ST170198805-199211

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20760iCT170..SG;AT17#,ST170..S,SGEXT,SX198805-199211

main67002-20770iCT170..SV;AT170,175,CT176,ET176..DX,SG,STD,SV198805-199211

main67002-20800iAT171..EFIS199005-199211

sub67002-20830

main67002-20830iAT171,ST170..S,SX199005-199211

67111PANEL, FRONT DOOR, OUTER RH

main67111-20280iAT17#,CT17#,ET176,ST170198805-199211

67112PANEL, FRONT DOOR, OUTER LH

main67112-20290iAT17#,CT17#,ET176,ST170198805-199211

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-20040iAT17#,CT17#,ET176,ST170198805-199211

main67403-20090iAT17#,CT170,ST170..GLIM,SE,SGEXT199005-199012

main67403-20091iAT171,ST170..S,SX199012-199211

main67403-20091iAT17#,CT170,ST170..GLIM,SE,SGEXT199012-199208

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-20040iAT17#,CT17#,ET176,ST170198805-199211

67445PLATE, FRONT DOOR WINDOW OPENING, INNER RH

main67445-20010iAT17#,CT170..GLIM,SE199005-199211

main67445-95R00iCT176,ET176..DX,STD198805-199211

67446PLATE, FRONT DOOR WINDOW OPENING, INNER LH

main67445-20010iST170..SE199005-199211

main67446-95R00iCT176,ET176..DX,STD198805-199211

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-20120iAT17#,CT170..GLIM,SE199005-199211

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-20120iAT171,ST170..S,SX199005-199211

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20180iAT17#,CT17#,ET176,ST170198805-199211

main67491-20240-03iST170..SE199005-199211

GRAY,TRIM1#

sub67491-20240

main67491-20240-04iST170..SE199005-199208

BLUE,TRIM8#

sub67491-20240

main67491-20240-06iAT170,175,CT170..SE199005-199211

SABLE,TRIM4#

sub67491-20240

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20200iAT17#,CT17#,ET176,ST170198805-199211

main67492-20260-03iAT17#,CT170..GLIM,SE199005-199211

GRAY,TRIM1#

sub67492-20260

main67492-20260-04iAT171..EFIS199005-199208

BLUE,TRIM8#

sub67492-20260

main67492-20260-06iST170..SE199005-199211

SABLE,TRIM4#

sub67492-20260

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-20080iAT170..4F..SG198805-199211

main67495-20080iCT176,ET176..DX199011

main67495-95R00iCT176,ET176..DX,STD198805-198807

sub67495-95R01

main67495-95R01iCT176,ET176..DX,STD198807-199211

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-20050iAT171,ST170..S,SE,SX198805-199211

main67496-20050iCT176,ET176..DX199011

main67496-95R00iCT176,ET176..DX,STD198805-198807

sub67496-95R01

main67496-95R01iCT176,ET176..DX,STD198807-199211

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30020iAT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX198902-199211

main67499-30020iAT171..EFI199005-199208

main67499-32010iAT170,175,CT170,ST170..SE199005-199211

main67499-32010iAT17#,CT17#,ET176,ST170198805-198902

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2D040-03iET176..STD199006-199211

GRAY,TRIM1#

main67610-2D130-03iAT170,CT170,ST170..SG,SGEXT198903-199005

main67610-2D130-06iAT170,CT170,ST170..SG,SGEXT198903-199005

main67610-2D170-03iAT170..DX,SV198805-199005

GRAY,TRIM1#

main67610-2D170-06iAT170..SV198805-199005

SABLE,TRIM4#

main67610-2D180-03iCT176,ET176..SG198805-199005

GRAY,TRIM1#

main67610-2D180-03iCT176,ET176..SG198805-198911

GRAY,GRAY,TRIM1#

main67610-2D180-04iAT170,175,CT170..SG198805-199005

BLUE,TRIM8#

main67610-2D180-06iCT176,ET176..SG198805-198911

SABLE,SABLE,TRIM4#

main67610-2D180-06iAT170,175,CT170..SG198805-199005

SABLE,TRIM4#

main67610-2D190-03iAT170,CT170,ST170..SE198805-199005

GRAY,TRIM1#

main67610-2D190-04iAT170,CT170,ST170..SE198805-199005

BLUE,TRIM8#

main67610-2D190-06iAT170,CT170,ST170..SE198805-199005

SABLE,TRIM4#

main67610-2D200-03iAT171,ST170..S,SX198805-199005

GRAY,TRIM1#

main67610-2D200-04iAT171..S198805-199005

BLUE,TRIM8#

main67610-2D200-06iAT171,ST170..S,SX198805-199005

SABLE,TRIM4#

main67610-2D210-03iAT171..GLIM198805-199005

GRAY,TRIM1#

main67610-2D210-06iAT171..GLIM198805-199005

SABLE,TRIM4#

main67610-2D220-03iET176..STD198805-199005

sub67610-2D040

main67610-2D220-03iAT170..4F..DX198805-199005

GRAY,TRIM1#

sub67610-2D040

main67610-2D230-03iAT170..(4FC,5F)..SG198805-199005

main67610-2D230-03iAT171..S198805-199005

main67610-2D230-04iAT170..(4FC,5F)..SG198805-199005

main67610-2D230-04iAT171..S198805-199005

main67610-2D230-06iAT171..S198805-199005

main67610-2D230-06iAT170..(4FC,5F)..SG198805-199005

main67610-2D240-03iAT170..SG198805-199005

main67610-2D240-03iST170..SGEXT198805-199005

main67610-2D240-03iAT175..SGEXT198812-199005

GRAY,TRIM1#

main67610-2D240-03iAT175..SGEXT198808-198812

main67610-2D240-04iST170..SGEXT198805-199005

main67610-2D240-04iAT170..SG198805-199005

main67610-2D240-04iAT175..SGEXT198808-199005

main67610-2D240-06iAT170..SG198805-199005

main67610-2D240-06iAT175..SGEXT198808-198812

main67610-2D240-06iAT170..SG198805-199005

main67610-2D240-06iAT175..SGEXT198812-199005

SABLE,TRIM4#

main67610-2D250-03iAT170..5F..SG198805-199005

main67610-2D250-03iAT170..5F..SG198805-199005

main67610-2D250-03iST170..SX198903-199005

main67610-2D250-03iAT175..SGEXT198812-199005

main67610-2D250-03iST170..SX198805-198903

main67610-2D250-04iAT171..S198805-199005

main67610-2D250-04iAT171..S198805-199005

main67610-2D250-06iAT170..4FC..SG198805-199005

main67610-2D250-06iAT171..S198805-199005

main67610-2D250-06iAT175..SGEXT198812-199005

main67610-2D250-06iST170..SX198903-199005

main67610-2D250-06iST170..SX198805-198903

main67610-2D260-03iST170..SGEXT198805-199005

GRAY,TRIM1#

main67610-2D260-03iST170..SGEXT198805-199005

main67610-2D260-04iST170..SGEXT198805-199005

main67610-2D260-04iAT170..SG198805-199005

BLUE,TRIM8#

main67610-2D260-06iST170..SGEXT198805-199005

SABLE,TRIM4#

main67610-2D260-06iAT170..SG198805-199005

main67610-2D490-03iAT171..EFIS199005-199211

main67610-2D490-04iAT171..EFIS199005-199208

main67610-2D490-06iST170..SX199005-199211

main67610-2D600-03iST170..SE199005-199208

main67610-2D600-04iST170..SE199005-199208

main67610-2D600-06iST170..SE199005-199208

main67610-2D640-03iAT170,175,CT17#,ET176..SG199005-199211

GRAY,TRIM1#

main67610-2D640-04iAT170,175,CT170..SG199005-199208

BLUE,TRIM8#

main67610-2D640-06iAT170,175,CT170..SG199005-199208

SABLE,TRIM4#

main67610-2D650-03iAT171..EFI199005-199208

main67610-2D660-03iAT170,175,CT170,ST170..SE199005-199208

GRAY,TRIM1#

main67610-2D660-04iAT170,175,CT170,ST170..SE199005-199208

BLUE,TRIM8#

main67610-2D660-06iAT170,175,CT170,ST170..SE199005-199208

SABLE,TRIM4#

main67610-2D680-03iAT171,ST170..S,SX199005-199211

main67610-2D680-03iAT170..(4FC,5F)..SGEXT199005-199208

main67610-2D680-04iAT171..EFIS199005-199208

main67610-2D680-04iAT170..(4FC,5F)..SGEXT199005-199208

main67610-2D680-06iAT171,ST170..S,SX199005-199211

main67610-2D680-06iAT170..(4FC,5F)..SGEXT199005-199208

main67610-2D700-03iAT170,175,ST170..SGEXT199005-199208

GRAY,TRIM1#

main67610-2D700-04iAT170,175,ST170..SGEXT199005-199208

BLUE,TRIM8#

main67610-2D700-06iAT170,175,ST170..SGEXT199005-199208

SABLE,TRIM4#

main67610-2D710-03iAT171,ST170..S,SX199005-199211

main67610-2D710-03iAT171,ST170..S,SX199005-199211

GRAY,TRIM1#

main67610-2D710-04iAT171..EFIS199005-199208

BLUE,TRIM8#

main67610-2D710-06iAT171,ST170..S,SX199005-199211

SABLE,TRIM4#

main67610-95R00-03iCT176,ET176..DX199006-199211

GRAY,TRIM1#

main67610-95R01-03iCT176,ET176..DX198805-199005

GRAY,TRIM1#

sub67610-95R00

main67610-95R01-06iCT176,ET176..DX198805-199005

SABLE,TRIM4#

sub67610-95R00

main67650-2B820-03iST170..SGEXT198903-199005

main67650-2B820-06iST170..SGEXT198903-199005

main67650-2D030-03iAT170,CT170..DX,SV199005-199211

GRAY,TRIM1#

main67650-2D150-03iCT170..SG199012-199204

main67650-2D150-03iCT170..SG199012-199204

main67650-2D150-04iAT170,ST170..SGEXT199012-199204

main67650-2D150-04iAT170,ST170..SGEXT199012-199204

main67650-2D150-06iAT170,ST170..SGEXT199012-199204

main67650-2D150-06iCT170..SG199012-199204

main67650-2D180-03iAT171..EFI199005-199208

GRAY,TRIM1#

main67650-2D190-03iAT170,175,CT170,ST170..SE199005-199208

main67650-2D190-04iAT170,175,CT170,ST170..SE199005-199208

main67650-2D190-06iAT170,175,CT170,ST170..SE199005-199208

main67650-2D660-B0iAT170,ST170..SGEXT199204-199208

main67650-2D660-B0iCT170..SG199204-199208

main67650-2D660-E0iCT170..SG199204-199208

main67650-2D660-E0iCT170..SG199204-199208

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-08051-01iET176..STD198805-199005

BRACK,TRIM1#,4#

sub90467-08051

main90467-08051-01iET176..STD198805-199211

BRACK,TRIM1#

sub90467-08051

67811PAD, FRONT DOOR SILENCER

main67812-12010iAT17#,CT17#,ET176,ST170198805-199211

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20340iAT17#,CT17#,ET176,ST170198805-199211

main67831-20400iST170..SX199005-199211

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-20400iAT171..EFIS199005-199211

main67832-20200iAT17#,CT17#,ET176,ST170198805-199211

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-20060iAT17#,CT170,ST170..GLIM,SE199005-199211

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-20050iAT17#,CT170,ST170..GLIM,SE199005-199211

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-20050iAT17#,CT170,ST170..GLIM,SE199005-199211

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-20090iAT17#,CT170,ST170..GLIM,SE199005-199211

67837ECOVER, FRONT DOOR SERVICE HOLE, NO.4 RH

main67837-20100iAT17#,CT170,ST170..GLIM,SE199005-199211

67838CCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH

main67838-20090iAT17#,CT170,ST170..GLIM,SE199005-199211

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20310iAT17#,CT17#,ET176,ST170198805-199211

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20310iAT17#,CT17#,ET176,ST170198805-199211

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-20060iAT17#,CT170,ST170..SED198806-199211

sub67867-12150

main67868-30040iAT17#,CT17#,ET176,ST170198806-199211

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67869-20020iAT17#,CT17#,ET176,ST170198805-199211

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-20060iAT17#,CT17#,ET176,ST170198805-198806

sub67867-12150

main67868-20060iAT17#,CT17#,ET176,ST170198806-199211

sub67867-12150

main67868-30040iAT17#,CT17#,ET176,ST170198806-199211

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20440iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

main68111-20450iAT170..4F..SG198805-198902

main68111-20450iAT170..4F..SG198805-198902

main68111-20450iAT170..(4FC,5F)..SG198902-199005

main68111-20450iAT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX198805-199211

main68111-20450iCT170..SG198902-199208

main68111-20450iAT170..4F..SG198902-199005

main68111-20460iCT176,ET176..DX,STD198805-199211

sub68111-20440

main68111-20500iAT170..4F..SG198902-199005

sub68111-20450

main68111-20500iAT170..(4FC,5F)..SG198805-198902

sub68111-20450

main68111-20500iAT170..(4FC,5F)..SG198805-198902

sub68111-20450

main68111-20500iCT170..SG198902-199208

sub68111-20450

main68111-20500iCT170..SG198902-199005

sub68111-20450

main68111-20500iAT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX198805-199211

sub68111-20450

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20360iCT176,ET176..SG;AT17#,CT170,ST170198805-199211

main68112-20370iAT170..4F..SG198902-199208

main68112-20370iAT170..4F..SG198902-199005

main68112-20370iAT170..4F..SG198902-199005

main68112-20370iAT170..4F..SG198805-198902

main68112-20370iAT170..4F..SG198805-198902

main68112-20370iAT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX198805-199211

main68112-20380iCT176,ET176..DX,STD198805-199211

sub68112-20360

main68112-20420iAT171..EFIS;AT17#,CT170,ST170..GLIM,SE,SGEXT,SX198805-199211

sub68112-20370

main68112-20420iAT170..(4FC,5F)..SG198805-198902

sub68112-20370

main68112-20420iAT170..(4FC,5F)..SG198805-198902

sub68112-20370

main68112-20420iCT170..SG198902-199208

sub68112-20370

main68112-20420iCT170..SG198902-199005

sub68112-20370

main68112-20420iCT170..SG198902-199005

sub68112-20370

68141CRUN, FRONT DOOR GLASS, RH

main68141-20180iAT17#,CT17#,ET176,ST170198805-199103

sub68141-20220

main68141-20220iAT17#,CT17#,ET176,ST170199103-199211

68151CRUN, FRONT DOOR GLASS, LH

main68151-20050iAT17#,CT17#,ET176,ST170198805-199103

sub68151-20060

main68151-20060iAT17#,CT17#,ET176,ST170199103-199211

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95R00iCT176,ET176..DX,STD198805-199211

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-95R00iCT176,ET176..DX,STD198805-199211

68211BCLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)

main68211-20070iCT176,ET176..DX,STD198805-199211

DOOR TRIM

main68211-20070iCT176,ET176..DX,STD198805-199005

main68211-95500iCT176,ET176..DX,STD198805-199211

DOOR PANEL

68610CHECK ASSY, FRONT DOOR

main68610-89102iAT17#,CT17#,ET176,ST170198805-199211

68617PIN, FRONT DOOR CHECK

main68617-20011iAT17#,CT17#,ET176,ST170198805-199211

9011906361

main90119-06361

9016850029

main90168-50029

9018906018

main90189-06018

9033320001

main90333-20001

9033340001

main90333-40001

9095006086

main90950-06086

9165540616

main91655-40616

9338516020

main93385-16020

9351015014

main93510-15014

50 parts on this diagram · 3 diagrams in section
