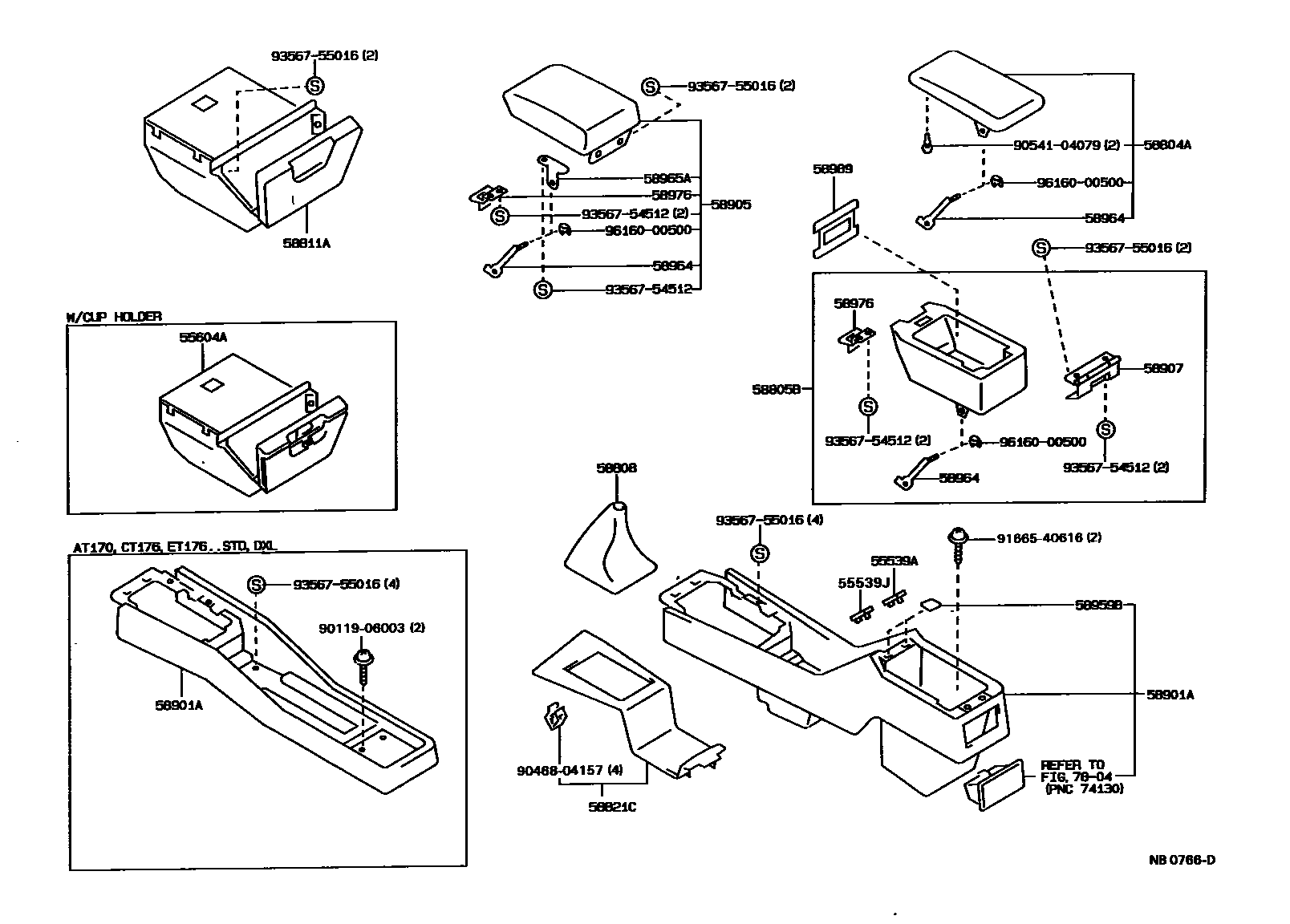

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-20050-03iCT176..5F..SG;AT17#,CT170,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199211

GRAY,TRIM1#

sub55539-20050

main55539-20050-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

sub55539-20050

main55539-20050-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX198805-199211

SABLE,TRIM4#

sub55539-20050

main55539-20050-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

sub55539-20050

55539JCOVER, SPARE SWITCH HOLE

main55539-20050-03iAT171..5F..GLIM;AT17#,CT17#,ET176,ST170..S,SE,SG,SGEXT,SV,SX198805-199211

GRAY,TRIM1#

sub55539-20050

main55539-20050-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

sub55539-20050

main55539-20050-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SV,SX;AT171,CT176,ET176..(3FC,4F,5F)..(DX,GLIM,SG)198805-199211

SABLE,TRIM4#

sub55539-20050

main55539-20050-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

sub55539-20050

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20030-01iAT17#,CT170,ST170..S,SE,SGEXT198805-199211

BLACK,TRIM1#,4#

main55604-20030-01iAT171,ST170..GLIM,SX198805-199211

BLACK,TRIM1#,4#,8#

main55604-20030-01iAT171..EFI199005-199211

BLACK,TRIM1#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20020-03iAT171..GLIM198805-199005

GRAY,TRIM1#

main58804-20020-03iAT171..GLIM198805-199005

main58804-20020-03iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main58804-20020-03iST170..SX199005-199211

main58804-20020-04iAT170..(4FC,5F)..SG198805-199005

main58804-20020-04iST170..SE198805-199005

main58804-20020-06iST170..SX199005-199211

main58804-20020-06iST170..SE198805-199005

main58804-20020-06iAT171..GLIM198805-199005

SABLE,TRIM4#

main58804-20020-06iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199208

main58804-20020-14iAT170..(4FC,5F)..SGEXT199005-199208

main58804-20090-03iST170..SE199005-199208

sub58804-20030

main58804-20090-04iST170..SE199005-199208

sub58804-20030

main58804-20090-06iST170..SE199005-199208

sub58804-20030

main58804-20100-03iAT171..EFI199005-199208

GRAY,TRIM1#

sub58804-20030

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-20010-03iAT171..GLIM198805-199211

GRAY,TRIM1#

main58805-20010-04iAT170..(4FC,5F)..SG198805-199005

BLUE,TRIM8#

main58805-20010-06iAT170..(4FC,5F)..SGEXT;AT170..(4FC,5F)..SG..CBR198805-199211

SABLE,TRIM4#

main58805-20010-14iAT170..(4FC,5F)..SGEXT199005-199208

DARK BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20060-01iAT171..5F..GLIM198805-199005

BLACK,TRIM1#,4#

main58808-20060-03iAT17#,CT17#,ET176,ST170..MTM198805-199211

GRAY,TRIM1#

main58808-20060-04iAT17#,CT170,ST170..MTM..(S,SE,SG,SGEXT)198805-199005

BLUE,TRIM8#

main58808-20060-06iAT17#,CT170,ST170..MTM..(S,SE,SG,SGEXT,SX)198805-199211

SABLE,TRIM4#

main58808-20060-14iAT17#,CT170,ST170..MTM..(S,SE,SG,SGEXT)199005-199208

DARK BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58801-20190-01iAT170,175,CT170..SG198805-199211

BLACK,TRIM1#

sub55604-20030

main58801-20190-01iAT170,CT176,ET176..(VAN,WG)..(DX,SG,SV)198805-199211

BLACK,TRIM1#,4#,8#

sub55604-20030

main58801-20190-01iAT170,CT176,ET176..(VAN,WG)..(DX,SG,SV)198805-199005

BLACK,TRIM1#,4#

sub55604-20030

58821CPANEL, CONSOLE, UPPER

main58821-20100-01iAT171..GLIM198805-199005

BLACK,TRIM1#,4#

sub58821-20100

main58821-20100-03iAT170,171,CT17#,ET176,ST170198805-199211

GRAY,TRIM1#

sub58821-20100

main58821-20100-04iAT170,171,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

sub58821-20100

main58821-20100-06iCT176,ET176..DX,SG;AT170,171,CT170,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199211

SABLE,TRIM4#

sub58821-20100

main58821-20100-14iAT170,171,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

sub58821-20100

main58821-20130-03iAT175..5F198808-199208

GRAY,TRIM1#

sub58821-20130

main58821-20130-04iAT175..5F198808-199005

BLUE,TRIM8#

sub58821-20130

main58821-20130-06iAT175..5F198808-199208

SABLE,TRIM4#

sub58821-20130

main58821-20130-14iAT175..5F199005-199208

DARK BLUE,TRIM8#

sub58821-20130

main58821-20140-03iAT175..4FC198808-199208

GRAY,TRIM1#

sub58821-20140

main58821-20140-04iAT175..4FC198808-199005

BLUE,TRIM8#

sub58821-20140

main58821-20140-06iAT175..4FC198808-199208

SABLE,TRIM4#

sub58821-20140

main58821-20140-14iAT175..4FC199005-199208

DARK BLUE,TRIM8#

sub58821-20140

main58821-20190-03iAT175..5F199005-199208

main58821-20190-04iAT175..5F199005-199208

main58821-20190-06iAT175..5F199005-199208

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-20100-03iAT170,171,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199211

GRAY,TRIM1#

main58901-20100-04iAT170,171,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main58901-20100-06iAT170,171,CT170,ST170..S,SE,SG,SGEXT,SX198805-199211

SABLE,TRIM4#

main58901-20100-14iAT170,171,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

main58901-20110-03iAT175198808-199208

GRAY,TRIM1#

main58901-20110-04iAT175198808-199005

BLUE,TRIM8#

main58901-20110-06iAT175198808-199208

SABLE,TRIM4#

main58901-20110-14iAT175199005-199208

DARK BLUE,TRIM8#

main58911-20090-03iAT170,CT176,ET176..DX,STD198805-199211

GRAY,TRIM1#

sub58911-20090

main58911-20090-06iCT176,ET176..DX198805-199005

SABLE,TRIM4#

sub58911-20090

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20080-03iAT17#,CT17#,ET176,ST170..S,SE,SG,SGEXT,SV,SX198805-199211

GRAY,TRIM1#

main58905-20080-04iAT17#,CT170,ST170..S,SE,SG,SGEXT198805-199005

BLUE,TRIM8#

main58905-20080-06iAT17#,CT170,ST170..S,SE,SG,SGEXT,SX198805-199211

SABLE,TRIM4#

main58905-20080-14iAT17#,CT170,ST170..S,SE,SG,SGEXT199005-199208

DARK BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-89101iST170..SE198805-199211

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iAT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199211

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iST170..SE198808-199208

main58964-20020iST170..SE198808-199208

main58964-20020iAT17#,CT17#,ET176,ST170..S,SE,SG,SGEXT,SV,SX198808-199211

main58964-20020iST170..SX199005-199211

main58964-30060iAT17#,CT17#,ET176,ST170..S,SE,SG,SGEXT,SV,SX198805-198808

main58964-30060iAT17#,CT17#,ET176,ST170..S,SE,SG,SGEXT,SV,SX198805-198808

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAT17#,CT17#,ET176,ST170..S,SE,SG,SGEXT,SV,SX198805-199211

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iAT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX198805-199211

58989PANEL, CONSOLE COMPARTMENT DOOR

main58989-20030iAT171..GLIM198805-199211

7804

9011906003

main90119-06003

9046804157

main90468-04157

9054104079

main90541-04079

9166540616

main91665-40616

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

24 parts on this diagram · 2 diagrams in section
