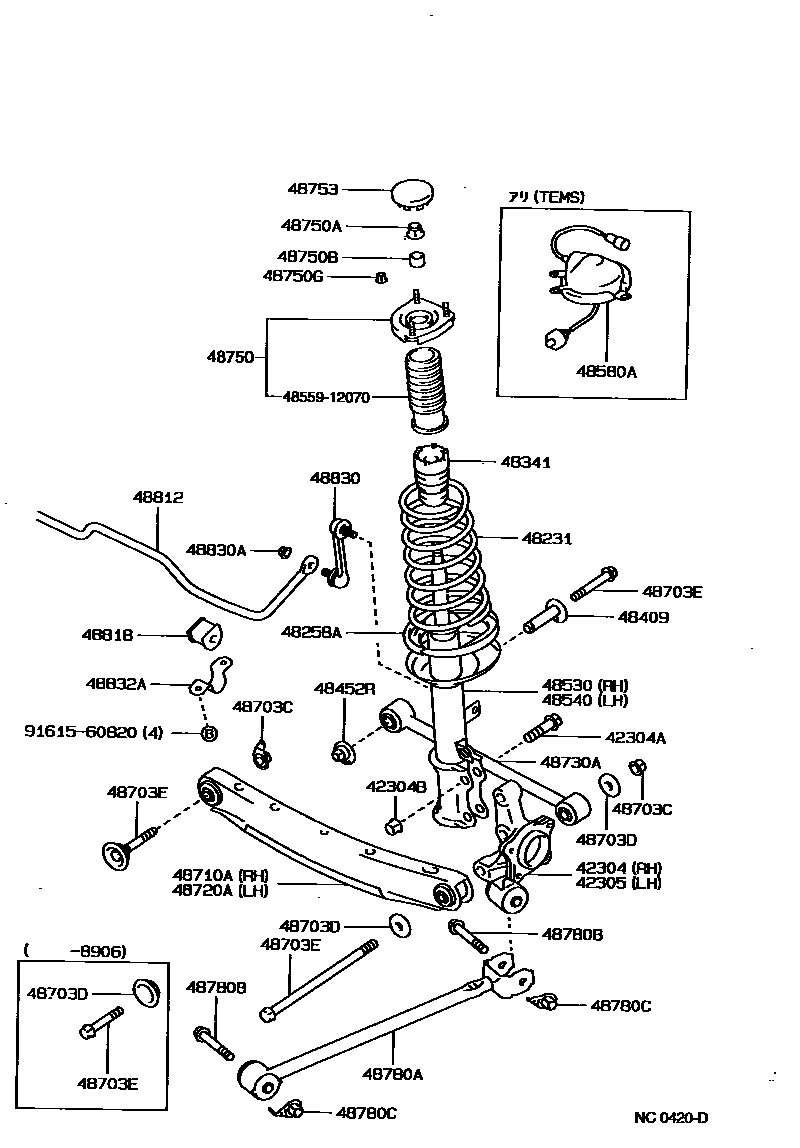

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20050iAT171..EFIS198808-199208

main42304-32020iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX198805-199211

main42304-32030iAT171..GLIM198805-199208

main42304-32050iAT175198808-199208

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-15001iAT17#,CT170,ST170198805-199211

42304BNUT (FOR REAR AXLE CARRIER)

main90179-15001iAT171..EFIS198805-199211

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20050iAT171..EFIS198808-199208

main42305-32020iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX198805-199211

main42305-32030iAT171..GLIM198805-199208

main42305-32050iAT175198808-199208

48231SPRING, COIL, REAR

main48231-20721iAT170,CT170,ST170..WG198805-199211

sub48231-2B810

main48231-20860iAT171..GLIM198805-199208

sub48231-2D890

main48231-2B171iAT170..SED198805-199208

main48231-2B220iAT175198808-199208

main48231-2B280iST170..SED;AT171..EFIS198805-199208

sub48231-2G210

main48231-2B290iAT171,CT170..(S,SE,SG)..(DSL,EFI)198805-199208

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-32010iAT170..CBR;ST170..SX..CI;AT17#,CT170,ST170..SED..(CI,DSL,EFI,EFIS)198805-199211

48341BUMPER, REAR SPRING

main48341-20090iAT171..GLIM198805-199208

main48341-20100iAT175198808-199208

main48341-20120iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX198805-199211

main48341-21010iCT176,ET176..3FC,4F,5F198805-199211

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-20030iAT175198808-199208

main48409-32020iAT170,171,CT170,ST170198805-199211

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-20010iAT175198808-199208

main48452-32020iAT170,171,CT170,ST170198805-199211

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20200iAT171..GLIM198805-199208

main48530-20450iAT175198808-199208

sub48530-32150

main48530-20460iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX198805-199211

main48530-20490iAT171..GLIM198805-199208

sub48530-20340

main48531-80200iCT176,ET176198805-199211

sub48531-80214

main48531-80205iCT176,ET176..MTM..DX198805

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80200iCT176,ET176198805-199211

sub48531-80214

main48531-80205iCT176,ET176..MTM..DX198805

main48540-20200iAT171..GLIM198805-199208

main48540-20450iAT175198808-199208

sub48540-32150

main48540-20460iAT170,171,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX198805-199211

main48540-20490iAT171..GLIM198805-199208

sub48540-20340

48580ACAP ASSY, SHOCK ABSORBER

main48580-20020iAT171..GLIM198805-199005

main48580-20040iAT171..EFI199005-199208

main48590-20010iAT171..EFI199005-199208

48703CNUT(FOR REAR SUSPENSION ARM)

main90170-14006iAT175198808-199208

main90179-12063iAT170,171,CT170,ST170198805-199211

BODY SIDE

main90179-14019iAT170,171,CT170,ST170198805-199211

CARRIER SIDE

main90179-14019iAT171..GLIM198805-199005

CARRUER SIDE

48703DWASHER(FOR REAR SUSPENSION ARM)

main90201-14017iAT170,171,CT170,ST170198805-198906

CARRIER SIDE

main90201-14017iAT170,171,CT170,ST170198906-199211

main90209-13005iAT175198808-199208

main90209-13008iAT170,171,CT170,ST170198805-198906

BODY SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-12132iAT170,171,CT170,ST170198805-199211

main90105-12159iAT170,171,CT170,ST170198805-198906

sub90109-12034

main90105-14036iAT170,171,CT170,ST170198805-199211

main90109-12034iAT170,171,CT170,ST170198906-199211

main90119-12083iAT175198808-199208

main90119-12126iAT175198808-199208

main90119-14024iAT175198808-199208

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20060iAT170,171,CT170,ST170198805-199106

sub48710-20220

main48710-20090iAT175198808-199108

main48710-20170iAT175199108-199208

main48710-20220iAT170,171,CT170,ST170199106-199211

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20090iAT175198808-199108

main48710-20170iAT175199108-199208

main48720-20050iAT170,171,CT170,ST170198805-199106

sub48720-20090

main48720-20090iAT170,171,CT170,ST170199106-199211

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-20050iAT175198808-199108

main48730-20060iAT170,171,CT170,ST170198805-199211

main48730-20130iAT175199108-199208

48750SUPPORT ASSY, REAR SUSPENSION

main48750-20040iAT175198808-199208

main48750-20050iAT170,171,CT170,ST170198805-199211

main48750-20070iAT171..EFI198805-199208

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-14015iAT171..GLIM198805-199005

main90179-14015iAT170..SE198808-199005

main90179-14015iAT170,171,CT170,ST170198805-199211

main94182-11400iAT175198808-199208

48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90387-15012iAT170,171,CT170,ST170198805-199211

sub90387-15027

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122iAT17#,CT170,ST170198805-199211

48753COVER, REAR SUSPENSION SUPPORT

main48753-12010iAT170,171,CT170,ST170198805-199211

main48753-12020iAT171..GLIM198805-199208

main48753-16010iAT175198808-199208

48780AROD ASSY, STRUT, REAR

main48780-20030iAT175198808-199208

main48780-20040iAT170,171,CT170,ST170198805-199211

48780BBOLT(FOR STRUT ROD)

main90119-12131iAT17#,CT170,ST170198805-199211

48780CNUT(FOR STRUT ROD)

main90179-12062iAT17#,CT170,ST170198805-199211

CARRIER SIDE

main90179-12063iAT175198808-199208

BODY SIDE

main90179-12065iAT170,171,CT170,ST170198805-199211

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-20250iAT171..GLIM198805-199208

main48812-20270iAT171..GLIM198805-199208

main48812-20320iCT170..SED198805-199208

main48812-20340iAT170198805-199211

main48812-20360iST170;AT171,CT170..S,SV198805-199211

main48812-20370iAT175198808-199208

48818BUSH, STABILIZER, REAR

main48818-20070iAT171..GLIM198805-199208

sub48818-12150

main48818-20080iAT171..GLIM198805-199208

main48818-20100iAT175198808-199208

sub48818-12160

main48818-20140iCT170..SED198805-199208

main48818-20150iAT170198805-199211

main48818-20160iST170;AT171,CT170..S,SV198805-199211

48830LINK ASSY, REAR STABILIZER

main48830-20010iAT175198808-199208

main48830-32010iAT171..EFIS198805-199211

sub48830-20010

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iAT17#,CT170,ST170198805-199211

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20020iAT170,171,CT170,ST170198805-199211

main48832-20030iAT175198808-199208

main48832-32020iAT171..EFI;AT170,ST170..SE..(CBR,CI)198805-199208

4855912070COVER, SHOCK ABSORBER, DUST

main48559-12070

9161560820

main91615-60820

33 parts on this diagram · 3 diagrams in section
