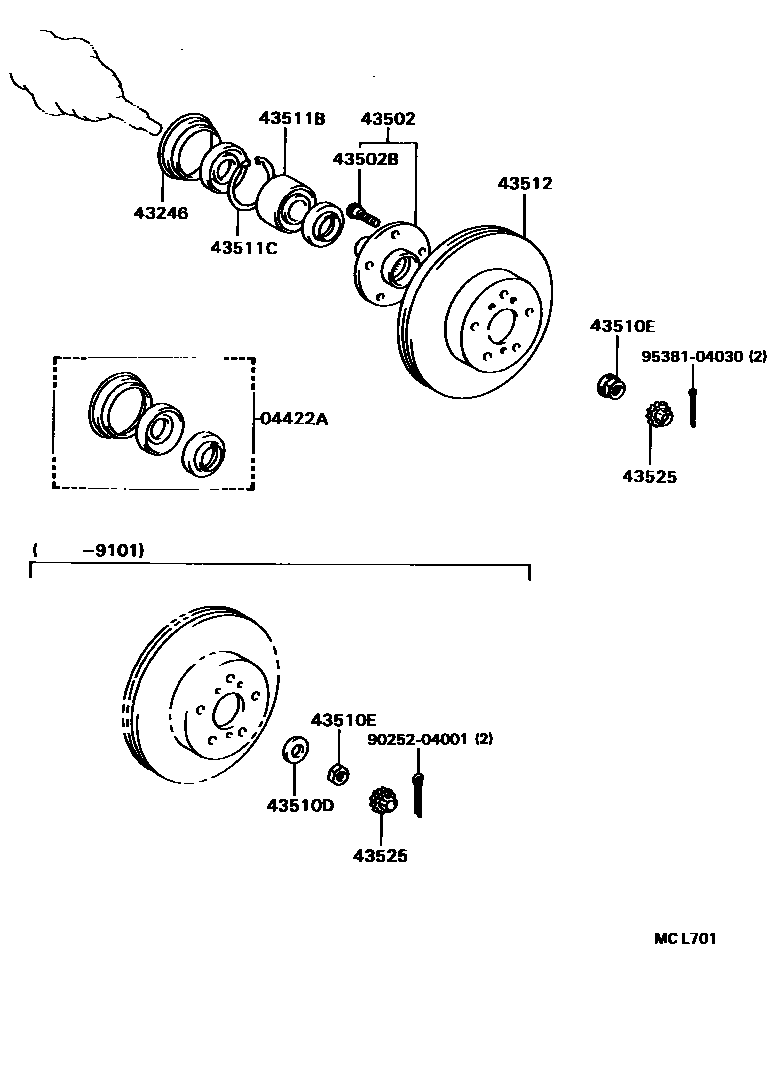

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iAT17#,ST170..EFI198805-199211

main04422-20070iAT171..EFIS199005-199208

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-12020iAT171..EFIS199005-199208

main43246-20010iCT176..4FC198805-199211

43502HUB SUB-ASSY, FRONT AXLE

main43502-20080iAT171..S198805-198908

sub43502-20110

main43502-20080iAT170,ET176,ST170..VAN,WG198902-198903

sub43502-20110

main43502-20110iAT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)198908-199211

main43502-32040iAT171..GLIM198805-198908

sub43502-32050

main43502-32040iAT175198808-198908

sub43502-32050

main43502-32050iAT171..EFIS;AT171,175..GLIM,SE,SG,SGEXT198908-199208

main43503-20010iAT170,171,ST170..S,SE198808-198908

main43503-20020iAT170,171,ST170..S,SE198908-199005

main43503-32010iAT171..GLIM198805-198908

sub43503-32020

main43503-32020iAT171,175..EFI198908-199208

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAT171..GLIM198805-198908

main90942-02049iAT171..EFIS198908-199208

main90942-02049iAT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)198908-199211

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iAT17#,CT17#,ET176,ST170198805-199101

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iAT17#,CT17#,ET176,ST170198805-199101

main90179-22020iAT17#,CT17#,ET176,ST170199101-199211

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iAT17#,CT17#,ET176,ST170198805-199211

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iAT17#,CT17#,ET176,ST170198805-199211

43512DISC, FRONT

main43512-20190iAT175198808-199208

main43512-20240iAT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX198805-198808

sub43512-20310

main43512-20310iAT170,171,CT17#,ET176,ST170..(DX,S,SE,SG,SGEXT,STD,SV,SX)..(CBR,CI,DSL,EFI)198808-199211

sub43512-12440

main43512-32090iAT171..EFIS;AT171..GLIM198805-199208

sub43512-32170

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAT17#,CT17#,ET176,ST170198805-199101

main43525-20030iAT17#,CT17#,ET176,ST170199101-199211

9025204001

main90252-04001

9538104030

main95381-04030

12 parts on this diagram · 1 diagram in section
