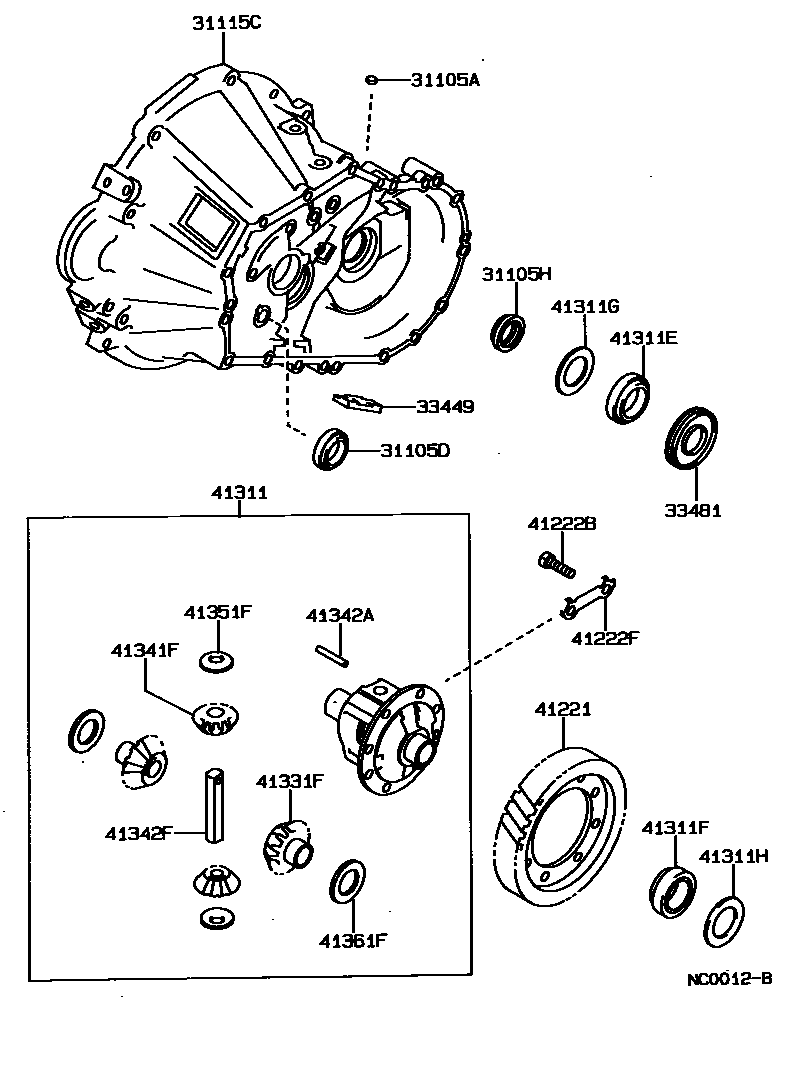

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C40,C50,C51,C52 0002 1S50 0003 1E55F5 0004 1A240L,A240E 0005 1A241L 0006 1A132L 0007 1A140L 0008 1A241H

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32014iCT17#..5F198805-199004

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32020iST170..5F198805-199004

sub31105-32061

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32050iCT17#..5F199004-199006

sub31105-32051

sub90560-42001

main31105-32051iCT17#..5F199006-199106

sub31105-32052

sub11355-64051

sub11356-64040

sub90119-06670

main31105-32052iCT17#..5F199106-199205

sub31105-33020

sub90389-14043

main31105-32060iST170..5F199004-199006

sub31105-32061

sub90560-42001

main31105-32061iST170..5F199006-199108

sub31105-32062

sub11356-74030

sub90119-06670

main31105-32062iST170..5F199108-199205

sub31105-33030

sub90389-14043

main31105-33020iCT17#..5F199205-199211

sub31105-33022

main31105-33030iST170..5F199205-199211

sub31105-32080

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAT170,171,ET176..MTM198805-199211

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAT170,171,ET176..MTM198805-199211

sub90311-25028

main90311-30002iCT17#,ST170..5F198805-199005

sub90311-30006

main90311-30006iCT17#,ST170..5F198808-199211

sub90311-30017

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iAT170,171,ET176..MTM198805-199108

sub90311-34016

main90311-34016iAT170,171,ET176..MTM199108-199211

main90311-35014iCT17#,ST170..5F198805-199005

sub90311-35026

main90311-35026iCT17#,ST170..5F199005-199211

sub90311-35019

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iAT170,171..MTM198805-199211

sub31115-16040

sub33125-12011

main31115-12060iET176..MTM198805-199211

sub31115-16050

sub33125-12011

main31115-12070iAT175..5F198906-199208

sub31115-12071

main31115-17013iAT175..5F198808-198906

sub31115-12070

33449MAGNET, TRANSMISSION

main33449-12010iAT170,171,ET176..MTM198805-199005

sub33449-12020

main33449-12020iAT170,171,ET176..MTM199005-199211

main33449-20010iAT175..5F198808-199208

main33449-32010iCT17#,ST170..5F198805-199106

sub33449-32020

main33449-32020iCT17#,ST170..5F199106-199211

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iAT170,171,ET176..MTM198805-199211

main33481-12060iAT175..5F198808-198910

main33481-12090iAT175..5F198910-199208

main33481-32010iCT17#,ST170..5F198805-199004

main33481-32060iCT17#,ST170..5F199004-199211

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12160iAT170..MTM198805-199101

sub41221-12310

main41221-12170iAT171..5F..S198805-199005

sub41221-12320

main41221-12180iET176198805-199101

sub41221-12330

main41221-12190iAT170..4FC198805-199211

main41221-12270iAT175..5F198808-199208

main41221-12310iAT170..MTM199101-199211

sub41221-52280

main41221-12330iET176..3FC199005-199211

sub41221-52260

main41221-12340iAT171..5F199101-199208

sub41221-52270

main41221-17010iAT171..5F..EFIS;AT171..5F..GLIM198805-199101

sub41221-12340

main41221-20210iCT17#..4FC198805-199211

main41221-20230iAT171..4FC198805-199208

main41221-20280iAT175..4FC198808-199208

main41221-32030iCT17#,ST170..5F198805-199005

main41221-32080iST170;CT17#..5F199002-199211

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iST170;CT17#..5F198805-199211

main90101-11353iCT17#..4FC;AT170,171,ET176198805-199211

main90105-12150iAT175..5F198808-199208

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAT170,171,ET176..MTM198805-199211

main41222-12050iAT170,171,ET176..ATM198805-199211

main41222-20030iCT17#..4FC198912-199211

main41222-32010iCT17#,ST170198805-199211

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAT170,171,ET176..MTM198805-199211

sub41301-12041

sub90105-11040

main41301-12050iET176..3FC198805-198902

sub41301-12051

main41301-12051iET176..3FC198902-199211

main41301-12120iAT175..4FC198808-199208

main41301-17010iCT170..4FC198805-198811

sub41301-17030

main41301-17020iAT170,171..4FC198805-198902

sub41301-17021

main41301-17021iAT170,171..4FC198902-199211

sub41301-20150

sub90366-42001

main41301-17030iCT170..4FC198811-198909

sub41301-20110

sub90366-44001

sub90368-40002

main41301-20110iCT17#..4FC198909-199111

sub41301-20112

main41301-20112iCT17#..4FC199111-199211

main41301-20120iST170..4FC199101-199106

sub41301-20131

main41301-20131iST170..4FC199106-199211

main41301-32010iCT17#,ST170..5F198805-199004

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32021iST170..4FC198805-198811

sub41301-32022

main41301-32022iST170..4FC198811-198907

sub41301-32023

main41301-32023iST170..4FC198907-199101

sub41301-32071

main41301-32060iCT17#,ST170..5F199004-199211

sub41301-32061

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAT170,171,ET176..MTM198805-199211

main90366-40016iST170;CT17#..5F198805-199211

main90366-57001iAT175..5F198808-199208

main90366-67001iAT175..4FC198808-199208

main90368-38006iAT170,171,ET176..ATM198805-199211

sub90368-38002

main90368-40002iCT17#..4FC198805-199211

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iCT17#,ST170..5F198805-199211

sub90366-40064

main90366-44001iST170..4FC198805-199211

main90366-50014iAT175..5F198808-199208

main90366-55028iAT175..4FC198808-199208

main90368-38006iET176..3FC198805-199211

sub90368-38002

main90368-38010iAT170,171,ET176..4F,4FC,5F198805-199211

main90368-40016iCT170..4FC198805-198909

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iET176..3FC198805-199211

main90201-41003iET176..3FC198805-199211

main90201-41004iET176..3FC198805-199211

main90201-41005iET176..3FC198805-199211

main90201-41006iET176..3FC198805-199211

main90201-41007iET176..3FC198805-199211

main90201-41008iET176..3FC198805-199211

main90201-41009iET176..3FC198805-199211

main90201-41010iAT170,171,ET176..ATM198805-199211

main90201-41011iET176..3FC198805-199211

main90201-41012iET176..3FC198805-199211

main90201-41013iET176..3FC198805-199211

main90201-41014iET176..3FC198805-199211

main90201-41015iET176..3FC198805-199211

main90201-41016iET176..3FC198805-199211

main90201-41017iET176..3FC198805-199211

main90201-41018iET176..3FC198805-199211

main90201-41019iET176..3FC198805-199211

main90201-41020iET176..3FC198805-199211

main90201-41021iET176..3FC198805-199211

main90201-41022iET176..3FC198805-199211

main90201-41023iET176..3FC198805-199211

main90201-41045iAT170,171,ET176..MTM198805-199211

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iET176..3FC198805-199211

main90201-41024iAT170,171..4FC198805-199211

main90201-41025iAT170,171..4FC198805-199211

main90201-41026iAT170,171..4FC198805-199211

main90201-41027iAT170,171..4FC198805-199211

main90201-41028iAT170,171..4FC198805-199211

main90201-41029iAT170,171..4FC198805-199211

main90201-41030iAT170,171..4FC198805-199211

main90201-41031iAT170,171..4FC198805-199211

main90201-41032iAT170,171..4FC198805-199211

main90201-41033iAT170,171..4FC198805-199211

main90201-41034iAT170,171..4FC198805-199211

main90201-41035iAT170,171..4FC198805-199211

main90201-41036iAT170,171..4FC198805-199211

main90201-41039iAT170,171..4FC198805-199211

main90201-41040iAT170,171..4FC198805-199211

main90201-41041iAT170,171..4FC198805-199211

main90201-41042iAT170,171..4FC198805-199211

main90201-41043iAT170,171..4FC198805-199211

main90201-41044iAT170,171..4FC198805-199211

main90201-41046iAT170,171,ET176..MTM198805-199211

sub90564-41014

main90201-41047iAT170,171,ET176..MTM198805-199211

sub90564-41015

main90201-41048iAT170,171,ET176..MTM198805-199211

sub90564-41016

main90201-41049iAT170,171,ET176..MTM198805-199211

sub90564-41017

main90201-41050iAT170,171,ET176..MTM198805-199211

sub90564-41018

main90201-41051iAT170,171,ET176..MTM198805-199211

sub90564-41019

main90201-41052iAT170,171,ET176..MTM198805-199211

sub90564-41020

main90201-41053iAT170,171,ET176..MTM198805-199211

sub90564-41021

main90201-41054iAT170,171,ET176..MTM198805-199211

sub90564-41022

main90201-41055iAT170,171,ET176..MTM198805-199211

sub90564-41023

main90201-41056iAT170,171,ET176..MTM198805-199211

sub90564-41024

main90201-41057iAT170,171,ET176..MTM198805-199211

sub90564-41025

main90201-41058iAT170,171,ET176..MTM198805-199211

sub90564-41026

main90201-41059iAT170,171,ET176..MTM198805-199211

sub90564-41027

main90201-41060iAT170,171,ET176..MTM198805-199211

sub90564-41028

main90201-41061iAT170,171,ET176..MTM198805-199211

sub90564-41029

main90201-41062iAT170,171,ET176..MTM198805-199211

sub90564-41030

main90201-41063iAT170,171,ET176..MTM198805-199211

sub90564-41031

main90201-41064iAT170,171,ET176..MTM198805-199211

sub90564-41032

main90201-45004iCT17#..4FC198805-199211

main90201-45005iCT17#..4FC198805-199211

main90201-45006iCT17#..4FC198805-199211

main90201-45007iCT17#..4FC198805-199211

main90201-45008iCT17#..4FC198805-199211

main90201-45009iCT17#..4FC198805-199211

main90201-45010iCT17#..4FC198805-199211

main90201-45011iCT17#..4FC198805-199211

main90201-45012iCT17#..4FC198805-199211

main90201-45013iCT17#..4FC198805-199211

main90201-45014iCT17#..4FC198805-199211

main90201-45015iCT17#..4FC198805-199211

main90201-45016iCT17#..4FC198805-199211

main90201-45017iCT17#..4FC198805-199211

main90201-45018iCT17#..4FC198805-199211

main90201-45019iCT17#..4FC198805-199211

main90201-45020iCT17#..4FC198805-199211

main90201-45021iCT17#..4FC198805-199211

main90201-45022iCT17#..4FC198805-199211

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAT170,171,ET176198805-199211

main41331-12030iAT175198808-199208

main41331-32010iCT17#,ST170198805-199211

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAT170,171,ET176198805-199211

main41341-20011iAT175..5F198808-199208

main41341-22030iCT17#,ST170199005-199211

sub41039-28010

main41341-30011iCT17#,ST170198805-199005

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90249-06093iAT175..4FC198808-199208

main90250-06058iAT170,171,CT17#,ET176,ST170198805-199211

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12020iAT170,171,ET176198805-199109

sub41342-12140

main41342-12040iAT175..5F198808-199208

main41342-12060iAT175..4FC198808-199208

main41342-12110iAT170,171,ET176..ATM198902-199005

sub41342-12020

main41342-12140iAT170,171,ET176199109-199211

sub41342-20060

main41342-20050iCT17#,ST170198811-199107

sub41342-32020

main41342-32010iCT17#,ST170198805-198811

sub41342-20050

main41342-32020iCT17#,ST170..4FC199106-199211

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12010iAT175..4FC198808-199208

main41351-12020iAT170,171,ET176198805-199211

main41351-32010iCT17#,ST170198805-199211

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iAT175198808-199208

main41361-12340iAT175..4FC198808-199208

main41361-12350iAT175..5F198808-199208

main41361-12360iAT175..5F198808-199208

main41361-12370iAT175..4FC198808-199208

main41361-12380iAT175..4FC198808-199208

main41361-12390iAT175..4FC198808-199208

main41361-12400iAT175198808-199208

main41361-12410iAT175198808-199208

main41361-12420iAT175198808-199208

main41361-17010iAT170,171,CT17#..4FC198805-199211

main41361-17020iAT170,171,CT17#..4FC198805-199211

main41361-17030iAT170,171,CT17#..4FC198805-199211

main41361-17040iAT170,171,CT17#..4FC198805-199211

main41361-17050iAT170,171,CT17#..4FC198805-199211

main41361-17060iAT170,171,CT17#..4FC198805-199211

main41361-20250iST170..4FC199101-199211

main41361-20260iST170..4FC199101-199211

main41361-20270iST170..4FC199101-199211

main41361-20280iST170..4FC199101-199211

main41361-20290iST170..4FC199101-199211

main41361-20300iST170..4FC199101-199211

main41361-22020iST170;AT170,171,CT17#,ET176..3FC,4F,5F198805-199211

main41361-22030iAT170,171,CT17#,ET176,ST170..3FC,4F,5F198805-199211

main41361-22040iST170;AT170,171,CT17#,ET176..3FC,4F,5F198805-199211

main41361-22140iAT170,171,CT17#,ET176,ST170..3FC,4F,5F198805-199211

main41361-22150iST170;AT170,171,CT17#,ET176..3FC,4F,5F198805-199211

main41361-22160iST170;AT170,171,CT17#,ET176..3FC,4F,5F198805-199211

21 parts on this diagram · 8 diagrams in section
