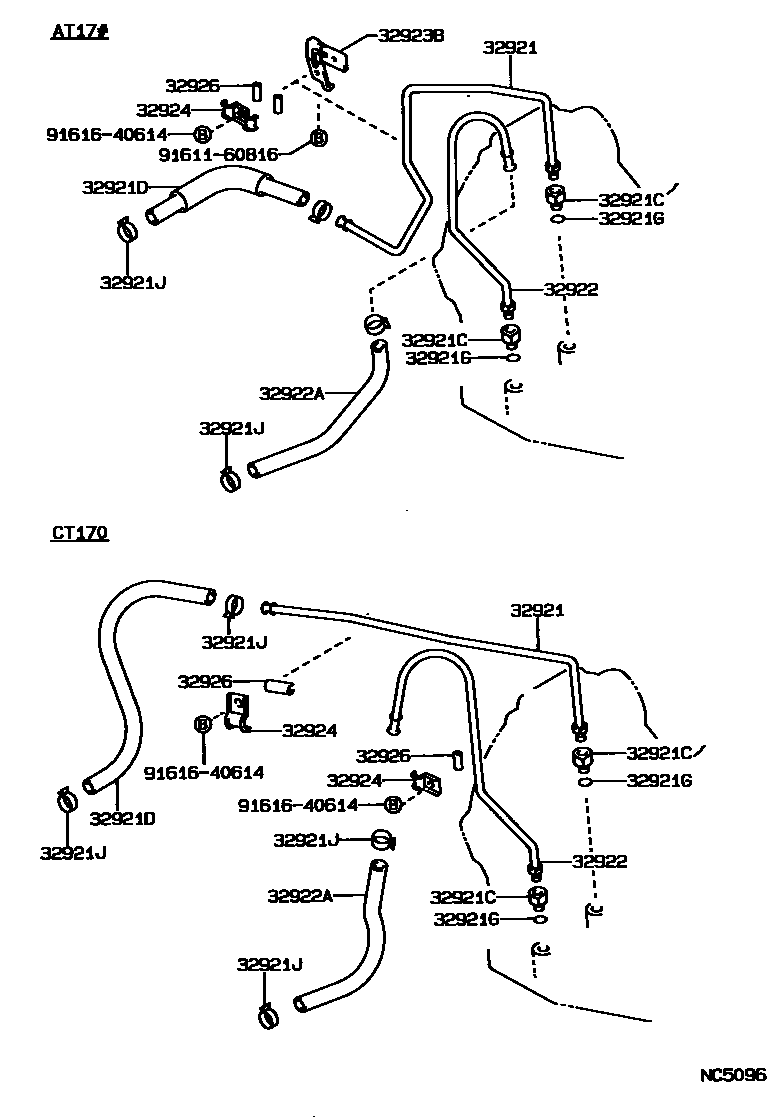

OIL COOLER & TUBE (ATM)

0001 1A240L,A240E,A240L 0002 1A241H 0003 1A241H 0004 1A132L 0005 1A140L

32921TUBE, OIL COOLER INLET, NO.1

main32921-12261iAT175..4FC199005-199208

sub32921-12260

main32921-12350iAT170,171..4FC198805-198910

main32921-12351iAT170,171..4FC198910-199211

main32921-12370iET176..3FC198805-198910

main32921-12371iET176..3FC198910-199211

main32921-20220iCT17#..4FC198805-199002

main32921-20221iCT17#..4FC199002-199211

main32921-20290iST170..4FC..EFI198805-199211

main32921-20291iST170..4FC199002-199005

sub32921-20290

main32921-20300iAT175..4FC198808-198910

main32921-20301iAT175..4FC198910-199005

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iST170..4FC198805-199211

OUTLET

main90404-14007iAT175,ET176,ST170..ATM198805-199211

INLET

main90407-14003iET176..3FC198805-199211

OUTLET

main90407-16015iAT175..4FC198808-199208

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-12131iET176..3FC198805-199211

main32941-12141iAT175..4FC199005-199208

main32941-12191iAT171..4FC..EFIS199005-199208

sub32941-12200

main32941-20151iAT170,171..4FC..(DX,S,SE,SG,SGEXT,SV)..(CBR,EFI)198805-199211

main32941-20171iAT171..4FC..GLIM198805-199208

main32941-20191iAT175..4FC198808-199005

main90445-15020iST170..4FC199005-199211

main90445-15039iCT170..4FC198805-198911

sub90445-15058

main90445-15042iST170..4FC199002-199005

main90445-15058iCT17#..4FC198911-199211

main90445-16026iST170..4FC198805-199002

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAT175..4FC198805-199211

ID=10.516

main90301-15004iAT175..4FC198808-199208

ID=15.41

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iAT17#,CT17#,ET176,ST170..ATM198805-199211

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12200iET176..3FC198805-198910

main32922-12201iET176..3FC198910-199211

main32922-12230iAT175..4FC198808-198910

main32922-12231iAT175..4FC198910-199208

main32922-20210iCT17#..4FC198805-199002

main32922-20211iCT17#..4FC199002-199211

main32922-20270iAT170,171..4FC198805-198910

main32922-20271iAT170,171..4FC198910-199211

main32922-20320iST170..4FC199005-199211

main32922-32040iST170..4FC198805-198902

sub32922-32041

main32922-32041iST170..4FC198902-199003

main32922-32042iST170..4FC199003-199005

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15020iCT17#..4FC199005-199211

main90445-15027iAT170,171..4FC198805-198910

sub90445-15052

main90445-15050iET176..3FC198805-199211

main90445-15051iAT175,ST170..4FC..EFI198808-199211

sub90445-15054

main90445-15052iAT170,171..4FC198910-199211

main90445-16026iCT17#,ST170..4FC198805-199005

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20111iST170..4FC199005-199211

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12110iET176..3FC198805-199211

main32923-12150iAT17#..4FC198805-199110

main32923-20090iST170..4FC198805-199005

main32923-20100iAT175..4FC198808-199005

main32923-20140iAT17#..4FC199110-199211

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-20110iST170..4FC198909-198910

sub32923-20111

main32923-20111iST170..4FC198910-199005

main32923-32021iST170..4FC198805-198909

main32924-20070iST170..4FC199005-199211

main90462-10082iCT17#,ET176..ATM198805-199211

main90462-12085iAT17#..4FC198805-199211

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iAT175..4FC198811-199208

main32926-30011iAT17#,CT170,ET176..ATM198805-199211

9161160816

main91611-60816

9161640614

main91616-40614

13 parts on this diagram · 5 diagrams in section
