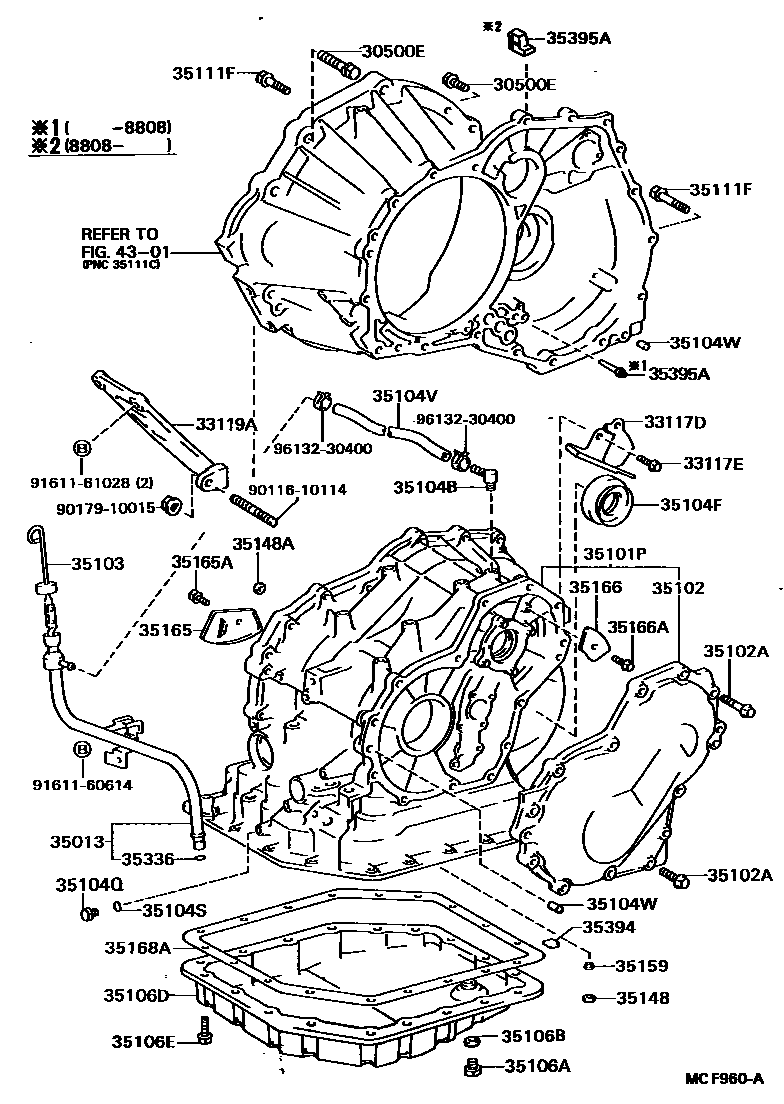

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A240L,A240E,A241L,A241H 0002 1A132L 0003 1A140L

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCT17#,ST170..4FC198805-199211

sub91641-H0820

main90105-10077iAT17#,CT17#,ST170..4FC198805-199211

main90105-10097iET176..3FC198805-199211

main90119-12168iAT17#,ET176..ATM198805-199211

main91611-61025iAT17#,ET176..ATM..(DX,S,SE,SG,SGEXT,SV)198805-199211

sub91612-61025

main91619-61245×2iAT17#,ET176..ATM198805-199005

main91621-60614iET176..3FC198805-199211

main91651-41022iST170..4FC198805-199211

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAT17#,CT17#..4FC198805-199211

main33117-12040iET176..3FC198805-199211

main33117-32022iST170..4FC198805-199211

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAT17#,CT17#,ET176,ST170..ATM198805-199211

sub91641-H0820

33119APLATE, STIFFENER, LH(ATM)

main33119-17011iAT171..4FC..GLIM198805-199208

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12230iAT170,171..4FC..(DX,S,SE,SG,SV)198805-199004

main35013-12260iET176..3FC198805-199211

main35013-20260iST170..4FC198805-199005

main35013-20270iCT17#..4FC198805-198912

main35013-20280iAT171..4FC..GLIM198805-199004

main35013-20281iAT171..4FC..GLIM199004-199208

main35013-20300iAT175..4FC198808-199208

main35013-20390iAT170,171..4FC..(DX,S,SE,SG,SGEXT,SV)199004-199211

main35013-20450iST170..4FC199005-199211

main35013-20480iCT17#..4FC198912-199008

main35013-20481iCT17#..4FC199008-199211

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-12021iAT170,171..4FC198805-199211

main35101-12070iAT175..4FC198808-199208

main35101-17012iCT170..4FC198805-199005

main35101-20030iCT176..4FC198911-199005

main35101-20031iCT17#..4FC199201-199211

sub35101-20032

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iET176..3FC198805-199211

main35102-20030iCT17#..4FC198805-199211

sub35102-20031

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050×9iET176..3FC198805-199211

main90105-08056×2iET176..3FC198805-199211

main90105-08065×10iAT17#,CT17#..4FC198805-199211

main90105-08068×3iAT17#,CT17#..4FC198805-199005

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12120iAT170,171..4FC198805-199211

main35103-12160iET176..3FC198805-199211

main35103-20130iST170..4FC198805-198901

main35103-20140iCT17#..4FC198805-199211

main35103-20150iAT175..4FC198808-199208

main35103-20160iST170..4FC199005-199211

main35103-32060iST170..4FC198901-199005

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iET176,ST170..ATM198805-199211

main90930-03101iAT17#,CT17#..4FC198805-199211

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34010iAT170,171..4FC198805-198811

main90311-34012iET176..3FC198805-199211

main90311-34013iAT170,171..4FC198811-199211

sub90311-34026

main90311-35019iST170..4FC198805-199211

main90311-35020iCT17#..4FC198807-199211

sub90311-35047

main90311-44004iAT175..4FC198808-199208

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAT17#,CT170..4FC198805-199005

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAT17#,CT17#..4FC198805-199211

35104VHOSE (FOR BREATHER PLUG)

main90447-11017iCT17#..4FC198805-199211

main90447-11019iAT170,171..4FC198805-199211

main90447-11024iAT175..4FC198808-199208

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007×2iAT17#,CT17#..4FC198805-199211

HOUSING SIDE

main90250-11001×2iAT17#,CT17#..4FC198805-199211

RR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAT17#,CT17#..4FC198805-199211

sub90341-10011

main90341-18016iET176,ST170..ATM198805-199211

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAT17#,CT17#..4FC198805-199211

main90430-18008iET176,ST170..ATM198805-199211

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021iET176,ST170..ATM198805-199005

main35106-10022iET176,ST170..ATM199008-199211

main35106-12050iAT17#,CT170..4FC198805-198908

main35106-12070iAT17#,CT17#..4FC198912-199211

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×15iAT17#,CT17#..4FC198805-199211

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iAT17#,CT17#..4FC198805-199211

main90105-08066iAT17#,CT17#..4FC198805-199211

main90105-08068×5iAT170,171,CT17#..4FC198805-199005

sub90105-08333

main90105-08071×2iAT17#,CT17#..4FC198805-199211

main90105-08082iCT17#..4FC198805-199211

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAT17#,CT17#,ET176,ST170..ATM198805-199211

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×2iAT171..4FC..GLIM198805-199208

35159GASKET, BRAKE DRUM

main35159-20010iAT17#,CT17#..4FC198805-199211

main35159-32011iET176,ST170..ATM198805-199211

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT17#..4FC198805-199211

main35165-20010iCT17#..4FC198805-199211

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAT17#,CT17#..4FC198805-199005

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iAT17#,CT17#..4FC198805-199211

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAT17#,CT176..4FC;CT170..4FC..(SG,SV)199005-199211

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAT17#,CT17#..4FC198805-199211

main35168-32010iET176,ST170..ATM198805-199211

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT17#,CT17#,ET176,ST170..ATM198805-199211

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iAT17#,CT17#,ET176,ST170..ATM198805-199211

35395ASTRAINER, GOVERNOR OIL

main35395-12010iAT175..4FC198808-199208

main35395-12020iAT170,171,CT17#..4FC..(DX,S,SE,SG,SGEXT,SV)198808-199211

main35395-20010iAT17#,CT170..4FC..(DX,S,SE,SG,SV)198805-198808

main35395-32011iET176..3FC198805-198808

main35395-32020iST170..4FC198805-198808

sub35395-32030

4301

9011610114

main90116-10114

9017910015

main90179-10015

9161160614

main91611-60614

9161161028

main91611-61028

9613230400

main96132-30400

37 parts on this diagram · 3 diagrams in section
