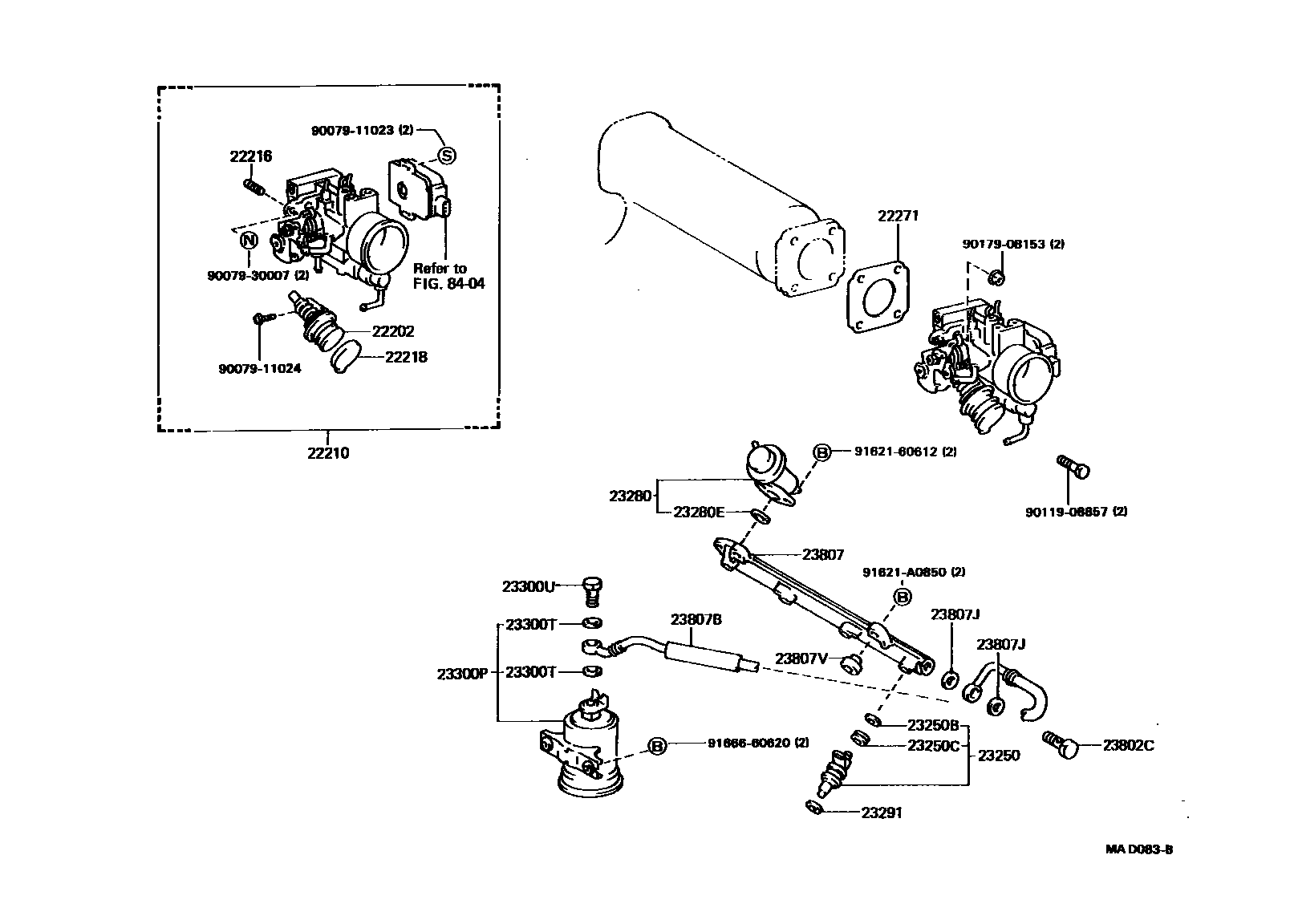

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

22202DASH POT SUB-ASSY

main22202-15010i4AFE..AT171;4AFE..AT175..5F198805-199208

main22202-15020i4AFE..AT175..4FC198808-199208

main22202-15030i4AFHE..AT171199005-199211

main22202-15040i5AFE..AT170..4FC199005-199211

22210BODY ASSY, THROTTLE

main22200-74010i4SFI..ST170198805-198810

sub22200-74013

main22200-74013i4SFI..ST170198810-198902

sub22200-74014

main22200-74014i4SFI..ST170198902-198904

sub22200-74015

main22200-74016i4SFI..ST170198904-199005

main22200-74020i4SFI..ST170198805-198810

sub22200-74023

main22200-74023i4SFI..ST170198810-198902

sub22200-74024

main22200-74024i4SFI..ST170198902-198904

sub22200-74025

main22200-74026i4SFI..ST170198904-199005

main22210-15050i5AFE..AT170..MTM199005-199211

main22210-15060i5AFE..AT170..4FC199005-199211

main22210-16190i4AGE..AT171198805-198908

main22210-16250i4AFE..AT175..5F198808-199208

main22210-16370i4AFE..AT171..5F198805-199005

main22210-16380i4AFE..AT171..4FC198805-199005

main22210-16390i4AFE..AT175..4FC198808-199208

main22210-16450i4AGE..AT171198908-198911

main22210-16560i4AGE..AT171198911-199208

sub22210-16450

main22210-16580i4AFHE..AT171199005-199208

main22210-74341i4SFE..ST170..5F199005-199106

main22210-74501i4SFE..ST170..4FC199005-199211

main22210-74690i4SFE..ST170..5F199106-199211

22216SCREW, DASH POT ADJUSTING

main22216-74010i4AF#,5AFE..AT17#198805-199211

22218COVER(FOR THROTTLE BODY)

main22218-16330i4AFHE,5AFE..AT170,171199005-199211

main22218-74310i4SFI..ST170198805-199005

22271GASKET, THROTTLE BODY

main22271-15010i4AFE..AT171,175198805-198912

sub22271-15011

main22271-15011i4AF#,5AFE..AT17#198912-199211

main22271-16020i4AGE..AT171198805-199208

main22271-74021i4SFE..ST170..4FC199005-199211

sub22271-74022

main22271-74040i4SFI..ST170198805-198907

sub22271-74041

main22271-74041i4SFI..ST170198907-199005

23250INJECTOR ASSY, FUEL

main23209-15010i5AFE..AT170199005-199211

main23209-16070i4AGE..AT171198805-198908

main23209-16100i4AFE..AT171,175198805-199208

main23209-16110i4AGE..AT171198908-199208

main23209-16120i4AFHE..AT171199005-199208

main23209-74070i4SFI..ST170198805-199005

main23209-74110i4SFE..ST170199005-199211

23250BRING, O(FOR FUEL INJECTOR)

main90099-14082i4SFI..ST170198805-199005

main90099-14083i4SFI..ST170198805-199005

main90301-07001i4SFE..ST170198805-199211

23250CGROMMET(FOR FUEL INJECTOR)

main90099-32124i4SFI..ST170198805-199005

main90480-13005i4AF#,4AGE,5AFE..AT17#198805-199211

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15010i4AFE..AT171,175198805-198901

sub23280-16120

main23280-16080i4AGE..AT171198805-199208

main23280-16120i4AF#,5AFE..AT17#198901-199211

main23280-74031i4SFE..ST170199005-199009

main23280-74060i4SFI..ST170198805-199005

main23280-74100i4SFE..ST170199009-199211

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AF#,4AGE,5AFE..AT17#198805-199211

23291INSULATOR, INJECTOR VIBRATION

main23291-16020i4AGE..AT171198908-199208

main23291-41010i4A#..AT171,175198805-199211

23300PFILTER, FUEL(FOR EFI)

main23300-19145i4AFE..AT175198808-199208

main23300-19205i4AF#,4AGE,5AFE..AT170,171198805-199211

main23300-79175i4SF#..ST170198805-199211

sub23300-79185

23300TGASKET(FOR FUEL FILTER)

main90430-12005i4SF#..ST170198805-199110

main90430-12026i4AF#,5AFE..AT17#199108-199211

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4SF#..ST170198805-199211

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i4SFE..ST170199005-199211

main90401-12097i4AF#,5AFE..AT17#198805-199211

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-15010i4AFE..AT171,175198805-198904

sub23807-15011

main23807-16050i4AGE..AT171198805-198908

sub23807-16060

main23807-16070i4AFE..AT171,175198904-199208

sub23807-15011

main23807-16090i4AGE..AT171198908-199208

sub23807-16091

main23807-74040i4SFE..ST170199005-199211

sub23807-74060

main23814-15030i4AFHE,5AFE..AT170,171199005-199211

sub23814-15031

23807BHOSE, FUEL DELIVERY PIPE

main23271-15250i4AFHE,5AFE..AT170,171199005-199211

main23271-16080i4AFE..AT171198805-199005

main23271-16110i4AFE..AT175198808-199208

main23271-74122i4SFE..ST170199005-199211

23807JGASKET, PIPE FUEL DELIVARY INLET

main90201-12109i4AF#,5AFE..AT17#198805-199109

main90430-12026i4AGE..AT171199009-199211

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020i4SFE..ST170199005-199211

main90561-08009i4AGE..AT171198805-199208

main90561-08021i4AF#,5AFE..AT17#198805-199211

8404

9007911023

main90079-11023

9007911024

main90079-11024

9007930007

main90079-30007

9011908857

main90119-08857

9017908153

main90179-08153

9162160612

main91621-60612

91621A0850

main91621-A0850

9166660620

main91666-60620

28 parts on this diagram · 9 diagrams in section
