IGNITION COIL & SPARK PLUG / GLOW PLUG

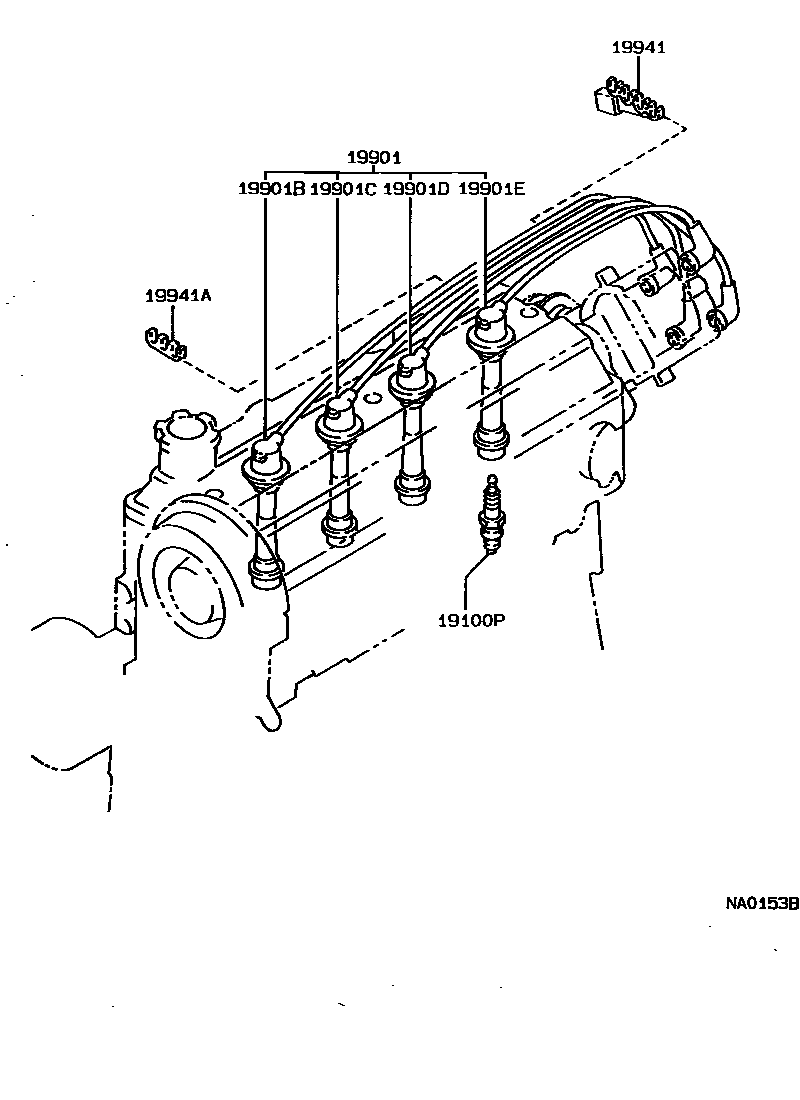

Parts diagram
19100PPLUG, SPARK
main90919-01091i198910-199211
main90919-01094i198805-198910
main90919-01104i198912-199211
main90919-01121i198805-198908
main90919-01122i198805-198908
main90919-01153i198805-199211
main90919-01164i199005-199211
main90919-01170i198805-199005
main90919-01180i198908-199208
sub90919-01231
main90919-01181i198908-199208
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21395i198805-198908
sub90919-29205
main90919-21404i198805-199005
main90919-21480i199005-199211
sub90919-29085
main90919-21483i198908-199208
main90919-22194i198805-199005
sub90919-22211
main90919-22214i198805-199208
main90919-22251i198805-199109
main90919-22284i199005-199211
sub90919-22285
main90919-22329i199109-199211
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12699i198805-198908
main90919-12707i198805-199005
sub90919-12779
main90919-12791i198805-199208
main90919-12799i198805-199005
main90919-12929i198805-199211
sub90919-12778
main90919-12982i198908-199208
main90919-15058i199005-199211
main90919-15115i199005-199211
main90919-15216i199109-199211
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12700i198805-198908
main90919-12708i198805-199005
sub90919-12780
main90919-12792i198805-199208
main90919-12800i198805-199005
main90919-12923i198805-199211
main90919-12983i198908-199208
main90919-15059i199005-199211
main90919-15114i199005-199211
main90919-15217i199109-199211
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12701i198805-198908
main90919-12709i198805-199005
sub90919-12781
main90919-12793i198805-199208
main90919-12801i198805-199005
main90919-12924i198805-199211
main90919-12984i198908-199208
main90919-15060i199005-199211
main90919-15113i199005-199211
main90919-15218i199109-199211
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12702i198805-198908
main90919-12794i198805-199208
main90919-12802i198805-199005
main90919-12921i198805-199211
main90919-12985i198908-199208
main90919-15061i198805-199211
main90919-15112i199005-199211
main90919-15219i199109-199211
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00358i199009-199211
main90464-00490i198805-199009
sub90464-00358
main90464-00637i199109-199211
main90929-01165i198805-198909
sub90929-01274
main90929-01274i198909-199211
19941ACLAMP(FOR RESISTIVE CORD)
main90464-00287i198805-199211

8 parts on this diagram · 6 diagrams in section
