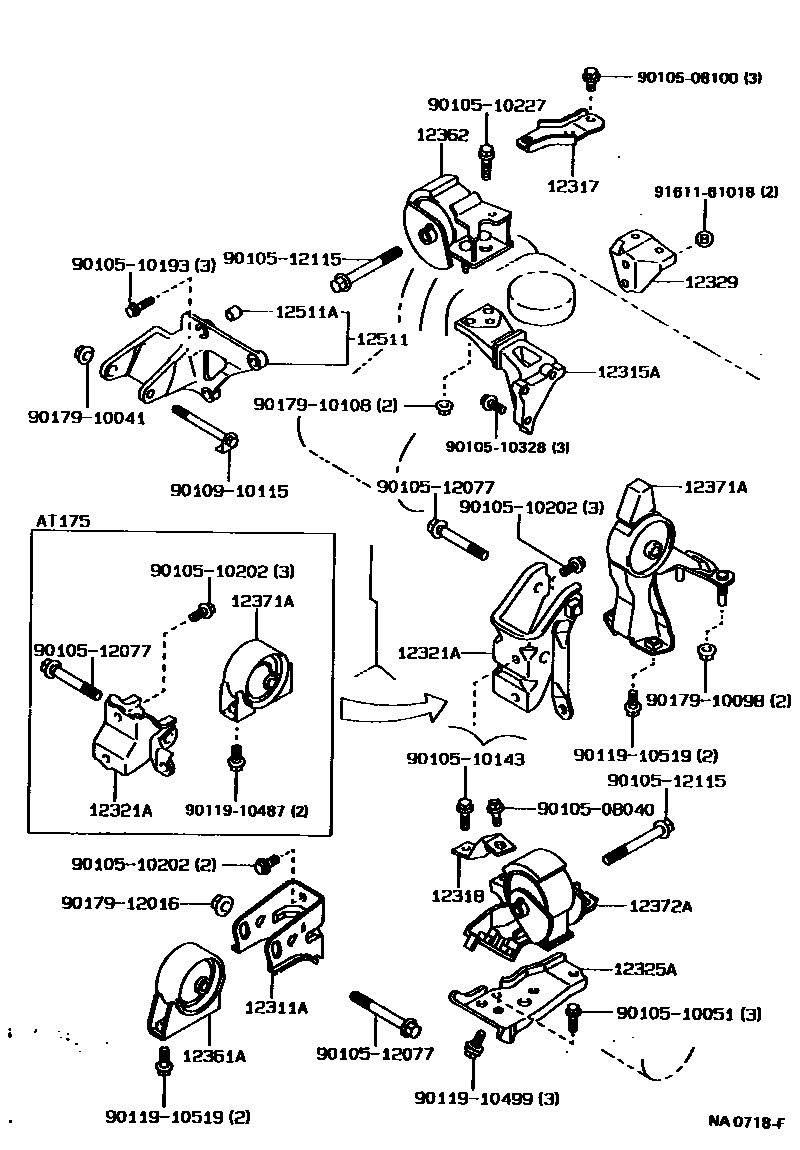

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-11080i3E..ET176¥2,030198805-199211

main12311-15120i4AF#,4AGE,5AF#..AT170,171¥2,030198805-199211

main12311-16070i4AFE..AT175¥2,290198808-199208

main12311-64050i2C..CT17#¥2,030198805-199211

main12311-74010i4SFI..ST170¥1,550198805-198908

sub12311-74080¥2,660

main12311-74080i4SF#..ST170¥2,660198908-199211

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11020i3E..ET176¥7,000198805-199211

main12315-15070i4AF#,5AF#..AT17#¥5,100198805-199211

main12315-16040i4AGE..AT171¥5,100198805-199208

main12315-64040i2C..CT17#¥8,800198805-198905

main12315-64050i2C..CT17#¥6,100198905-199211

main12315-74030i4SF#..ST170¥3,480198805-199211

12317STAY, ENGINE MOUNTING, RH

main12317-15020i4AF#,5AF#..AT17#¥1,440198805-199211

main12317-16010i4AGE..AT171¥2,710198805-199208

main12317-64030i2C..CT17#¥2,440198805-199211

main12317-74040i4SF#..ST170¥2,000198805-199211

12318STAY, ENGINE MOUNTING, LH

main12318-16010i4AF#,4AGE,5AF#..AT170,171..MTM¥1,820198805-199211

main12318-16040i4AF#,4AGE,5AF#..AT17#..4FC¥2,160198805-199211

main12318-16070i4AFE..AT175..5F¥1,220198808-199208

main12318-64020i2C..CT17#..4FC¥2,230198805-199211

main12318-74010i4SF#..ST170..4FC¥2,930198805-199211

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11080i3E..ET176..MTM¥2,490198805-199211

main12321-15080i4AFE,4AGE,5AF#..AT170,171..MTM¥3,310198805-199211

main12321-15090i3E..ET176..3FC¥2,490198805-199211

main12321-15100i4AFE,5AF#..AT170,171..4FC¥3,310198805-199211

main12321-16130i4AFHE,4AGE..AT171..4FC¥3,310198805-199208

main12321-16140i4AFE..AT175..5F¥1,550198808-199208

main12321-16150i4AFE..AT175..4FC¥1,550198808-199208

main12321-16190i4AFHE..AT171..5F¥3,400199005-199208

main12321-64150i2C..CT17#..5F¥3,310198805-199211

main12321-64160i2C..CT17#..4FC¥2,900198805-199211

main12321-74070i4SF#..ST170..5F¥3,310198805-199211

main12321-74080i4SFE..ST170..4FC¥3,310199005-199211

main12321-74140i4SFI..ST170..4FC¥3,440198805-199005

sub12321-74080¥3,310

sub90179-12069¥240

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-15050i3E..ET176..3FC¥2,490198805-199211

main12325-16060i4AF#,4AGE,5AF#..AT170,171..MTM¥2,500198805-199211

main12325-16070i4AF#,4AGE,5AF#..AT170,171..4FC¥2,490198805-199211

main12325-16080i4AFE..AT175..5F¥2,100198808-199208

main12325-16090i4AFE..AT175..4FC¥2,490198808-199208

main12325-64010i2C..CT17#..5F¥2,500198805-199211

main12325-64020i2C..CT17#..4FC¥3,310198805-199211

main12325-74031i4SF#..ST170..5F¥2,490198805-199211

main12325-74041i4SF#..ST170..4FC¥2,030198805-199211

12329SUPPORT, ENGINE MOUNTING STAY

main12329-15010i4AFE,5AF..AT170,171..DX,S,SG,SV¥1,410198805-199208

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-15150i3E..ET176..MTM¥6,700198805-199211

main12361-15160i3E..ET176..3FC¥6,700198805-199211

main12361-16150i4AFE..AT175..5F¥4,290198808-199208

main12361-16160i4AFE..AT175..4FC¥4,290198808-199208

main12361-64170i2C..CT17#..5F¥6,700198805-199211

main12361-64180i2C..CT17#..4FC¥6,700198805-199211

main12361-74070i4SF#..ST170..5F¥6,700198805-199211

main12361-74080i4SF#..ST170..4FC¥6,700198805-199211

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11080i3E..ET176¥10,900198805-199211

main12362-15150i4AFE,5AF..AT170,171¥10,800198805-198905

sub12362-15160¥10,900

main12362-15160i4AF#,5AF#..AT170,171¥10,900198905-199211

main12362-16070i4AGE..AT171¥12,200198805-198908

main12362-16140i4AFE..AT175¥7,900198808-198907

sub12362-16141¥7,900

main12362-16141i4AFE..AT175¥7,900198907-199208

main12362-16150i4AGE..AT171¥7,200198908-199208

main12362-64080i2C..CT17#..5F¥10,000198805-199211

main12362-64090i2C..CT17#..4FC¥10,000198805-199211

main12362-74100i4SF#..ST170¥10,000198805-199211

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11220i3E..ET176..MTM¥10,000198805-199211

main12371-11230i3E..ET176..3FC¥10,000198805-199211

main12371-15170i4AFE,4AGE,5AF#..AT170,171..MTM¥10,000198805-199211

main12371-15220i4AFE,5AF#..AT170,171..4FC¥10,000198805-199211

main12371-16160i4AFE..AT175..5F¥4,840198808-199208

main12371-16170i4AFE..AT175..4FC¥5,400198808-199208

main12371-64150i2C..CT17#..5F¥10,000198805-199211

main12371-64160i4AFHE,4AGE..AT171..4FC¥10,000198805-199211

main12371-74100i4SFI..ST170..5F¥11,200198805-198911

sub12371-74250¥10,900

main12371-74160i4SFI..ST170..4FC¥8,600198805-199005

main12371-74250i4SFE..ST170;4SFI..ST170..5F¥10,900198911-199211

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15110i3E..ET176¥16,200198805-199211

main12372-15140i4AF#,5AF#..AT170,171..MTM¥11,800198805-199211

sub12372-16060¥11,800

main12372-15150i4AF#,5AF#..AT170,171..4FC¥14,000198805-199211

sub12372-15130¥16,200

main12372-16060i4AGE..AT171..5F¥11,800198805-199208

sub12372-15110¥16,200

main12372-16100i4AGE..AT171..4FC¥17,500198805-199208

sub12372-15130¥16,200

main12372-16130i4AFE..AT175..4FC¥16,200198808-199208

main12372-16150i4AFE..AT175..5F¥16,200198808-199208

main12372-64100i2C..CT17#..5F¥11,800198805-199211

main12372-64110i2C..CT17#..4FC¥10,200198805-199211

main12372-74120i4SF#..ST170..5F¥11,800198805-199211

main12372-74130i4SF#..ST170..4FC¥11,800198805-199211

12511BRACKET, ALTERNATOR, NO.1

main12511-11010i3E..ET176¥2,420198805-198912

sub12511-11020¥4,180

main12511-11020i3E..ET176¥4,180198912-199211

main12511-15040i4AF#,5AF#..AT17#¥6,000198805-199211

main12511-16030i4AGE..AT171¥5,400198805-199208

main12511-64020i2C..CT17#¥4,500198805-199211

main12511-74020i4SF#..ST170¥3,560198805-199201

sub12511-74051¥6,400

main12511-74051i4SFE..ST170¥6,400199201-199211

12511ABUSH, ALTERNATOR BRACKET

main90387-10013i4AF#,5AF#..AT17#¥320198805-199211

9010508040

main90105-08040¥180

9010508100

main90105-08100¥90

9010510051

main90105-10051¥210

9010510143

main90105-10143¥140

9010510193

main90105-10193¥140

9010510202

main90105-10202¥250

9010510227

main90105-10227¥240

9010510328

main90105-10328¥190

9010512077

main90105-12077¥350

9010512115

main90105-12115¥520

9010910115

main90109-10115¥400

9011910487

main90119-10487¥190

9011910499

main90119-10499¥200

9011910519

main90119-10519¥160

9017910041

main90179-10041¥130

9017910098

main90179-10098¥230

9017910108

main90179-10108¥150

9017912016

main90179-12016¥140

9161161018

main91611-61018¥130

32 parts on this diagram · 11 diagrams in section
