WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20210iAT15#,CT150,ST150198405-198508

sub85110-20360

main85110-20360iAT15#,160,CT150,ST150,162198508-198804

main85110-20370iAT15#,160,CT150,ST150,162198508-198804

COLD SPEC

sub85110-32100

85160LINK ASSY, WINDSHIELD WIPER

main85160-20200iAT15#,CT150,ST150198405-198508

sub85160-20230

main85160-20230iAT15#,160,CT150,ST150,162198508-198804

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAT15#,CT150,ST150198405-198508

main90176-08033iAT15#,160,CT150,ST150,162198508-198804

85190ARM ASSY, WINDSHIELD WIPER

main85190-20370iAT15#,CT150,ST150198405-198508

RH

sub85190-20470

main85190-20470iAT15#,160,CT150,ST150,162198508-198804

RH

main85210-20110iAT15#,CT150,ST150198405-198508

LH

sub85210-20150

main85210-20150iAT15#,160,CT150,ST150,162198508-198804

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620iAT15#,160,CT150,ST150,162198606-198804

WINTER BLADE

sub85291-12010

main85220-16100iAT15#,CT150,ST150198405-198508

RH

sub85220-16180

main85220-16110iAT15#,CT150,ST150198405-198508

LH

sub85220-16130

main85220-16320iAT15#,160,CT150,ST150,162198508-198804

LH

sub85220-16321

main85220-16350iAT15#,160,CT150,ST150,162198508-198804

RH

main85220-24040iAT15#,160,CT150,ST150,162198405-198606

WINTER BLADE

sub85291-24010

85221BLADE, WINDSHIELD WIPER

main85221-30120iAT15#,160,CT150,ST150,162198405-198804

sub85221-40040

9009900913

main90099-00913

9011906151

main90119-06151

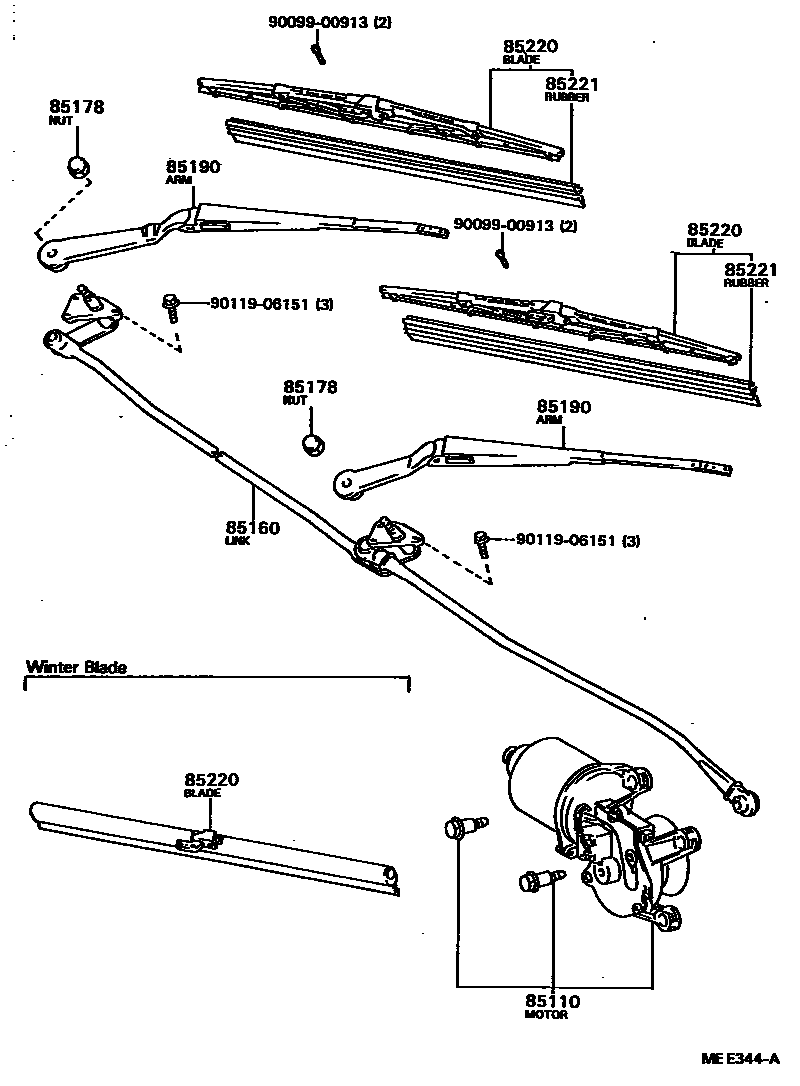

8 parts on this diagram · 1 diagram in section
