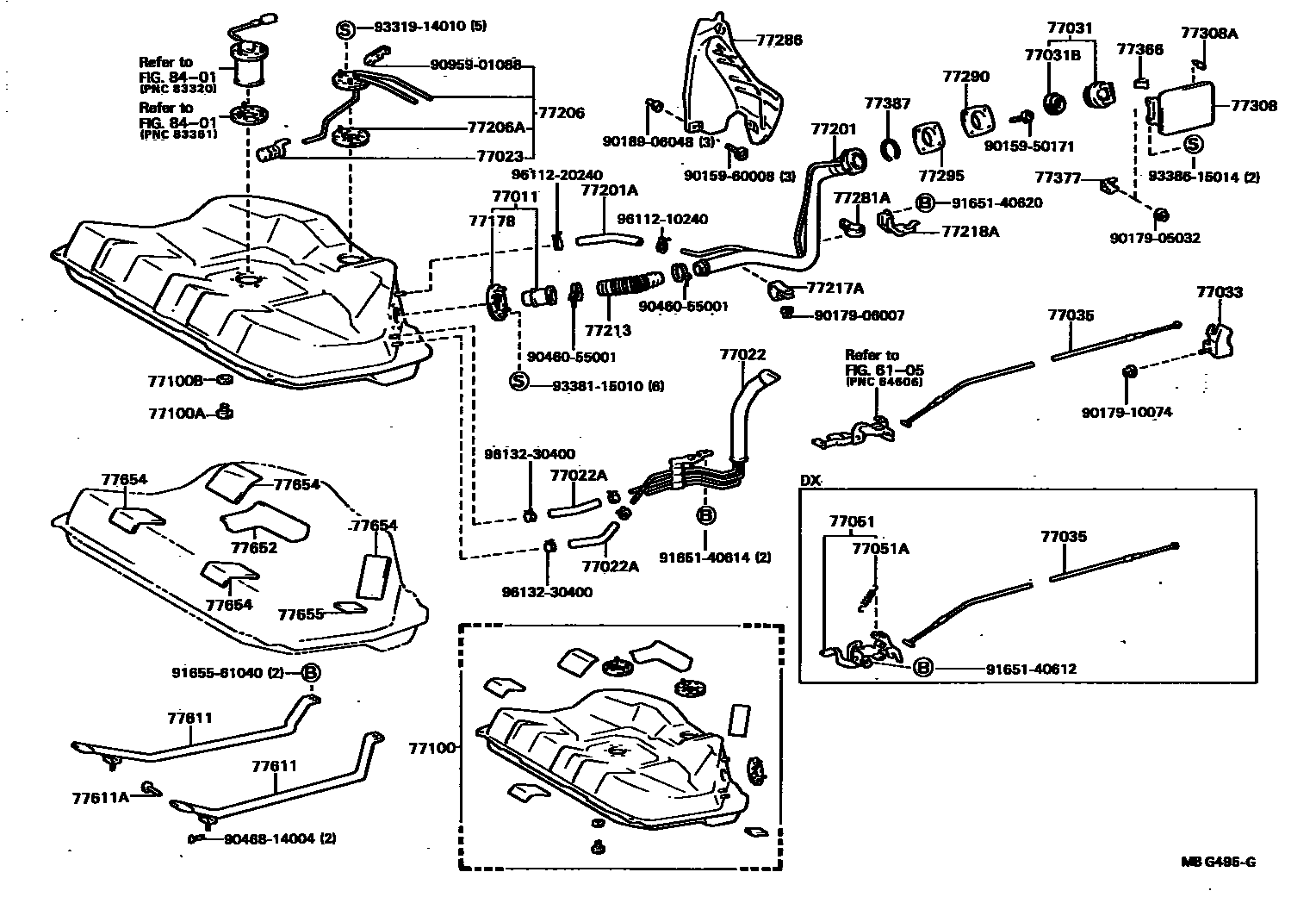

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

6105

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-16030iAT15#,CT150,ST150198405-198804

sub77011-16040

main77011-20010iAT160,ST162198508-198609

main77011-20020iAT160,ST162198609-198804

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77022-32011iAT15#,CT150,ST150198405-198804

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-04030×2iAT15#,CT150,ST150198405-198606

main95333-04022×2iAT15#,CT150,ST150198606-198702

main95333-04030×2iAT15#,CT150,ST150198702-198804

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAT150198405-198804

main77023-22040iCT150198405-198605

main77023-32010iCT150198605-198804

77031CAP ASSY, FUEL TANK

main77310-12100iAT15#,160,ST150,162198405-198804

main77310-35061iCT150198405-198804

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAT15#,160,CT150,ST150,162198405-198804

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iAT15#,160,CT150,ST150,162198405-198804

sub77037-38010

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20050iAT15#,CT150,ST150198405-198406

sub77035-32010

main77035-20100iAT15#,160,CT150,ST150,162198406-198804

77051LEVER SUB-ASSY, FUEL LID OPEN

main77306-14010iAT150..DX198405-198804

77051ASPRING, TENSION (FOR FUEL LID LEVER)

main90506-09004iAT150..DX198405-198804

77100TANK ASSY, FUEL

main77001-20933iAT160,ST162198708-198801

main77001-20935iAT160,ST162198801-198804

main77001-29205iAT160,ST162198508-198606

main77001-29255iAT160,ST162198606-198708

main77001-39115iAT151,CT150,ST150198405-198804

sub77001-39205

sub77017-32022

main77001-39135iAT150198405-198804

77100APLUG(FOR FUEL TANK)

main90341-20003iAT15#,CT150,ST150198405-198512

main90341-20004iAT160,ST162198508-198512

77100BGASKET(FOR FUEL TANK)

main90430-20006iAT15#,CT150,ST150198405-198512

main90430-20007iAT15#,160,CT150,ST150,162198512-198804

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iAT15#,CT150,ST150198405-198804

main77178-20010iAT160,ST162198508-198804

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20180iAT160,ST162198508-198804

main77201-32010iAT15#,CT150,ST150198405-198804

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22011iAT15#,CT150,ST150198405-198804

sub90445-22024

main90445-22912iAT160,ST162198508-198804

sub90445-22024

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-20030iCT150198405-198804

sub77017-20070

main77017-32011iAT150198405-198804

sub77017-20060

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-32010iAT150,CT150198405-198804

77213HOSE, FUEL TANK SUB INLET

main77213-20080iAT160,ST162198508-198804

main77213-32010iAT15#,CT150,ST150198405-198804

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32010iAT15#,CT150,ST150198405-198804

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-32010iAT15#,CT150,ST150198405-198804

77281ACLAMP, FUEL FILLER PIPE

main77281-32010iAT15#,CT150,ST150198405-198804

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-20080iAT15#,CT150,ST150198405-198804

main77277-20090iAT160,ST162198508-198804

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20010iAT15#,160,CT150,ST150,162198405-198608

main77290-20011iAT15#,160,CT150,ST150,162198608-198804

77295SHIELD, FUEL FILLER PIPE

main77293-20010iAT15#,160,CT150,ST150,162198608-198804

main77293-32010iAT15#,160,CT150,ST150,162198405-198608

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-20060iAT15#,160,CT150,ST150,162198405-198804

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003×2iAT15#,160,CT150,ST150,162198405-198804

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAT15#,160,CT150,ST150,162198405-198804

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iAT15#,160,CT150,ST150,162198405-198804

77387RING, FUEL INLET BOX

main77391-16011iAT15#,160,CT150,ST150,162198405-198608

main77391-32010iAT15#,160,CT150,ST150,162198608-198804

77611BAND, FUEL TANK

main77601-20030iAT15#,CT150,ST150198405-198804

RH

sub77601-32030

main77601-20060iAT160,ST162198508-198708

RH

main77601-20080iAT160,ST162198508-198804

W/PROTECTOR,RH

main77602-20090iAT160,ST162198508-198708

LH

main77602-20110iAT160,ST162198508-198804

W/PROTECTOR,LH

main77602-32010iAT15#,CT150,ST150198405-198804

LH

sub77602-32020

77611APIN (FOR FUEL TANK BAND)

main90240-08020×2iAT15#,160,CT150,ST150,162198405-198804

77652CUSHION, FUEL TANK, NO.1

main77651-20050×6iAT160,ST162198508-198804

main77651-32030iAT15#,CT150,ST150198405-198804

77654CUSHION, FUEL TANK, NO.2

main77652-20040×4iAT15#,CT150,ST150198512-198804

main77652-32020×4iAT15#,CT150,ST150198405-198512

77655CUSHION, FUEL TANK, NO.3

main77653-32020×2iAT15#,CT150,ST150198405-198804

8401

9015950171

main90159-50171

9015960008

main90159-60008

9017905032

main90179-05032

9017906007

main90179-06007

9017910074

main90179-10074

9018906048

main90189-06048

9046055001

main90460-55001

9046814004

main90468-14004

9095901088

main90959-01088

9165140612

main91651-40612

9165140614

main91651-40614

9165140620

main91651-40620

9165561040

main91655-61040

9331914010

main93319-14010

9338115010

main93381-15010

9338615014

main93386-15014

9611210240

main96112-10240

9611220240

main96112-20240

9613230400

main96132-30400

56 parts on this diagram · 6 diagrams in section
