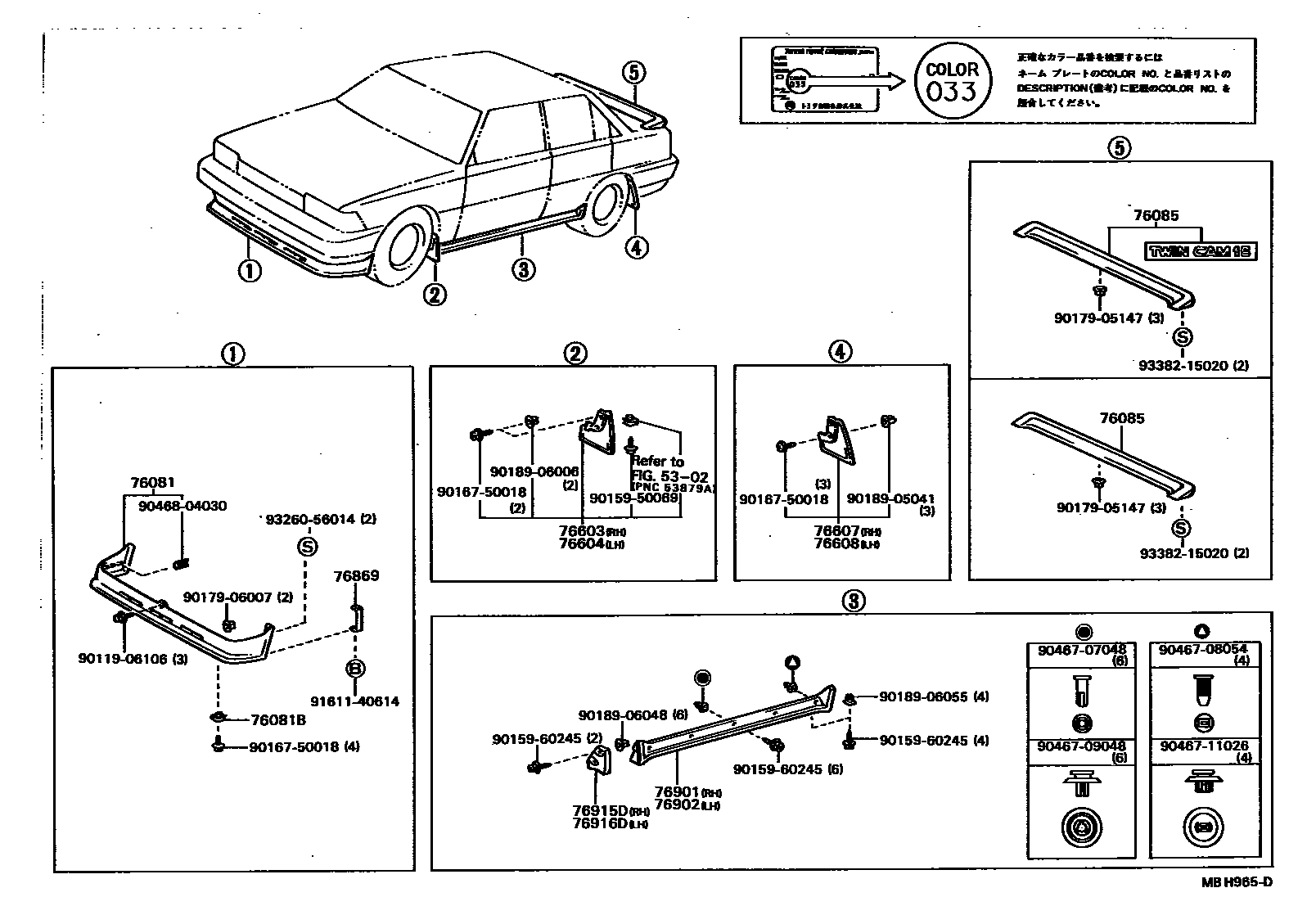

MUDGUARD & SPOILER

5302

76081SPOILER SUB-ASSY, FRONT

main76081-20010-02iAT15#,CT150,ST150198405-198504

RED,RED,3E6

sub76081-20020

main76081-20010-03iAT15#,CT150,ST150198405-198504

WORM GRAY-M,WARM GRAY METALLIC,153 ,2S6

sub76081-20020

main76081-20010-04iAT15#,CT150,ST150198405-198504

BLUE,COBALT BLUE,8B9

sub76081-20020

main76081-20010-08iAT15#,CT150,ST150198405-198504

WHITE,NEW WHITE,041

sub76081-20020

main76081-20020-02iAT15#,160,CT150,ST150,162198504-198804

RED,RED,3E6

main76081-20020-03iAT15#,160,CT150,ST150,162198504-198605

WORM GRAY-M,WARM GRAY METALLIC,153 ,2S6

main76081-20020-04iAT15#,CT150,ST150198504-198508

BLUE,COBALT BLUE,8B9

main76081-20020-05iAT151..ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

main76081-20020-07iAT15#,160,CT150,ST150,162198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

main76081-20020-08iAT15#,CT150,ST150198504-198508

NEW WHITE,WHITE/BLACK,041

main76081-20020-13iAT151,160,ST162..GT,GTR,ST198605-198804

WORM GRAY-M,WARM GRAY,165

main76081-20020-14iAT151..ST198605-198804

BLUE-M,BLUE METALLIC,8D7

main76081-20020-18iAT15#,160,CT150,ST150,162198508-198605

NEW WHITE,WHITE/WHITE,041

main76081-20020-28iAT151,160,ST162..GT,GTR,ST198605-198804

SUPER WHITE,SUPER WHITE,040

76081BRETAINER, FRONT SPOILER

main53867-20010iAT15#,160,CT150,ST150,162198405-198804

W/SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-20020-02iAT151..ST198405-198804

RED,RED,3E6

main76085-20020-03iAT15#,CT150,ST150198405-198605

WORM GRAY-M,WARM GRAY METALLIC,153 ,2S6

main76085-20020-04iAT15#,CT150,ST150198405-198508

BLUE,COBALT BLUE,8B9

main76085-20020-05iAT151..ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

main76085-20020-07iAT15#,CT150,ST150198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

main76085-20020-08iAT15#,CT150,ST150198405-198605

WHITE,NEW WHITE,041

main76085-20020-13iAT151..ST198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

main76085-20020-14iAT151..ST198605-198804

BLUE-M,BLUE METALLIC,8D7

main76085-20020-18iAT151..ST198605-198804

SUPER WHITE,SUPER WHITE,040

main76085-20090-02iAT160,ST162198508-198605

RED,RED,3E6

main76085-20090-03iAT160,ST162198508-198605

WORM GRAY-M,WARM GRAY METALLIC,153

main76085-20090-07iAT160,ST162198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

main76085-20090-08iAT160,ST162198508-198605

WHITE,WHITE/DARK BLUE,041

main76085-20090-13iAT160,ST162198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

main76085-20090-18iAT160,ST162198508-198605

FULL COLOR,WHITE/RED

main76085-20090-28iAT160,ST162198605-198804

SUPER WHITE,SUPER WHITE,040

main76085-20090-38iAT160,ST162198605-198804

FULL COLOR,SUPER WHITE,SUPER WHITE,040

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29025iAT15#,CT150,ST150198405-198804

main76621-29055iAT160,ST162198508-198804

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29025iAT15#,CT150,ST150198405-198804

main76622-29055iAT160,ST162198508-198804

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29035iAT15#,160,CT150,ST150,162198405-198804

main76625-29045-02iAT15#,160,CT150,ST150,162198405-198804

RED,RED,3E6

main76625-29045-03iAT15#,160,CT150,ST150,162198405-198605

WORM GRAY-M,WARM GRAY,153 ,2S6

main76625-29045-04iAT15#,CT150,ST150198405-198508

BLUE,COBALT BLUE,8B9

main76625-29045-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

main76625-29045-07iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198508-198804

D-GREEN-M,DARK GREEN,6H7

main76625-29045-08iAT15#,160,CT150,ST150,162198405-198605

WHITE,NEW WHITE,041

main76625-29045-13iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198605-198804

WORM GRAY-M,WARM GRAY,165

main76625-29045-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE-M,BLUE METALLIC,8D7

main76625-29045-18iAT15#,160,CT150,ST150,162198605-198804

SUPER WHITE,SUPER WHITE,040

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29035iAT15#,160,CT150,ST150,162198405-198804

main76626-29045-02iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

RED,RED,3E6

main76626-29045-03iAT15#,160,CT150,ST150,162198405-198605

WORM GRAY-M,WARM GRAY,153 ,2S6

main76626-29045-04iAT15#,CT150,ST150198405-198508

BLUE,COBALT BLUE,8B9

main76626-29045-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

main76626-29045-07iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198508-198804

D-GREEN-M,DARK GREEN,6H7

main76626-29045-08iAT15#,160,CT150,ST150,162198405-198605

WHITE,NEW WHITE,041

main76626-29045-13iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198605-198804

WORM GRAY-M,WARM GRAY,165

main76626-29045-14iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE-M,BLUE METALLIC,8D7

main76626-29045-18iAT15#,160,CT150,ST150,162198605-198804

SUPER WHITE,SUPER WHITE,040

76869RETAINER, FRONT SPOILER, LOWER NO.3

main76869-20010iAT15#,160,CT150,ST150,162198405-198804

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-20010-02iAT151..ST198405-198804

RED,RED,3E6

sub76901-20900

main76901-20010-03iAT15#,CT150,ST150198405-198605

WORM GRAY-M,WARM GRAY METALLIC,153 ,2S6

sub76901-20900

main76901-20010-04iAT15#,CT150,ST150198405-198508

BLUE,COBALT BLUE,8B9

sub76901-20900

main76901-20010-05iAT151..ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

sub76901-20900

main76901-20010-07iAT15#,CT150,ST150198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub76901-20900

main76901-20010-08iAT15#,CT150,ST150198405-198508

WHITE,WHITE/BLACK,041

sub76901-20900

main76901-20010-13iAT151..ST198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub76901-20900

main76901-20010-14iAT151..ST198605-198804

BLUE-M,BLUE METALLIC,8D7

sub76901-20900

main76901-20010-18iAT15#,CT150,ST150198508-198605

WHITE,WHITE/WHITE,041

sub76901-20900

main76901-20010-28iAT151..ST198605-198804

SUPER WHITE,SUPER WHITE,040

sub76901-20900

main76901-20020-02iAT160,ST162198508-198804

RED,RED,3E6

sub76901-20901

main76901-20020-03iAT160,ST162198508-198605

WORM GRAY-M,WARM GRAY METALLIC,153

sub76901-20901

main76901-20020-07iAT160,ST162198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub76901-20901

main76901-20020-08iAT160,ST162198508-198605

WHITE,WHITE,041

sub76901-20901

main76901-20020-13iAT160,ST162198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub76901-20901

main76901-20020-18iAT160,ST162198605-198804

SUPER WHITE,SUPER WHITE,040

sub76901-20901

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-20010-02iAT151..ST198405-198804

RED,RED,3E6

sub76902-20900

main76902-20010-03iAT15#,CT150,ST150198405-198605

WORM GRAY-M,WARM GRAY METALLIC,153 ,2S6

sub76902-20900

main76902-20010-04iAT15#,CT150,ST150198405-198508

BLUE,COBALT BLUE,8B9

sub76902-20900

main76902-20010-05iAT151..ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

sub76902-20900

main76902-20010-07iAT15#,CT150,ST150198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub76902-20900

main76902-20010-08iAT15#,CT150,ST150198405-198508

WHITE,WHITE/BLACK,041

sub76902-20900

main76902-20010-13iAT151..ST198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub76902-20900

main76902-20010-14iAT151..ST198605-198804

BLUE-M,BLUE METALLIC,8D7

sub76902-20900

main76902-20010-18iAT15#,CT150,ST150198508-198605

WHITE,WHITE/WHITE,041

sub76902-20900

main76902-20010-28iAT151..ST198605-198804

SUPER WHITE,SUPER WHITE,040

sub76902-20900

main76902-20020-02iAT160,ST162198508-198804

RED,RED,3E6

sub76902-20901

main76902-20020-03iAT160,ST162198508-198605

WORM GRAY-M,WARM GRAY METALLIC,153

sub76902-20901

main76902-20020-07iAT160,ST162198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub76902-20901

main76902-20020-08iAT160,ST162198508-198605

WHITE,WHITE,041

sub76902-20901

main76902-20020-13iAT160,ST162198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub76902-20901

main76902-20020-18iAT160,ST162198605-198804

SUPER WHITE,SUPER WHITE,040

sub76902-20901

76915DMUDGUARD, SIDE, FRONT RH

main76915-20010iAT15#,CT150,ST150198405-198804

main76915-20020-02iAT160,ST162198508-198804

RED,RED,3E6

sub76915-20020

main76915-20020-03iAT160,ST162198508-198605

WORM GRAY-M,WARM GRAY METALLIC,153

sub76915-20020

main76915-20020-07iAT160,ST162198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub76915-20020

main76915-20020-08iAT160,ST162198508-198605

WHITE,WHITE,041

sub76915-20020

main76915-20020-13iAT160,ST162198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub76915-20020

main76915-20020-18iAT160,ST162198605-198804

SUPER WHITE,SUPER WHITE,040

sub76915-20020

76916DMUDGUARD, SIDE, FRONT LH

main76916-20010iAT15#,CT150,ST150198405-198804

main76916-20020-02iAT160,ST162198508-198804

RED,RED,3E6

sub76916-20020

main76916-20020-03iAT160,ST162198508-198605

WORM GRAY-M,WARM GRAY METALLIC,153

sub76916-20020

main76916-20020-07iAT160,ST162198508-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub76916-20020

main76916-20020-08iAT160,ST162198508-198605

WHITE,WHITE,041

sub76916-20020

main76916-20020-13iAT160,ST162198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub76916-20020

main76916-20020-18iAT160,ST162198605-198804

SUPER WHITE,SUPER WHITE,040

sub76916-20020

9011906106

main90119-06106

9015950069

main90159-50069

9015960245

main90159-60245

9016750018

main90167-50018

9017905147

main90179-05147

9017906007

main90179-06007

9018905041

main90189-05041

9018906006

main90189-06006

9018906048

main90189-06048

9018906055

main90189-06055

9046707048

main90467-07048

9046708054

main90467-08054

9046709048

main90467-09048

9046711026

main90467-11026

9046804030

main90468-04030

9161140614

main91611-40614

9326056014

main93260-56014

9338215020

main93382-15020

31 parts on this diagram · 1 diagram in section
