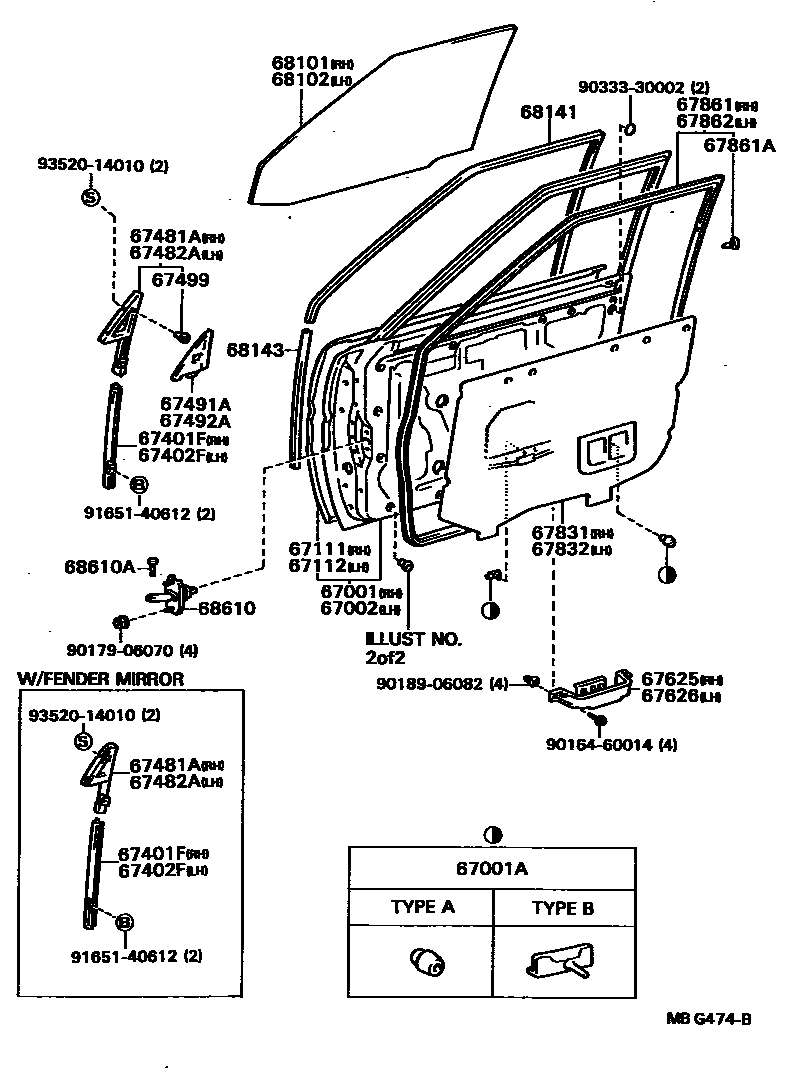

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20590iAT15#,160,CT150,ST150,162198405-198804

main67001-20640iAT15#,160,CT150,ST150,162198405-198804

COLD SPEC

67001ACUSHION, FRONT DOOR PANEL

main90541-07015×2iAT15#,160,CT150,ST150,162198405-198804

TYPE B

main90541-09006×4iAT15#,160,CT150,ST150,162198405-198804

TYPE A

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20560iAT15#,160,CT150,ST150,162198405-198804

main67002-20610iAT15#,160,CT150,ST150,162198405-198804

COLD SPEC

67111PANEL, FRONT DOOR, OUTER RH

main67111-20250iAT15#,160,CT150,ST150,162198405-198804

67112PANEL, FRONT DOOR, OUTER LH

main67112-20270iAT15#,160,CT150,ST150,162198405-198804

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20140iAT15#,160,CT150,ST150,162198405-198804

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20130iAT15#,160,CT150,ST150,162198405-198804

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-20080iAT15#,160,CT150,ST150,162198405-198804

main67481-20090iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

W/DOOR MIRROR

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-20050iAT15#,160,CT150,ST150,162198405-198804

main67482-20060iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

W/DOOR MIRROR

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20090iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20110iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

W/DOOR MIRROR

67625BRACKET, FRONT DOOR TRIM, RH

main67625-20030iCT150,ST150,162..GTR,SE198405-198605

67626BRACKET, FRONT DOOR TRIM, LH

main67626-20030iCT150,ST150,162..GTR,SE198405-198605

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20220iAT15#,160,CT150,ST150,162198405-198605

main67831-20230iAT15#,160,CT150,ST150,162198405-198605

COLD SPEC

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-20080iAT15#,160,CT150,ST150,162198405-198804

main67832-20090iAT15#,160,CT150,ST150,162198405-198804

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20210iAT15#,160,CT150,ST150,162198405-198804

main67861-20220iAT15#,CT150,ST150198405-198508

COLD SPEC

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×42iAT15#,160,CT150,ST150,162198405-198804

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20210iAT15#,160,CT150,ST150,162198405-198804

main67862-20220iAT15#,CT150,ST150198405-198508

COLD SPEC

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20370iAT15#,160,CT150,ST150,162198405-198804

*TT,T=3.5

main68111-20380iAT150,CT150,ST150..SE198605-198804

*TT,BRONZE,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20290iAT15#,160,CT150,ST150,162198405-198804

*TT,T=3.5

main68112-20300iAT150..SG198504-198605

MY ROAD,*TT,BRONZE,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-20160×2iAT15#,160,CT150,ST150,162198405-198804

68143RUN, FRONT DOOR GLASS, LOWER

main68143-20060×2iAT15#,160,CT150,ST150,162198405-198804

sub68143-32030

68610CHECK ASSY, FRONT DOOR

main68610-20030×2iAT15#,160,CT150,ST150,162198405-198804

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iAT15#,CT150,ST150198407-198507

main68617-22010×2iAT15#,CT150,ST150198405-198407

main68617-90A00×2iAT15#,160,CT150,ST150,162198507-198804

9016460014

main90164-60014

9017906070

main90179-06070

9018906082

main90189-06082

9033330002

main90333-30002

9165140612

main91651-40612

9352014010

main93520-14010

31 parts on this diagram · 2 diagrams in section
