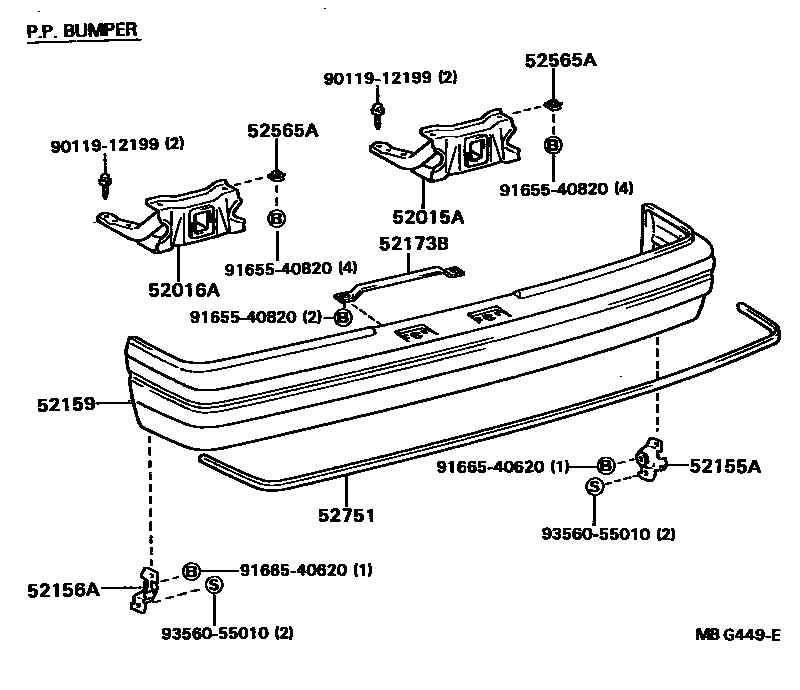

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0006 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-20110iAT15#,CT150..DX,SG,ST198405-198804

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-20110iAT15#,CT150,ST150..DX,SG198405-198804

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-20110iAT15#,CT150,ST150..DX,SG198405-198804

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-20110iAT15#,CT150..DX,SG,ST198405-198804

52159COVER, REAR BUMPER

main52159-20250iAT150..SG198410-198605

*UB

main52159-20250iAT151..ST198405-198605

ST-X,*UB

main52159-20250iAT151..ST198405-198605

SE-CUSTOM,MY ROAD,*UB

main52159-20260iAT150..DX198405-198804

main52159-20270iAT150..SG198405-198605

JEUNE

main52159-20290-02iAT150,160,CT150,ST150,162..GT,GTR,SE198405-198605

*UB,RED,NEW RED,3E6

sub52159-20250

main52159-20290-03iAT150,160,CT150,ST150,162..GT,GTR,SE198405-198605

*UB,WORM GRAY-M,WARM GRAY METALLIC,153 ,2S6

sub52159-20250

main52159-20290-07iAT150,160,CT150,ST150,162..GT,GTR,SE198508-198605

*UB,D-GREEN-M,GREEN BLACK,6H7

sub52159-20250

main52159-20290-08iAT150,160,CT150,ST150,162..GT,GTR,SE198405-198605

*UB,WHITE,NEW WHITE,041

sub52159-20250

main52159-20290-13iAT150,CT150,ST150..SE198405-198605

*UB,GREENISH SILVER-M,ALMONDE SILVER M,154

sub52159-20250

main52159-20320-08iAT160,ST162198508-198605

FULL COLOR,WHITE

main52159-20350-02iAT150,CT150,ST150..SG198612-198804

MY ROAD,RED,RED,3E6

sub52159-20934

main52159-20350-02iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198605-198804

RED,RED,3E6

sub52159-20934

main52159-20350-03iAT150..(4FC,5F)..SG198608-198804

THE 40TH,WORM GRAY-M,WARM GRAY METALLIC,165

sub52159-20934

main52159-20350-03iAT150..DX198712-198804

MY LIFE,WORM GRAY-M,WARM GRAY METALLIC,165

sub52159-20934

main52159-20350-03iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198605-198804

WORM GRAY-M,WARM GRAY METALLIC,165

sub52159-20934

main52159-20350-04iAT15#,CT150,ST150..SE,ST198605-198804

BLUE-M,BLUE METALLIC,8D7

sub52159-20934

main52159-20350-05iAT15#,CT150,ST150..SE,ST198605-198804

BEIGE-M,BEIGE METALLIC,4G8

sub52159-20934

main52159-20350-05iAT150,CT150,ST150..SG198612-198804

MY ROAD,BEIGE-M,BEIGE METALLIC,4G8

sub52159-20934

main52159-20350-05iAT150..(4FC,5F)..SG198608-198804

THE 40TH,BEIGE-M,BEIGE METALLIC,4G8

sub52159-20934

main52159-20350-06iAT150,CT150,ST150..SE198605-198804

BROWN-M,BROWN METALLIC,28C

sub52159-20934

main52159-20350-07iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198605-198804

D-GREEN-M,DARK GREEN METALLIC,6H7

sub52159-20934

main52159-20350-08iAT150..DX198712-198804

MY LIFE,SUPER WHITE,SUPER WHITE,040

sub52159-20934

main52159-20350-08iAT150..(4FC,5F)..SG198608-198804

THE 40TH,SUPER WHITE,SUPER WHITE,040

sub52159-20934

main52159-20350-08iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198605-198804

SUPER WHITE,SUPER WHITE,040

sub52159-20934

main52159-20350-08iAT150,CT150,ST150..SG198612-198804

MY ROAD,SUPER WHITE,SUPER WHITE,040

sub52159-20934

main52159-20360iAT150..DX198709-198712

MY LIFE

sub52159-02924

main52159-20360iAT15#,CT150,ST150..SG198605-198804

sub52159-02924

main52159-20370iAT150..SG198605-198804

JEUNE

sub52159-02923

main52159-20380-08iAT160,ST162198605-198804

FULL COLOR,SUPER WHITE,SUPER WHITE,040

52173BREINFORCEMENT, REAR BUMPER

main52171-20100iAT15#,CT150..DX,SG,ST198405-198804

52565ARETAINER, REAR BUMPER, LOWER

main52565-16020iAT15#,CT150..DX,SG,ST198405-198804

main52565-20040iAT150..(4FC,5F)..SG198608-198804

THE 40TH,*UB

main52565-20040iAT150,CT150,ST150..SG198612-198804

MY ROAD,*UB

main52565-20040iAT150..DX198712-198804

MY LIFE,*UB

main52565-20040iAT151..ST198405-198804

*UB

main52565-20040iAT151..ST198405-198605

ST-X,*UB

52751MOULDING, REAR BUMPER

main52751-20080iAT150..SG198405-198605

JEUNE

main52751-20100iAT150,160,CT150,ST150,162..GT,GTR,SE198405-198605

*UB

main52751-20100iAT150,160,CT150,ST150,162..GT,GTR,SE198405-198605

ST-X,*UB

main52751-20110iAT15#,CT150..DX,SG,ST198405-198804

main52751-20140iAT160,ST162198508-198605

FULL COLOR

main52751-20150iAT150,CT150,ST150..SG198612-198804

MY ROAD,*UB

main52751-20150iAT150..DX198712-198804

MY LIFE,*UB

main52751-20150iAT15#,160,CT150,ST150,162..GT,GTR,SE,ST198605-198804

main52751-20150iAT150..(4FC,5F)..SG198608-198804

THE 40TH,*UB

main52751-20160iAT160,ST162198605-198804

FULL COLOR

main52751-20170iAT150..DX198709-198712

MY LIFE

main52751-20170iAT15#,CT150,ST150..SG198605-198804

9011912199

main90119-12199

9165540820

main91655-40820

9166540620

main91665-40620

9356055010

main93560-55010

12 parts on this diagram · 4 diagrams in section
