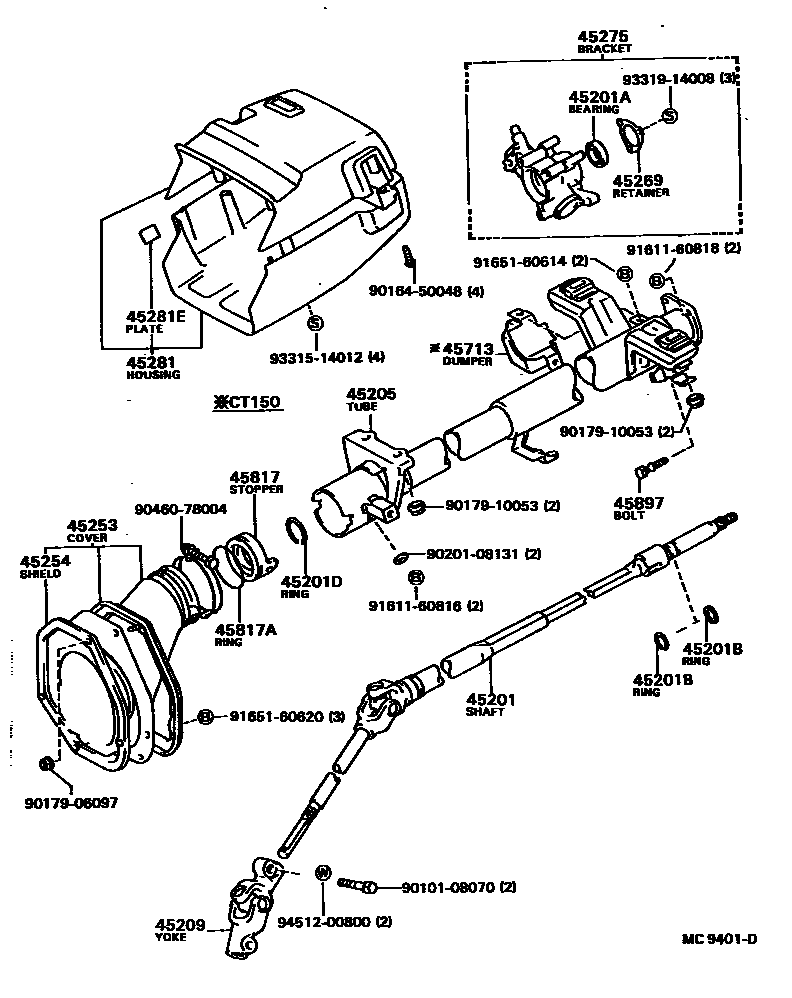

STEERING COLUMN & SHAFT

0001 1 0002 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-20110iAT150,CT150,ST150..SE,SG198405-198508

W/POWER STEERING

main45210-20150iAT15#..DX,SG,ST198405-198804

main45210-20230iAT160,ST162198508-198804

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iAT15#,160,CT150,ST150,162198405-198712

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAT150..DX198709-198804

main90520-17196×2iAT15#,160,CT150,ST150,162198405-198804

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAT15#,160,CT150,ST150,162198405-198804

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-20110iAT150..4F..DX198405-198804

main45870-20120iAT150..3FC..DX198405-198804

main45870-20130iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198804

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iAT15#..DX,SG,ST198405-198804

sub45209-10020

main45209-32020iAT150,CT150,ST150..SE,SG198405-198508

W/POWER STEERING

sub45209-16010

45253COVER, STEERING COLUMN HOLE

main45025-20130iAT15#,160,CT150,ST150,162198405-198804

45254SHIELD, STEERING COLUMN HOLE

main45254-20080iAT15#,160,CT150,ST150,162198405-198804

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iCT150..SE198712-198804

45275BRACKET, STEERING COLUMN, UPPER

main45280-20240iAT150,CT150,ST150..SE,SG198405-198508

W/POWER STEERING

main45280-20241iAT15#..SG,ST198703-198804

W/POWER STEERING

main45280-20260iAT15#..SG,ST198605-198703

W/ELECTROMAGNETIC LOCK

main45280-20261iAT15#..SG,ST198703-198804

W/ELECTROMAGNETIC LOCK

45281HOUSING, STEERING COLUMN

main45286-20925-03iAT150..DX198405-198605

GRAY,GRAY,TRIM1#

main45286-20925-04iAT150..DX198405-198603

BLUE,BLUE,TRIM8#

main45286-20925-06iAT150..DX198405-198605

BROWN,BROWN,TRIM4#

main45286-20925-13iAT150..DX198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main45286-20925-24iAT150..DX198603-198605

BLUE,BLUE,TRIM8#

main45286-20926-03iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198405-198605

GRAY,GRAY,TRIM1#

main45286-20926-04iAT15#,CT150,ST150..SE,SG,ST198405-198603

BLUE,BLUE,TRIM8#

main45286-20926-05iAT15#,CT150,ST150..SE,SG,ST198605-198804

BEIGE,DARK BEIGE,TRIM4#

main45286-20926-06iAT15#,CT150..SG198405-198605

BROWN,BROWN,TRIM4#

main45286-20926-13iAT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST198605-198804

GRAY,MEDIUM GRAY,TRIM1#

main45286-20926-24iAT15#,CT150,ST150..SE,SG,ST198605-198804

BLUE,DARK BLUE,TRIM8#

main45286-20926-34iAT15#,CT150,ST150..SE,SG,ST198603-198605

BLUE,BLUE,TRIM8#

45281EPLATE, SAFETY CAUTION

main45283-22010iAT15#,160,CT150,ST150,162198405-198804

45713DUMPER, STEERING SHAKE

main45713-20010iCT150198405-198605

45817STOPPER, STEERING SHAFT THRUST

main45808-20020iAT15#,160,CT150,ST150,162198405-198804

sub45808-20030

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iAT150..DX198709-198804

MY LIFE

main96711-24056iAT15#,160,CT150,ST150,162198405-198512

45897BOLT, STEERING LOCK SET

main45897-12020iAT15#,160,CT150,ST150,162198405-198712

9010108070

main90101-08070

9016450048

main90164-50048

9017906097

main90179-06097

9017910053

main90179-10053

9020108131

main90201-08131

9046078004

main90460-78004

9161160816

main91611-60816

9161160818

main91611-60818

9165160614

main91651-60614

9165160620

main91651-60620

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

29 parts on this diagram · 2 diagrams in section
