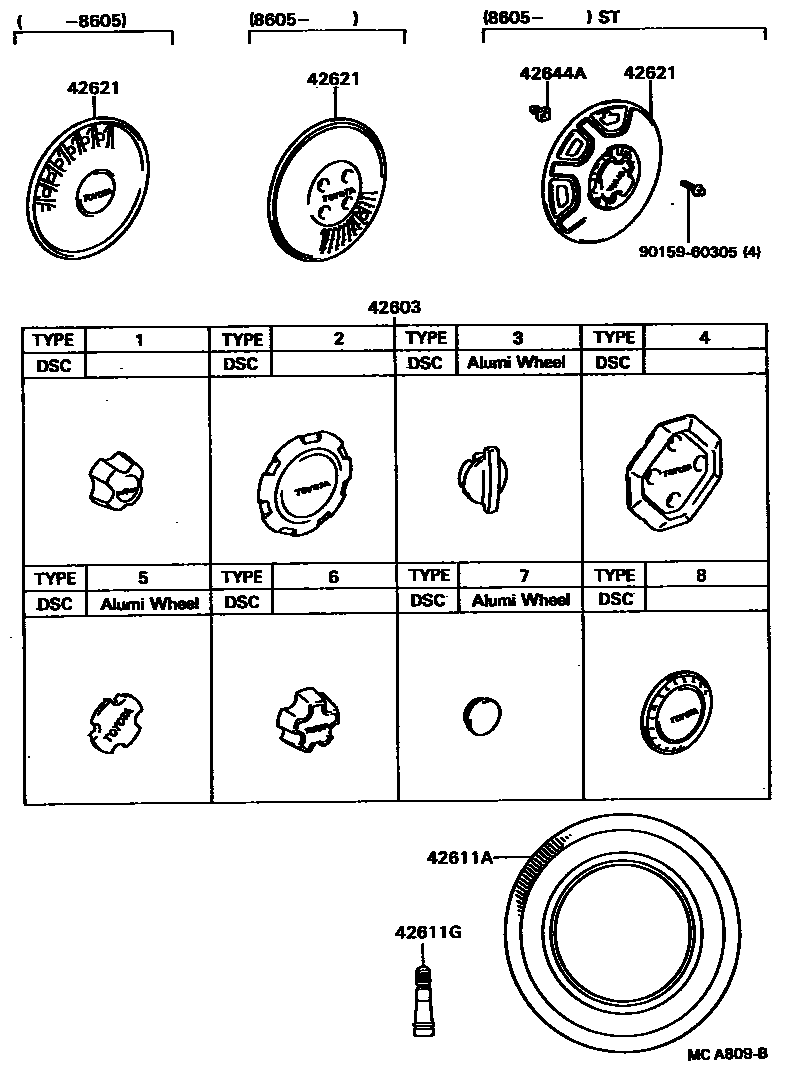

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100iAT150..DX198405-198612

TYPE 1

sub42638-16200

main42603-20090iST150198405-198512

TYPE 2,SE-CUSTOM OR MY ROAD

main42603-20090iAT15#,CT150..SG198405-198605

TYPE 2

main42603-20090iST150198512-198605

TYPE 2,SE-CUSTOM

main42603-20100iAT15#,CT150,ST150..SE,ST198405-198804

TYPE 3,ALUMI WHEEL

main42603-20110iAT151..ST198405-198804

TYPE 4

main42603-20140iAT151..ST198605-198804

TYPE 5,ALUMI WHEEL

main42603-20150iAT160198508-198804

main42603-20190iAT15#,CT150,ST150..SG198605-198804

TYPE 8

main42603-20200iAT150..(4FC,5F)..SG198605-198804

TYPE 8,SG EXTRA

main42638-16200iAT150..DX198612-198804

TYPE 1

sub42638-12290

main42638-32040iAT160,ST162198508-198804

TYPE 7,ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-12410iAT150..DX198709-198804

165SR13,MY LIFE

main42652-12410iAT15#,CT150,ST150198405-198804

165SR13

main42652-12430iAT150,CT150,ST150198405-198804

175/70SR13

main42652-12630iAT160,ST162198508-198804

195/60R14

main42652-16220iAT15#,CT150,ST150198405-198804

T115/70D14,SPARE

main42652-16230iAT151198405-198804

175/70SR13

main42652-32030iAT160,ST162198508-198804

T125/70D14,SPARE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAT15#,160,CT150,ST150,162198405-198804

42621CAP, WHEEL

main42621-20210iAT150,CT150,ST150..SE198405-198605

main42621-20220iAT150..(3FC,4F,4FC)..SG198405-198605

JEUNE

sub42621-20210

main42621-20260iAT151..ST198605-198804

main42621-20280iST150198512-198605

MY ROAD

sub42621-20210

main42621-20290iAT150..DX198709-198804

main42621-20290iAT150..(3FC,4F,4FC)..SG198605-198612

JEUNE

main42621-20290iAT150,CT150,ST150..SE198605-198804

main42621-20290iAT150,CT150,ST150..SG198612-198804

JEUNE OR MY ROAD

42644AHOLDER, WHEEL HUB

main42644-20060iAT151..ST198605-198804

9015960305

main90159-60305

6 parts on this diagram · 2 diagrams in section
