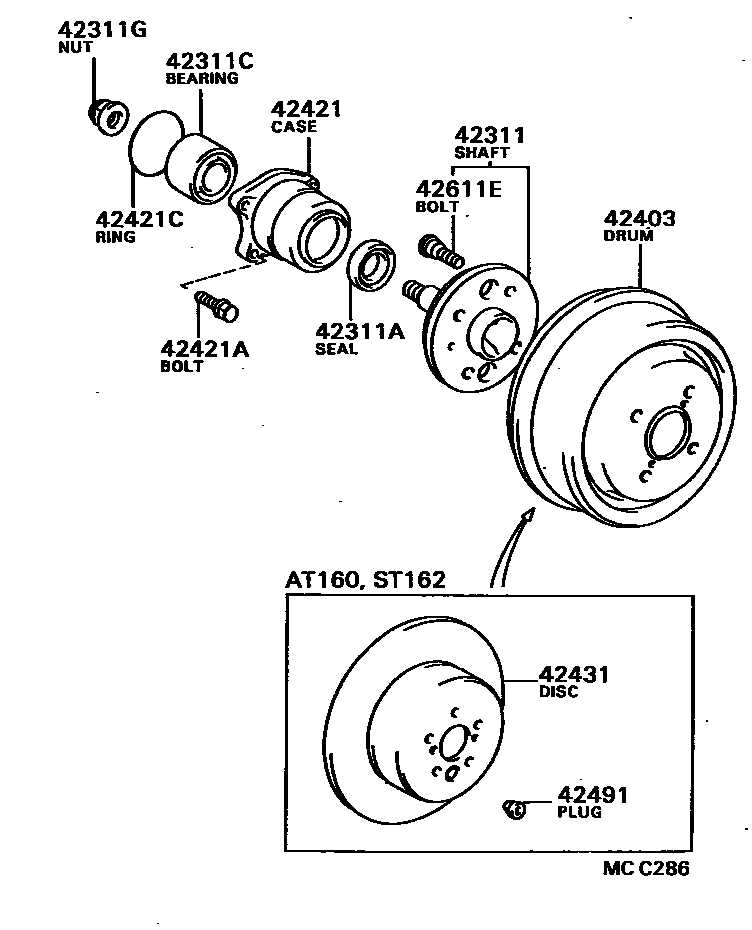

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-20040×2iAT15#,CT150,ST150198405-198710

sub42301-20050

main42301-20060×2iAT160,ST162198508-198708

main42301-20080×2iAT15#,CT150,ST150198708-198804

sub42410-20130

main42301-32031×2iAT160,ST162198708-198804

sub42410-20140

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42006×2iAT15#,160,CT150,ST150,162198405-198511

main90311-42018×2iAT15#,160,CT150,ST150,162198511-198804

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044×2iAT15#,160,CT150,ST150,162198405-198804

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003×2iAT15#,160,CT150,ST150,162198405-198804

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20070×2iAT15#,CT150,ST150198405-198804

42421CASE, REAR AXLE BEARING

main42421-20020iAT15#,160,CT150,ST150,162198405-198804

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10006×8iAT15#,CT150,ST150198405-198408

main90105-10120×8iAT15#,CT150,ST150198408-198804

main90105-10124×8iAT160,ST162198508-198804

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003×2iAT15#,160,CT150,ST150,162198405-198804

sub90301-63006

42431DISC, REAR

main42431-20090×2iAT160,ST162198508-198804

sub42431-20160

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iAT160,ST162198508-198804

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iAT15#,160,CT150,ST150,162198405-198804

11 parts on this diagram · 1 diagram in section
