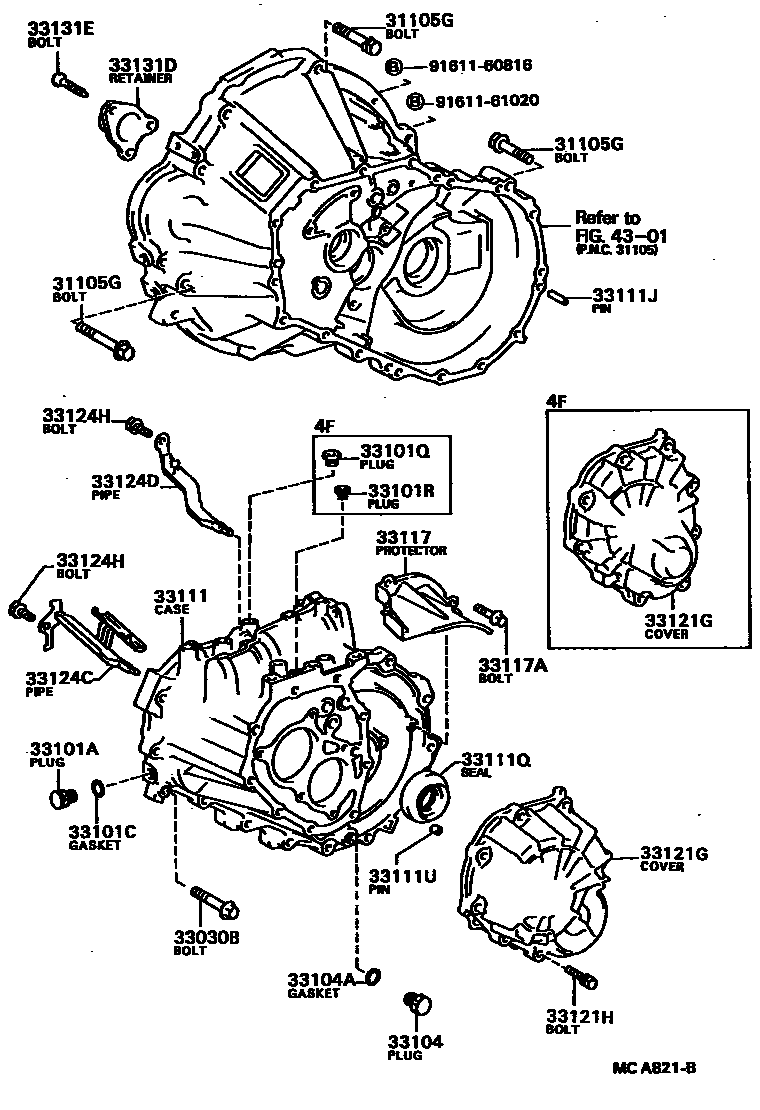

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT150,ST150,162..5F198408-198804

sub91641-H0820

main90105-10077iAT15#,160,CT150,ST150,162..MTM198405-198804

main90119-12042iAT15#,160..MTM198405-198804

main90119-12168×3iAT15#,160,CT150,ST150,162..MTM198405-198804

main91651-41022iST150,162..5F198607-198804

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iCT150,ST150,162..5F198405-198804

sub90105-08430

main90105-08064×16iAT15#,160..MTM198405-198804

sub90105-08353

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCT150,ST150,162..5F198405-198804

main90341-18006iAT15#,160..MTM198405-198804

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18007iAT15#,CT150,ST150..MTM198405-198408

main90430-18008iAT15#,160,CT150,ST150,162..MTM198408-198804

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iAT150..4F198405-198804

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90341-10065iAT150..4F198405-198804

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT15#,160..MTM198405-198804

main90341-18057iCT150,ST150..5F198405-198502

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iAT15#,CT150,ST150..MTM198405-198408

main90430-18008iAT15#,160,CT150,ST150,162..MTM198408-198804

33111CASE, MANUAL TRANSMISSION

main33111-12170iAT15#,160..MTM198405-198608

main33111-16040iAT15#,160..MTM198608-198804

sub33111-16070

sub90109-12073

main33111-32012iCT150,ST150..5F198405-198507

sub90341-16001

main33111-32013iCT150,ST150,162..5F198507-198604

sub33151-32011

main33111-32014iCT150,ST150,162..5F198604-198804

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iAT15#,160,CT150,ST150,162..MTM198405-198804

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT15#,160..MTM198405-198804

sub90311-34017

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAT15#,160..MTM198405-198804

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAT15#..MTM198512-198804

sub33117-16010

main33117-17010iAT160..5F198512-198804

sub33117-16010

main33117-32010iCT150,ST150..5F198405-198408

main33117-32011iCT150,ST150,162..5F198408-198804

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAT15#,160,CT150,ST150,162..MTM198405-198804

sub91641-H0820

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12010iAT150..4F198405-198804

main33102-12020iAT15#,160..5F198405-198804

sub33102-12021

main33102-32011iCT150,ST150,162..5F198405-198804

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089×8iCT150,ST150,162..5F198405-198804

sub90105-08273

main91611-60835×9iAT15#,160..MTM198405-198804

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT15#,160..MTM198405-198804

main33124-32010iCT150,ST150,162..5F198405-198510

main33124-32011iCT150,ST150,162..5F198510-198804

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT15#,160..MTM198405-198804

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60812×2iAT15#..MTM198405-198411

sub91611-B0812

main91611-60820×2iAT15#,160..MTM198411-198804

sub91611-G0820

main91651-60618iCT150,ST150,162..5F198405-198804

33131DRETAINER, BEARING, FRONT

main33131-12070iAT15#,160..MTM198405-198708

main33131-12071iAT15#,160..MTM198708-198804

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAT15#,160..MTM198405-198804

4301

9161160816

main91611-60816

9161161020

main91611-61020

24 parts on this diagram · 2 diagrams in section
