CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iCT150..5F198609-198704

sub04311-14031

main04311-14031iCT150..5F198704-198802

sub04311-14032

main04311-14032iCT150..5F198802-198804

sub04311-28010

main04311-30080iCT150..5F198405-198609

sub04311-14020

main04311-32010iAT15#,ST150..MTM198405-198408

main04311-32020iAT15#,ST150..MTM198408-198505

sub04311-32021

main04311-32021iAT15#,160,ST150,162..MTM198505-198704

sub04311-32022

main04311-32022iAT15#,160,ST150,162..MTM198704-198802

sub04311-32023

main04311-32023iAT15#,160,ST150,162..MTM198802-198804

sub04311-32030

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iAT15#,160,CT150,ST150,162..MTM198405-198804

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20190iAT15#,ST150..MTM198405-198408

sub31410-20390

main31410-20191iAT15#,ST150..MTM198408-198505

sub31410-20192

main31410-20192iAT15#,160,ST150,162..MTM198505-198704

sub31410-20193

main31410-20193iAT15#,160,ST150,162..MTM198704-198710

sub31410-20194

main31410-20194iAT15#,160,ST150,162..MTM198710-198804

sub31410-20411

main31410-20210iCT150..5F198405-198704

sub31410-20211

main31410-20211iCT150..5F198704-198710

sub31410-20212

main31410-20212iCT150..5F198710-198803

sub31410-20430

main31410-20431iCT150..5F198803-198804

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT15#,160,CT150,ST150,162..MTM198405-198804

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAT15#,160,CT150,ST150,162..MTM198405-198804

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAT15#,160,CT150,ST150,162..MTM198405-198804

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAT15#,160,CT150,ST150,162..MTM198405-198804

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAT15#,160,CT150,ST150,162..MTM198405-198804

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12070iCT150..5F198803-198804

main31451-22070iCT150..5F198609-198803

main31451-30060iCT150..5F198405-198609

main31451-32010iAT15#,160,ST150,162..MTM198405-198804

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16010iCT150..5F198803-198804

sub31404-20010

main31404-28011iCT150..5F198412-198803

sub31404-28012

main31404-30041iCT150..5F198405-198412

main31453-22010iAT15#,160,ST150,162..MTM198405-198610

sub31453-35010

main31453-35010iAT15#,160,ST150,162..MTM198610-198804

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAT15#,160,ST150,162..MTM198405-198804

main31454-24010iCT150..5F198405-198804

9017908038

main90179-08038

9412040800

main94120-40800

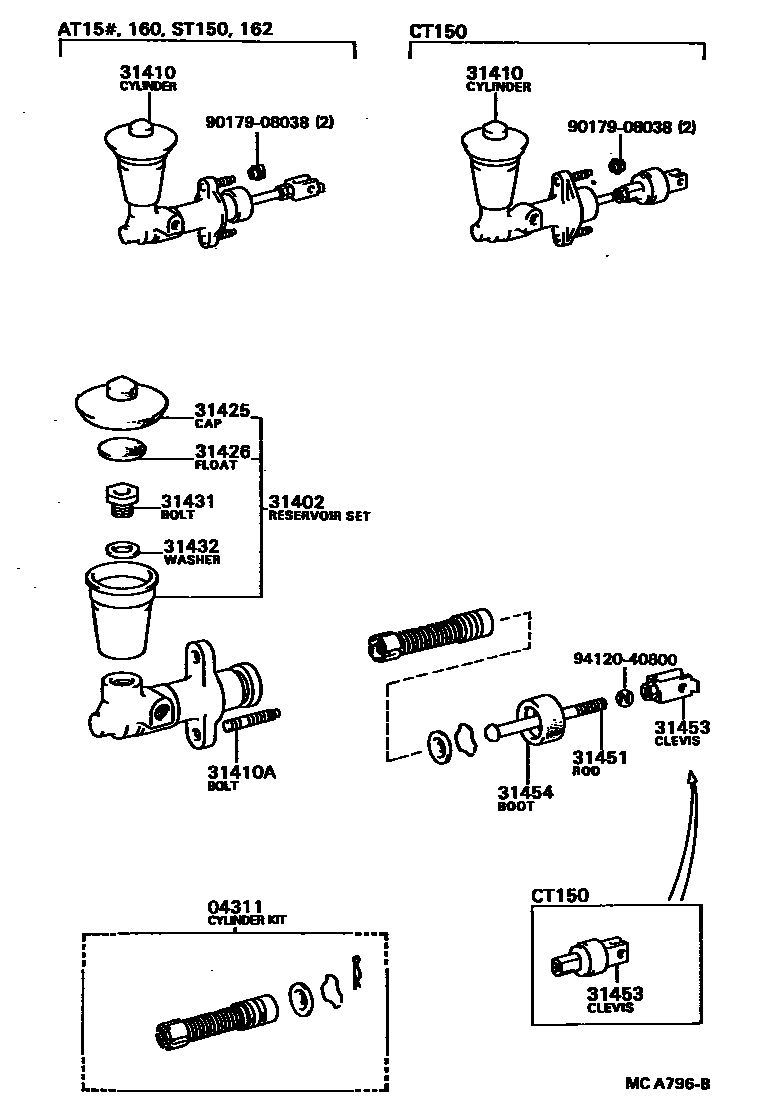

13 parts on this diagram · 1 diagram in section
