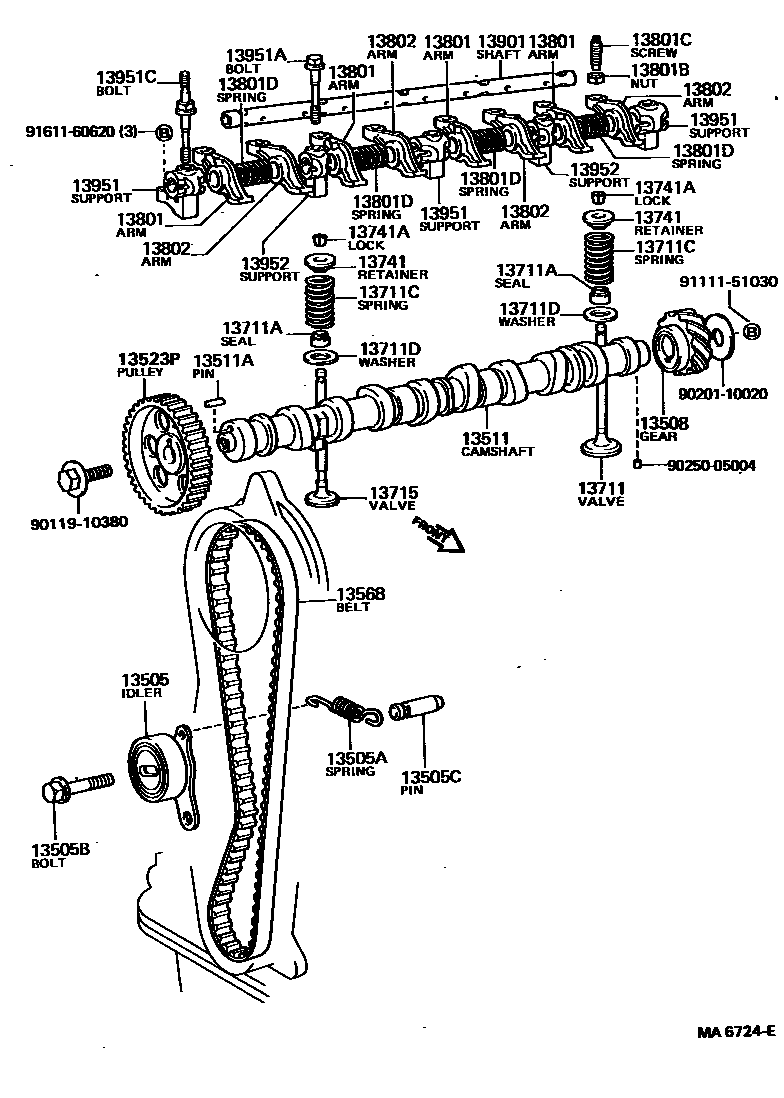

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-15040i3ALU,4AELU..AT15#198405-198508

main13505-15041i3ALU,4AELU..AT15#198508-198804

main13505-16020i4AGELU..AT160198508-198804

sub13505-16021

main13505-63010i1SILU..ST150198405-198711

main13505-63011i1SILU..ST150198711-198804

sub13505-63021

main13505-64020i2CL..CT150198405-198612

main13505-64021i2CL..CT150198612-198804

sub13505-64011

main13505-88360i3SGELU..ST162198508-198804

sub13505-74030

13505ASPRING, TENSION(FOR IDLER)

main90506-14016i3ALU,4AELU..AT15#198405-198603

main90506-18045i3SGELU..ST162198508-198804

main90506-20039i1SILU..ST150198405-198804

main90507-18006i2CL..CT150198405-198804

main90507-18017i3ALU,4AELU..AT15#198603-198804

main90507-20010i4AGELU..AT160198508-198804

13505BBOLT, FLANGE (FOR IDLER)

main91511-61040i3ALU,4AELU..AT15#198405-198804

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i2CL..CT150198405-198804

main90249-06006i3ALU,4A#..AT15#,160198405-198804

13508GEAR SUB-ASSY, DISTRIBUTOR DRIVE

main13508-15010i3ALU,4AELU..AT15#198405-198804

13511CAMSHAFT

main13501-16010i4AGELU..AT160198508-198708

main13501-16030i4AGELU..AT160198708-198804

main13501-63010i1SILU..ST150198405-198804

sub13501-63011

main13501-79015i3SGELU..ST162198508-198804

main13511-14010i3ALU,4AELU..AT15#198405-198804

main13511-64010i2CL..CT150198405-198501

main13511-64011i2CL..CT150198501-198508

main13511-64030i2CL..CT150198508-198804

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05021×2i3SGELU..ST162198508-198804

main90250-05121i3ALU,4AELU..AT15#198405-198501

13523PPULLEY, CAMSHAFT TIMING

main13051-64010i2CL..CT150198405-198501

main13051-64011i2CL..CT150198501-198804

sub13051-64012

main13523-14010i3ALU,4AELU..AT15#..DX,SE,SG198405-198804

main13523-15010i4AELU..AT151..ST198405-198804

main13523-16010×2i4AGELU..AT160198508-198708

main13523-16030×2i4AGELU..AT160198708-198804

main13523-63010i1SILU..ST150198405-198712

main13523-63011i1SILU..ST150198712-198804

main13523-88360×2i3SGELU..ST162198508-198804

sub13523-88301

13568BELT, TIMING

main13568-15010i3ALU,4AELU..AT15#198405-198804

sub13568-19125

main13568-16010i4AGELU..AT160198508-198804

main13568-16020i4AGELU..AT160198804-198804

sub13568-19145

main13568-63020i1SILU..ST150198405-198804

sub13568-63022

main13568-64010i2CL..CT150198405-198603

main13568-64011i2CL..CT150198603-198804

sub13568-69065

main13568-88361i3SGELU..ST162198508-198708

main13568-88381i3SGELU..ST162198708-198804

sub13568-88382

sub90506-18066

13711VALVE, INTAKE

main13711-15010×4i3ALU,4AELU..AT15#..DX,SE,SG198405-198804

main13711-15030×4i4AELU..AT151..ST198405-198804

main13711-16010×8i4AGELU..AT160198508-198804

sub13711-16020

main13711-63010×4i1SILU..ST150198405-198804

main13711-64010×4i2CL..CT150198405-198504

main13711-64011×4i2CL..CT150198504-198508

main13711-64020×4i2CL..CT150198508-198804

main13711-88360×8i3SGELU..ST162198508-198804

*53

main13711-88361×8i3SGELU..ST162198508-198804

*54

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02038×8i3ALU,4AELU..AT15#198405-198804

main90913-02053×8i2CL..CT150198405-198804

sub90913-02110

main90913-02057×8i1SILU..ST150198405-198709

sub90913-02094

main90913-02062×8i3SGELU..ST162198508-198804

main90913-02066×16i4AGELU..AT160198508-198710

main90913-02071×16i4AGELU..AT160198710-198803

main90913-02075×8i1SILU..ST150198709-198804

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-42003×8i3ALU,4AELU..AT15#198705-198804

main90501-42004×8i3ALU,4AELU..AT15#198405-198705

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16010×8i2CL..CT150198405-198804

main90201-21002×8i3ALU,4AELU..AT15#198405-198804

13715VALVE, EXHAUST

main13715-15010×4i3ALU,4AELU..AT15#198405-198804

main13715-16010×8i4AGELU..AT160198508-198804

sub13715-16020

main13715-63011×4i1SILU..ST150198405-198804

main13715-64010×4i2CL..CT150198405-198504

main13715-64012×4i2CL..CT150198504-198508

main13715-64030×4i2CL..CT150198508-198804

main13715-88360×8i3SGELU..ST162198508-198804

13741RETAINER, VALVE SPRING

main13741-15010×8i3ALU,4AELU..AT15#198405-198804

main13741-16010×16i4AGELU..AT160198508-198804

main13741-43010×8i2CL..CT150198405-198804

main13741-63010×8i1SILU..ST150198405-198804

main13741-88300×16i3SGELU..ST162198508-198804

13741ALOCK, VALVE SPRING RETAINER

main90913-03005×16i1SILU..ST150198405-198804

main90913-03014×16i2CL..CT150198405-198804

main90913-03017×16i3ALU,4AELU..AT15#198405-198804

main90913-03021×32i4AGELU..AT160198508-198804

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-15010×4i3ALU,4AELU..AT15#198405-198804

main13811-63010×8i1SILU..ST150198405-198804

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-07001×8i3ALU,4AELU..AT15#198405-198804

13801CSCREW, VALVE ADJUSTING

main90913-05018×8i3ALU,4AELU..AT15#198405-198804

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-14025×4i3ALU,4AELU..AT15#198405-198804

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-15010×4i3ALU,4AELU..AT15#198405-198804

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-15010i3ALU,4AELU..AT15#198405-198804

13951SUPPORT, VALVE ROCKER, NO.1

main13951-15010×3i3ALU,4AELU..AT15#198405-198804

13951ABOLT(FOR ROCKER SUPPORT SET)

main90109-08029×2i3ALU,4AELU..AT15#198405-198804

main91621-60840×10i2CL..CT150198501-198804

main91651-60845×10i2CL..CT150198405-198501

sub91651-B0845

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90109-08028×3i3ALU,4AELU..AT15#198405-198804

13952SUPPORT, VALVE ROCKER, NO.2

main13952-15010×2i3ALU,4AELU..AT15#198405-198804

9011910380

main90119-10380

9020110020

main90201-10020

9025005004

main90250-05004

9111151030

main91111-51030

9161160620

main91611-60620

31 parts on this diagram · 5 diagrams in section
