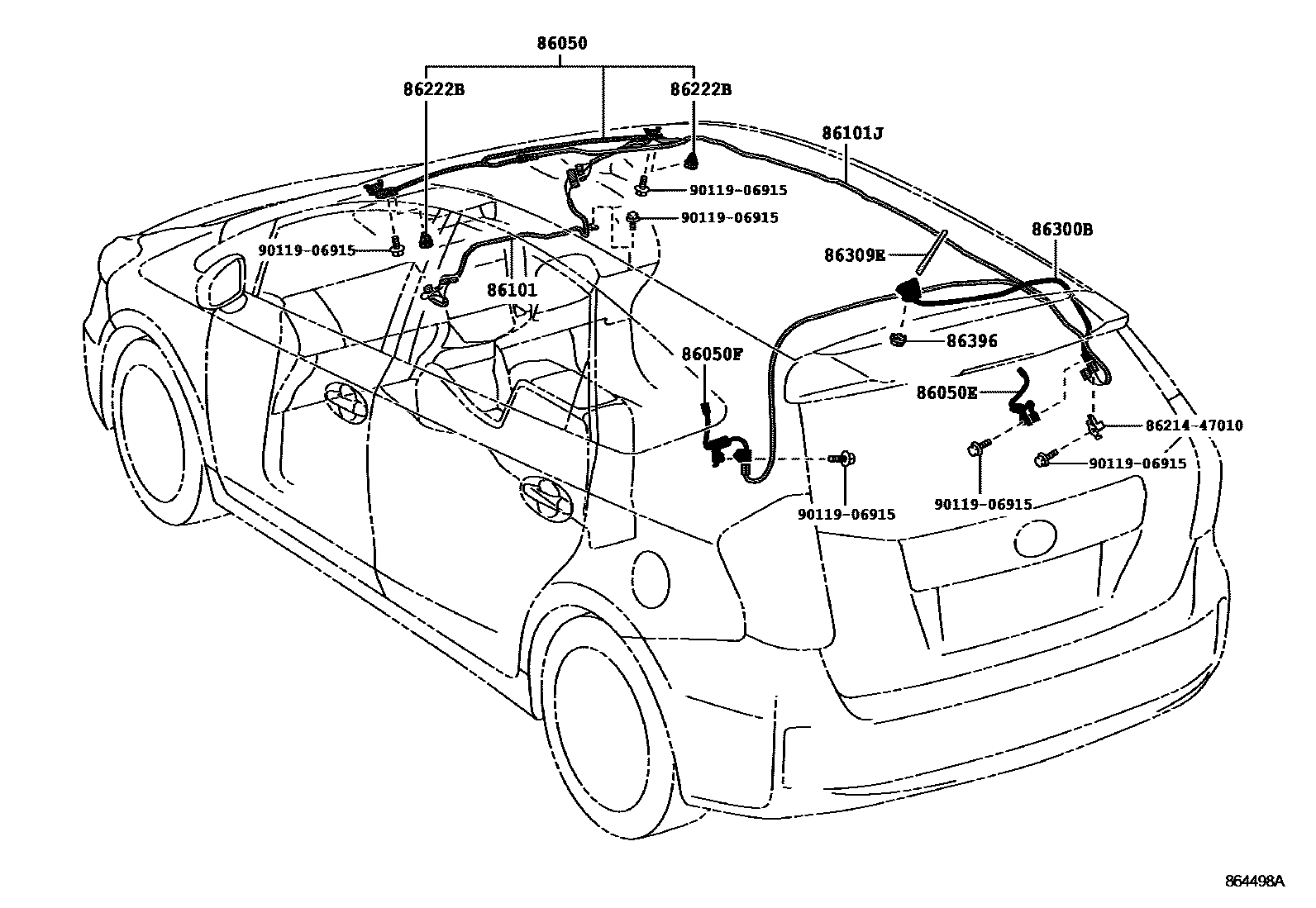

ANTENNA

0001 1 0002 1

86050ANTENNA ASSY, TELEVISION

main86050-47080

main86050-47090

main86050-47100

86050EANTENNA ASSY, TELEVISION

86050FANTENNA ASSY, TELEVISION

86101CORD SUB-ASSY, ANTENNA

main86101-47620iZVW4#..CBU201104-202103

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47500iZVW4#..CBU201104-202103

86222BCLIP, RADIO RECEIVER BRACKET

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-47080iZVW4#..CBU201104-201411

main86300-47200iZVW4#..CBU201411-202103

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42070iZVW4#..CBU201104-201411

main86309-47060iZVW4#..CBU201411-202103

86396NUT, ANTENNA

main86396-47010iZVW4#..CBU201104-202103

8621447010BRACKET, RADIO, NO.4

main86214-47010

9011906915

main90119-06915

11 parts on this diagram · 2 diagrams in section
